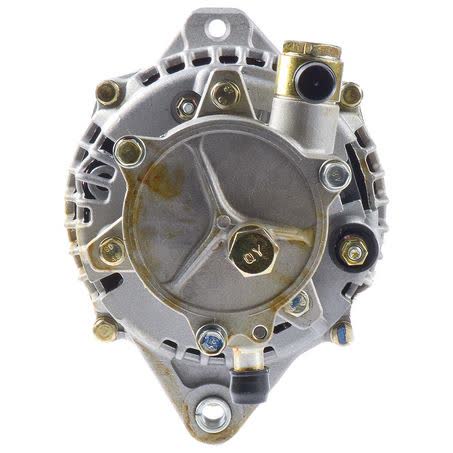

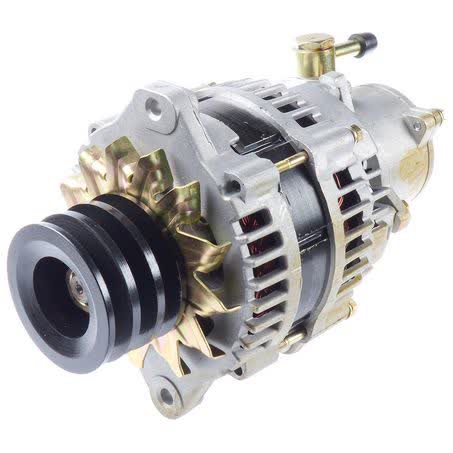

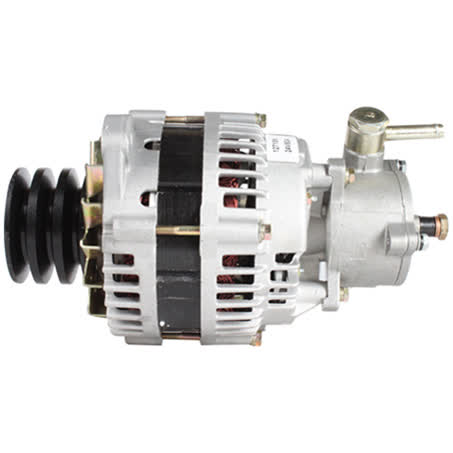

OEX Alternator 24V 80A Hitachi Style HXA092

The OEX Alternator HXA092 is a 24V, 80A unit in Hitachi style, supplied new and set up with an internal regulator. It is listed as a twin leg alternator mount with a 176mm centre-to-centre mount dimension, 75mm inside mounting legs, and a 10mm pivot hole diameter.

This alternator is specified with an 82mm outside pulley diameter, AAA pulley section, 19mm shaft dimension, and an 8mm adjusting hole diameter. Those measurements matter when matching brackets, pulleys, and mounting points on the vehicle or machine.

OEX states its products are sourced from market leading original equipment manufacturers and aftermarket suppliers, with factories using ISO9001 certified processes. The unit is backed by a 3 year passenger / 1 year commercial warranty, and the listed part number is HXA092.

Key Features

• 24V alternator with 80A power rating
• New unit with internal regulator
• Hitachi style alternator, suit unit make: Hitachi
• Twin leg alternator mount
• Part number: HXA092
• Warranty: 3yr passenger / 1yr commercial

Specifications

• Voltage: 24V
• Power rating: 80A
• Type: Alternator
• Unit of measure: Each
• New / remanufactured: New
• Regulator type: Internal
• Alternator mount: Twin leg
• Inside mounting legs: 75mm

Fitment guidance

• Listed as suitable for Hitachi unit make
• Fitment data includes CASE applications such as CX210B, CX225, CX225SR, CX235CSR, CX240B and CX250C
• Fitment data includes ISUZU ELF and ISUZU FORWARD F applications
• Fitment data includes MAZDA TITAN applications
• Fitment data includes TOYOTA DYNA 200 applications
• Fitment data includes UD Nissan Diesel Condor and MK Series applications
• Fitment data includes UD Trucks Condor applications

Application and Buying Notes

Before ordering, compare the part number HXA092 and the alternator style against the unit currently fitted to the vehicle or machine. The key matching points for this unit are 24V, 80A, Hitachi style, internal regulator, twin leg mount, and the stated dimensions of 176mm centre to centre, 75mm inside mounting legs, 10mm pivot hole, and 8mm adjusting hole.

The pulley details also need checking, especially where the existing drive arrangement is specific. This alternator is listed with an 82mm outside pulley diameter, AAA pulley section, and a 19mm shaft dimension, so it should only be considered where those measurements and the mounting layout line up with the original unit.

For fitment, use the vehicle listing as a guide rather than a guarantee. The supplied applications cover a range of CASE, ISUZU, MAZDA, TOYOTA and UD Nissan Diesel / UD Trucks models, but the safest check is always the alternator part number, mount type, regulator type, and physical dimensions on the vehicle already fitted.

If the current alternator is damaged or unreadable, measure the mounting ears, pivot hole, adjusting hole, and pulley before buying. That approach is especially important on commercial and industrial applications, where similar-looking alternators can differ in mount spacing, pulley section, or shaft size even when the voltage and amperage appear similar.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number HXA092 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type ALTERNATOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Inside Mounting Legs 75mm, Pivot Hole Diameter 10, Pulley Outside Diameter 82mm, Regulator Type Internal, Voltage 24, Mount Cnt to Cnt 176mm, Shaft Dimension 19.

Additional published details for cross-checking include Product Group 2 ALTERNATORS, Part No. HXA092, Brand OEX, Description OEX Alternator 24V 80A Hitachi Style, Adjusting Hole Diameter 8, Pin Code IR49, Power Rating (Amp) 80, Pulley Section AAA, Suits Unit Make Hitachi.

OEX Alternator 24V 80A Hitachi Style. Part number HXA092 should be checked first. Listed voltage is 24. Listed output rating is 80. These details form the core reference points used by parts interpreters when confirming the correct replacement.

Mount style is Twin Leg. Regulator type is Internal. Pulley configuration is AAA. Those physical and electrical details should line up with the original unit before the replacement is approved for fitment.

For part number HXA092, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a alternator in workshop, fleet, trade, agricultural, or construction service, the listed voltage 24 and output 80 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include CASE CX210B, CASE CX210B 2007, CASE CX225, CASE CX225 2005, ISUZU ELF, ISUZU ELF 1985. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

The listed warranty is 3yr Passenger 1yr Commercial. Warranty terms should be considered alongside correct application and part identification, as warranty does not replace fitment confirmation.

Compatibility note: Confirm fitment by matching part number HXA092, Hitachi style, 24V, 80A, internal regulator, twin leg mounting, and the stated dimensions before purchase. Vehicle listings should be checked against the alternator currently fitted, as similar applications can use different mount or pulley specifications.

FAQ

What is the part number for this alternator?

The listed part number is HXA092.

Is this alternator new or remanufactured?

It is listed as new.

What voltage and amperage does it have?

It is a 24V alternator with an 80A power rating.

What type of regulator does it use?

It uses an internal regulator.

What mounting details are provided?

The unit is listed as a twin leg alternator mount with 176mm centre-to-centre mount spacing, 75mm inside mounting legs, a 10mm pivot hole diameter, and an 8mm adjusting hole diameter.

What warranty is listed?

The listed warranty is 3 years for passenger use and 1 year for commercial use.
