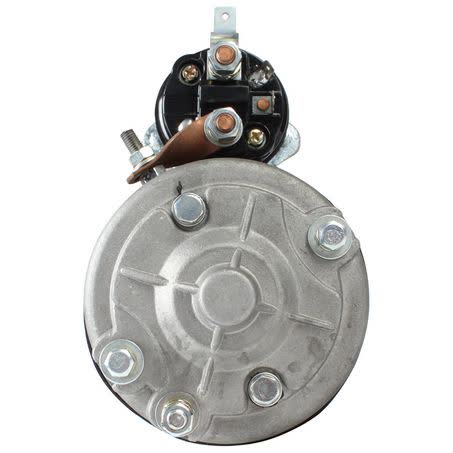

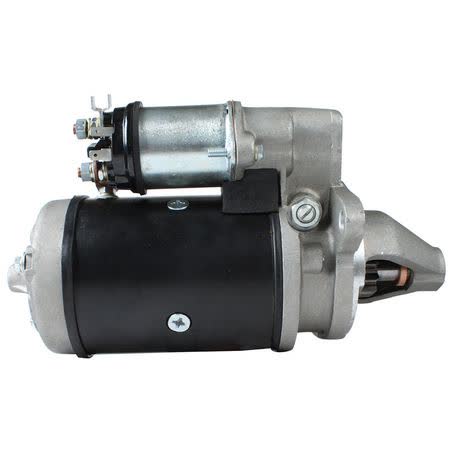

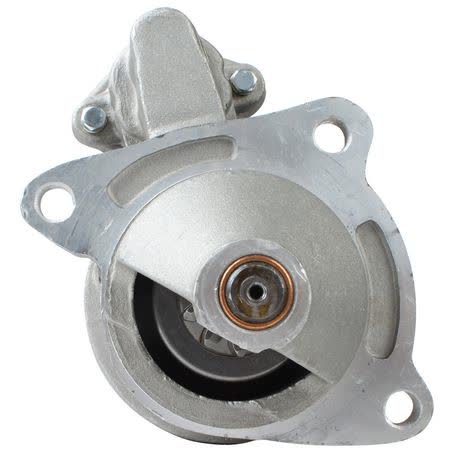

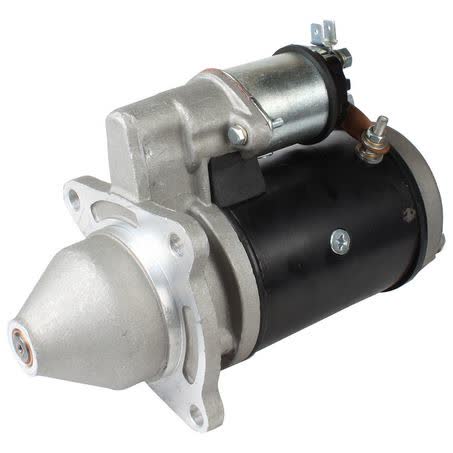

OEX Starter Motor 12V 10TH CW Lucas Style LXS9304

The OEX Starter Motor LXS9304 is a 12V, clockwise rotating starter motor with 10 teeth, built in a Lucas style and listed with a 2kW power rating. It is a new unit with a 3 hole starter mount type, a 92mm flange diameter, and a Ford mount note, so checking the existing starter configuration before purchase is important.

Key dimensions include 146mm mount centres A, 103mm mount centres B, 103mm mount centres C, a 12mm mount hole diameter, and an overall length of 310mm. The pinion sits 28mm at rest, the pinion diameter is 40mm, and the unit weighs 11.8kg, all of which are useful checks when matching an existing application.

This starter is listed as suit unit make Lucas and is identified under part number LXS9304. OEX states its products are sourced from market leading original equipment manufacturers and aftermarket suppliers, produced in ISO certified factories, and supported by a 3 year passenger / 1 year commercial warranty.

Key Features

• 12V starter motor
• 10 tooth pinion
• Clockwise rotation
• 2kW power rating
• New unit
• 3 hole starter mount

Specifications

• Part No.: LXS9304
• Brand: OEX
• Type: Starter Motor
• Voltage: 12V
• Rotation: CW
• Number of Teeth: 10
• Power Rating: 2kW
• Suits Unit Make: Lucas

Confirmed application references

• JCB 2CX4
• JCB 406
• Massey Ferguson 154
• Massey Ferguson 234
• Massey Ferguson 254
• Massey Ferguson 360
• Massey Ferguson MF 1080
• Massey Ferguson MF 134

Application and Buying Notes

Before ordering, compare the part number LXS9304, the 12V rating, clockwise rotation, and the 10 tooth pinion against the starter already fitted to the machine. The 3 hole mount type, 92mm flange diameter, and 146mm / 103mm / 103mm mount centre measurements are the practical checks that help confirm the replacement is the same style and pattern.

The note for a Ford mount and the Lucas style description matter because starter housings and bolt patterns need to match the application closely. If the existing unit differs in mount centres, hole diameter, flange diameter, or overall length of 310mm, the starter should be checked again before installation.

For buyers working on equipment rather than light vehicles, the listed application references include JCB, Massey Ferguson, Mustang, and Ursus models. That is useful guidance, but the safest confirmation remains the actual part number and the measurements listed here, especially where older machinery may have been repaired or altered over time.

The 2kW power rating and 11.8kg weight indicate this is a substantial starter motor, so handling and fit checking are worth taking seriously. If you are matching by sample or removing a worn unit, comparing the pinion diameter of 40mm and the pinion at rest measurement of 28mm can help avoid ordering the wrong configuration.

This is a new starter motor, not a remanufactured unit, and it carries a 3 year passenger / 1 year commercial warranty. That gives a clear ownership period to note when the unit is being bought for a machine used in either private or commercial service.

OEX also states the product comes from ISO certified factories and from recognised OEM and aftermarket suppliers. That is useful reassurance, but it does not replace checking the physical dimensions, rotation, and tooth count against the starter being removed.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number LXS9304 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Mount Centres A 146mm, Mount Centres C 103mm, Number of Teeth 10, Pinion at Rest 28mm, Power Rating 2kW, Suits Unit Make Lucas, Note Ford mount.

Additional published details for cross-checking include New / Reman. New, Wet / Dry Clutch Dry, Product Group 2 STARTER MOTORS, Part No. LXS9304, Brand OEX, Description OEX Starter Motor 12V 10Th CW Lucas Style, Flange Diameter 92mm, Mount Centres B 103mm, Mount Hole Diameter 12.

OEX Starter Motor 12V 10Th CW Lucas Style. Part number LXS9304 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number LXS9304, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include JCB 2CX4, JCB 2CX4 2012, JCB 406, JCB 406 2010, MASSEY FERGUSON 154, MASSEY FERGUSON 154 1973. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

The listed warranty is 3yr Passenger 1yr Commercial. Warranty terms should be considered alongside correct application and part identification, as warranty does not replace fitment confirmation.

Compatibility note: Confirm fitment by part number LXS9304 and by matching the 12V, 10 tooth, clockwise, 3 hole starter configuration with the listed mount centres, flange diameter, and overall length before purchase.

FAQ

What is the part number for this starter motor?

The part number is LXS9304.

Is this starter motor 12 volt?

Yes. It is listed as 12V.

What rotation does it have?

It is clockwise rotation, shown as CW.

How many teeth does the pinion have?

The starter is listed with 10 teeth.

Is this a new or remanufactured unit?

It is listed as a new starter motor.

What warranty is listed?

The listed warranty is 3 year passenger and 1 year commercial.
