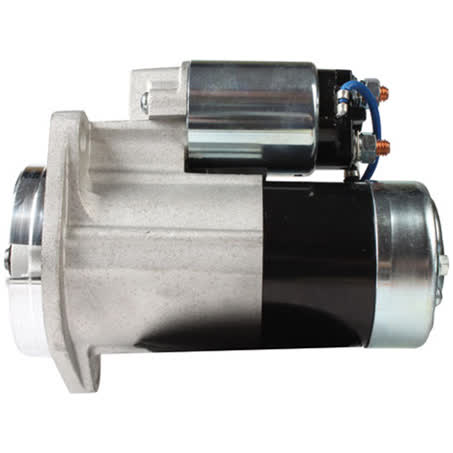

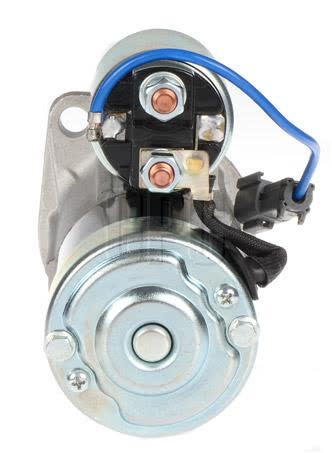

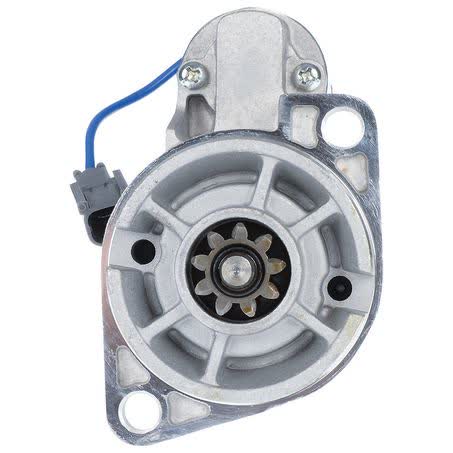

OEX Starter Motor 12V 9 Tooth CW Mitsubishi Style MXS813

The OEX MXS813 starter motor is a new 12V unit with 9 teeth, clockwise rotation and a 1.2kW power rating. It is listed as Mitsubishi style and suits Mitsubishi unit applications, with a 2 hole starter mount and 110mm mount centres.

Key dimensions include a 82mm flange diameter, 185mm overall length, 29mm pinion diameter and 21mm pinion at rest. The mount hole diameter is 10.5mm and the unit weight is 3.42kg, which gives a practical reference point when comparing against the original starter motor.

This starter motor is supplied as a new rotating electrical component and is backed by a 3 year passenger / 1 year commercial warranty. The part number is MXS813, and that identifier should be matched carefully against the vehicle application and removed unit before ordering.

Key Features

• 12V starter motor
• 9 tooth pinion
• Clockwise rotation
• 1.2kW power rating
• 2 hole starter mount
• New unit

Specifications

• Brand: OEX
• Product type: Starter motor
• Voltage: 12V
• Power rating: 1.2kW
• Rotation: CW
• Number of teeth: 9
• Starter mount type: 2 hole
• Mount centres: 110mm

Known application guidance

• Suits Mitsubishi unit make
• Listed for Mitsubishi industrial forklifts
• Listed fitment also includes Komatsu industrial applications
• Listed fitment also includes Nissan industrial forklift applications
• Listed fitment also includes TCM applications
• Examples shown include Komatsu FG10-20, Mitsubishi industrial forklifts, Nissan industrial forklift and TCM FCG15T-3/-4

Application and Buying Notes

Before ordering, compare the part number MXS813 with the original starter and check that the unit is a 12V clockwise starter with 9 teeth and a 2 hole mount. Those are the most useful identifiers here, along with the 110mm mount centres and 82mm flange diameter.

Physical dimensions matter on starter motors, especially where the pinion and mounting pattern must match exactly. Check the 29mm pinion diameter, 21mm pinion at rest, 10.5mm mount hole diameter and 185mm overall length against the removed unit to reduce the risk of a mismatch.

The listed application data covers Mitsubishi industrial forklifts and also shows Komatsu, Nissan industrial forklift and TCM applications. Even where a make appears in the fitment list, the vehicle should still be checked against the starter’s dimensions, tooth count and rotation before purchase.

Warranty coverage is 3 year passenger and 1 year commercial. If the vehicle is used in commercial service, factor that warranty term into your decision and make sure the application is matched correctly, as starter motors need the right drive and mounting setup for the job.

This is a dry clutch starter motor and a new unit, so it is intended as a direct replacement style component rather than a remanufactured part. The weight of 3.42kg can also be useful when comparing the replacement to the original unit during inspection or bench comparison.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number MXS813 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Mount Centres A 110mm, Number of Teeth 9, Pinion at Rest 21mm, Power Rating 1.2kW, Suits Unit Make Mitsubishi, Item Type Starter Motor, Starter Mount Type 2 Hole.

Additional published details for cross-checking include Weight 3.42kg, Product Group 1 ROTATING ELECTRICAL, Part No. MXS813, Brand OEX, Description OEX Starter Motor 12V 9Th CW Mitsubishi Style, Flange Diameter 82mm, Mount Hole Diameter 10.5, Overall Length 185mm, Pinion Diameter 29mm, Rotation CW.

OEX Starter Motor 12V 9Th CW Mitsubishi Style. Part number MXS813 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number MXS813, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Compatibility note: Please confirm compatibility using part number MXS813, the 12V clockwise 9 tooth specification, and the mounting measurements before ordering. Listed fitment should always be checked against the vehicle, engine and the removed starter motor.

FAQ

What is the part number for this starter motor?

The part number listed is MXS813. For this listing, part number MXS813 is the main reference point. Listed voltage is 12. Published fitment references include KOMATSU DT11, KOMATSU FG10-20, KOMATSU FG10-20 2007. These details should still be checked against the original unit before ordering.

Is this a 12V or 24V starter motor?

It is a 12V starter motor. For this listing, part number MXS813 is the main reference point. Listed voltage is 12. Published fitment references include KOMATSU DT11, KOMATSU FG10-20, KOMATSU FG10-20 2007. These details should still be checked against the original unit before ordering.

How many teeth does the pinion have?

The pinion has 9 teeth. For this listing, part number MXS813 is the main reference point. Listed voltage is 12. Published fitment references include KOMATSU DT11, KOMATSU FG10-20, KOMATSU FG10-20 2007. These details should still be checked against the original unit before ordering.

What rotation does this starter motor use?

It is clockwise rotation, listed as CW. For this listing, part number MXS813 is the main reference point. Listed voltage is 12. Published fitment references include KOMATSU DT11, KOMATSU FG10-20, KOMATSU FG10-20 2007. These details should still be checked against the original unit before ordering.

What warranty is provided?

The warranty is 3 years for passenger use and 1 year for commercial use. For this listing, part number MXS813 is the main reference point. Listed voltage is 12. Published fitment references include KOMATSU DT11, KOMATSU FG10-20, KOMATSU FG10-20 2007. These details should still be checked against the original unit before ordering.

What should be checked before fitting?

Check part number MXS813, 12V voltage, clockwise rotation, 9 tooth count, 2 hole mount, 110mm mount centres and the listed dimensions against the original unit and vehicle application. For this listing, part number MXS813 is the main reference point. Listed voltage is 12. Published fitment references include KOMATSU DT11, KOMATSU FG10-20, KOMATSU FG10-20 2007. These details should still be checked against the original unit before ordering.
