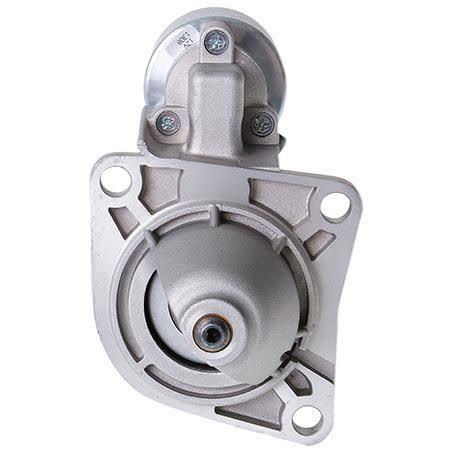

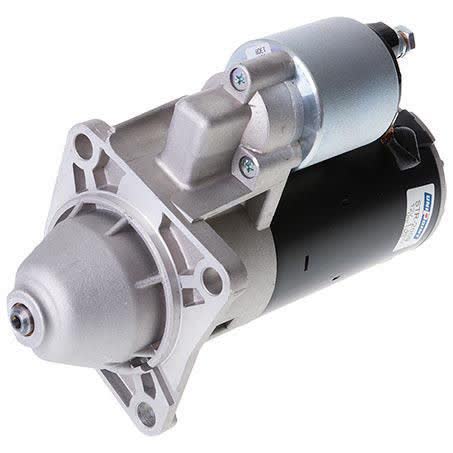

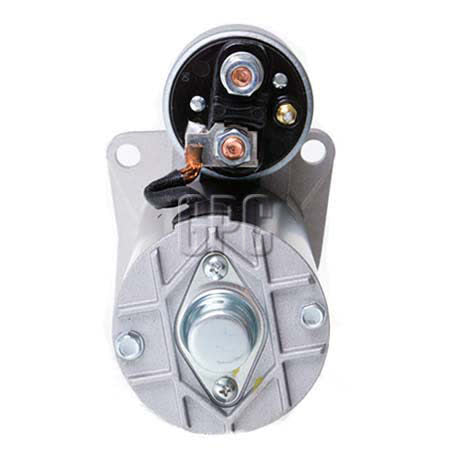

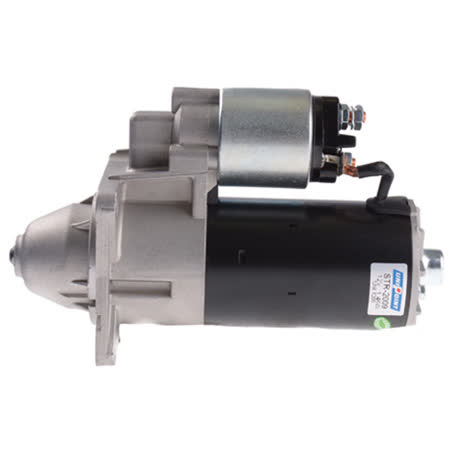

OEX Starter Motor 12V 10 Tooth CW Autolite Style AXS959

The OEX Starter Motor AXS959 is a 12V, clockwise-rotation starter with a 10-tooth pinion and an Autolite-style application. It is a new unit, designed as a 3-hole starter with 115mm mount centres A, 82mm mount centres B, 82mm mount centres C, and a 76mm flange diameter.

This starter is rated at 1.4kW and weighs 3.6kg. Key dimensions include a 240mm overall length, 26mm pinion diameter, 14mm pinion at rest, and 11mm mount hole diameter. Those measurements are important when checking physical clearance and mounting layout before ordering.

OEX states that its products are sourced from market leading Original Equipment Manufacturers and aftermarket suppliers, with production from ISO certified factories. The unit is backed by a 3 year passenger / 1 year commercial warranty, which gives added confidence when selecting a replacement starter for the correct application.

Key Features

• 12V starter motor
• 10-tooth pinion
• Clockwise rotation
• Autolite style
• New unit
• 3-hole starter mount

Specifications

• Part number: AXS959
• Brand: OEX
• Product type: Starter motor
• Voltage: 12V
• Rotation: CW
• Number of teeth: 10
• Power rating: 1.4kW
• Starter mount type: 3 hole

Fitment Guidance

• Listed fitment includes Ford Transit applications.
• Fitment data supplied includes Ford Transit references from 1991 through to 2000.
• Confirm the vehicle application against the part number AXS959 and the starter measurements before ordering.

Application and Buying Notes

For a starter motor, the safest check is the combination of part number, mount style, and key dimensions. This unit is identified as AXS959, with a 12V electrical setup, 10 teeth, clockwise rotation, and a 3-hole mounting pattern. If any of those details differ from the vehicle or the removed starter, it should be treated as a mismatch until verified.

The physical measurements matter just as much as the electrical specification. The 76mm flange diameter, 115mm mount centres A, 82mm mount centres B, 82mm mount centres C, 11mm mount hole diameter, 240mm overall length, and 26mm pinion diameter are the useful checkpoints when comparing to the original unit. The 14mm pinion at rest measurement can also help when checking starter nose and pinion positioning.

The 1.4kW rating and dry clutch note are useful for identifying the intended starter setup, but they do not replace a direct match on the vehicle application. If the vehicle is a Ford Transit, the supplied fitment references run through the 1991 to 2000 model range, so it is still important to compare the exact application details against the removed part rather than relying on the model name alone.

This starter is a new OEX unit and carries a 3 year passenger / 1 year commercial warranty. That warranty period is helpful, but it does not override the need to confirm the Autolite style, clockwise rotation, and mounting dimensions before purchase. A clean match on those details is the best way to reduce delays and returns.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number AXS959 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Mount Centres A 115mm, Mount Centres C 82mm, Number of Teeth 10, Pinion at Rest 14mm, Power Rating 1.4kW, Suits Unit Make Autolite, New / Reman. New.

Additional published details for cross-checking include Wet / Dry Clutch Dry, Product Group 2 STARTER MOTORS, Part No. AXS959, Brand OEX, Description OEX Starter Motor 12V 10Th CW Autolite Style, Flange Diameter 76mm, Mount Centres B 82mm, Mount Hole Diameter 11, Overall Length 240mm.

OEX Starter Motor 12V 10Th CW Autolite Style. Part number AXS959 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number AXS959, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include FORD TRANSIT, FORD TRANSIT 1991, FORD TRANSIT 1992, FORD TRANSIT 1993. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

The listed warranty is 3yr Passenger 1yr Commercial. Warranty terms should be considered alongside correct application and part identification, as warranty does not replace fitment confirmation.

Compatibility note: Please confirm fitment using part number AXS959, the Autolite style application, the 12V clockwise configuration, and the listed mounting and pinion dimensions before purchasing.

FAQ

What vehicle fitment is listed for this starter motor?

The supplied fitment information includes Ford Transit applications, with references from 1991 through to 2000. Always confirm the exact application against the part number AXS959 and the starter measurements.

Is this starter motor new or remanufactured?

This is a new starter motor.

What are the main electrical and rotation details?

It is a 12V starter motor with clockwise rotation and a 1.4kW power rating.

What mounting details are provided?

The starter uses a 3-hole mount, with mount centres A at 115mm, mount centres B at 82mm, mount centres C at 82mm, and a 76mm flange diameter.

What pinion and size details are listed?

The unit has 10 teeth, a 26mm pinion diameter, a 14mm pinion at rest, an overall length of 240mm, and mount hole diameters of 11mm.

What warranty is supplied with this OEX starter motor?

The warranty is 3 years for passenger use and 1 year for commercial use.
