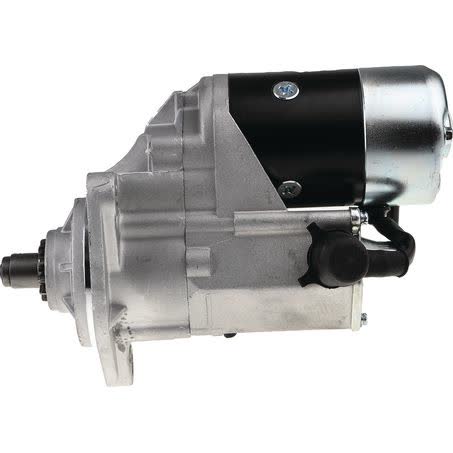

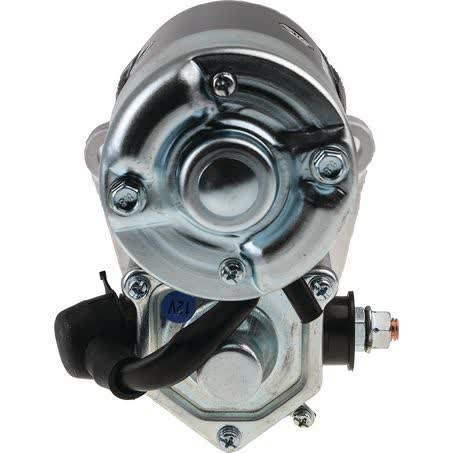

OEX Starter Motor 12V 11T CW Nikko Style NXS609

The OEX Starter Motor NXS609 is a new 12V unit with 11 teeth, clockwise rotation, and a Nikko style application. It is listed with a 2.5kW power rating, a 3 hole starter mount, and dry clutch use, so it suits buyers comparing the starter against existing mounting and engagement details rather than relying on appearance alone.

Key dimensions matter on starter motors, and this unit lists mount centres A at 135mm, mount centres B at 110mm, mount centres C at 110mm, a 105mm flange diameter, and a 295mm overall length. It also has a 40mm pinion diameter, 37mm pinion at rest, and 14mm mount hole diameter, all of which are useful checks when matching to an existing installation.

OEX lists this starter as sourced from market leading Original Equipment Manufacturers and aftermarket suppliers, with production from ISO certified factories and a comprehensive nationwide warranty. The warranty listed here is 3 years for passenger use and 1 year for commercial use, which gives the buyer clear cover information at the point of selection.

Key Features

• 12V starter motor
• 11-tooth pinion
• Clockwise rotation
• Nikko style application
• 3 hole starter mount
• 2.5kW power rating

Specifications

• Brand: OEX
• Part number: NXS609
• Type: Starter motor
• Voltage: 12V
• Rotation: CW
• Number of teeth: 11
• Power rating: 2.5kW
• Suits unit make: Nikko

Fitment information supplied for this part

• Listed fitment families include Deutz-Fahr Agroprima, Iseki 9000, Isuzu 6BD1, Isuzu Elf, Land Rover 110/127, Land Rover 88/109, and TCM Various.
• The fitment data also references broader groups such as Isuzu F, F/J Series, Forward F, Journey, L Series, N, S Series, and S/V Series.
• Sample applications shown include Deutz-Fahr Agroprima 1989 to 1995, Iseki 9000 1982 to 1988, Isuzu 6BD1 1978, Isuzu Elf 1973 to 1981, Land Rover 110/127 1984 to 1991, Land Rover 88/109 1982 to 1983, and TCM Various 1980, 1989 to 1993.

Application and Buying Notes

Before ordering, compare the part number NXS609, the 12V electrical rating, and the 11-tooth CW specification against the starter you are replacing. The 3 hole mounting pattern, 135mm mount centres A, 110mm mount centres B and C, and 105mm flange diameter are the most practical checks for confirming whether the physical fit lines up with the existing setup.

If you are comparing starters on an older machine or commercial vehicle, the overall length of 295mm, pinion diameter of 40mm, and pinion at rest of 37mm can help confirm that the replacement is dimensionally similar. The 2.5kW power rating and 8.12kg weight are also useful reference points when matching the original component.

The fitment list covers multiple makes and model families, including Deutz-Fahr, Iseki, Isuzu, Land Rover, and TCM. Even where a model family appears in the list, you should still confirm the mounting arrangement and application details against your existing starter, because starter motors can vary within the same model range.

Warranty cover is listed as 3 years for passenger use and 1 year for commercial use. If the vehicle is used commercially, that shorter cover period is the relevant one, so it is worth checking the intended application before purchase.

This is a new starter motor sold each, not a remanufactured unit. If you are comparing options, that can matter for pricing, expected presentation, and how closely you want the replacement to match the original unit’s dimensions and specification.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number NXS609 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Mount Centres A 135mm, Mount Centres C 110mm, Number of Teeth 11, Pinion at Rest 37mm, Power Rating 2.5kW, Suits Unit Make Nikko, Note For Wet Clutch use DRX72010.

Additional published details for cross-checking include Starter Mount Type 3 Hole, Weight 8.12kg, Product Group 1 ROTATING ELECTRICAL, Part No. NXS609, Brand OEX, Description OEX Starter Motor 12V 11Th CW Nikko Style, Flange Diameter 105mm, Mount Centres B 110mm, Mount Hole Diameter 14, Overall Length 295mm.

OEX Starter Motor 12V 11Th CW Nikko Style. Part number NXS609 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number NXS609, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include DEUTZ-FAHR AGROPRIMA, DEUTZ-FAHR AGROPRIMA 1989, DEUTZ-FAHR AGROPRIMA 1990, DEUTZ-FAHR AGROPRIMA 1991, ISEKI 9000, ISEKI 9000 1982. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

Compatibility note: Confirm fitment using part number NXS609, the 12V CW 11-tooth specification, the 3 hole mount, and the listed dimensions before ordering. If the vehicle uses a wet clutch, the listed note directs you to DRX72010 instead.

FAQ

What voltage is this starter motor?

It is a 12V starter motor.

How many teeth does the pinion have?

The starter is listed with 11 teeth.

What is the rotation direction?

Rotation is listed as clockwise, shown as CW.

Is this starter motor new or remanufactured?

It is listed as new, not remanufactured.

What is the clutch note for this part?

This part is listed for dry clutch use. The note says that for wet clutch use, DRX72010 should be used.

What warranty is listed?

The listed warranty is 3 years for passenger use and 1 year for commercial use.
