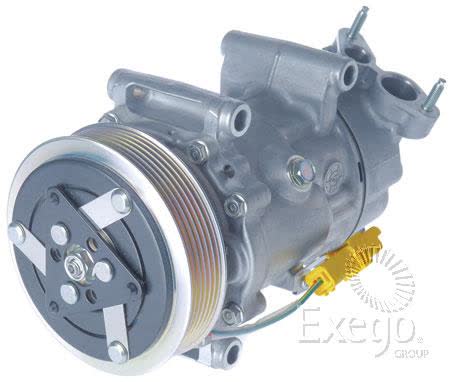

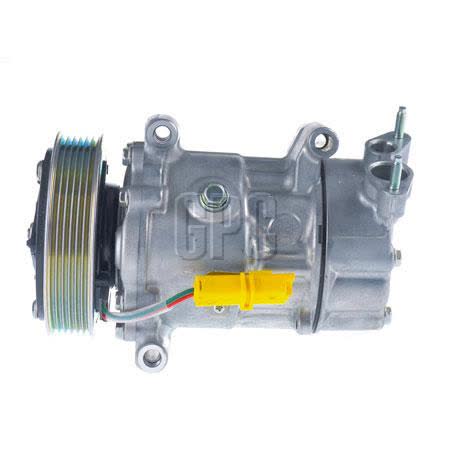

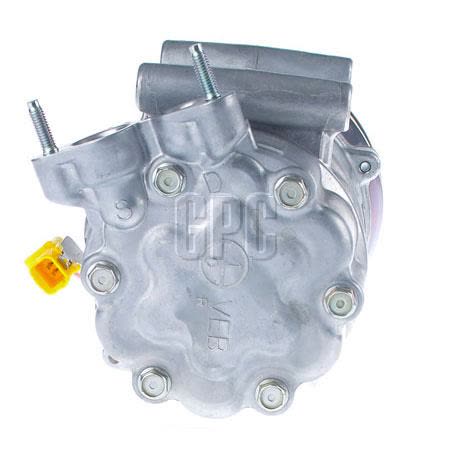

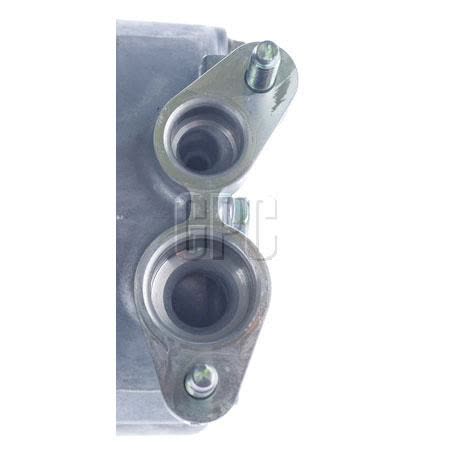

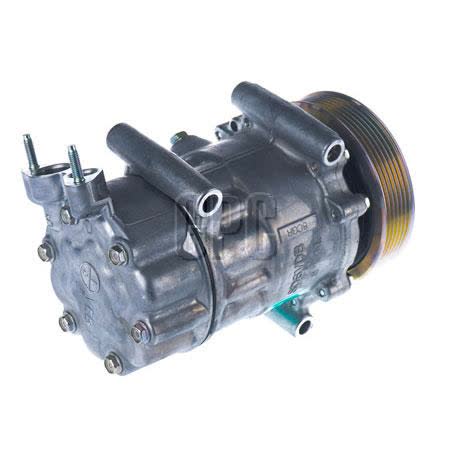

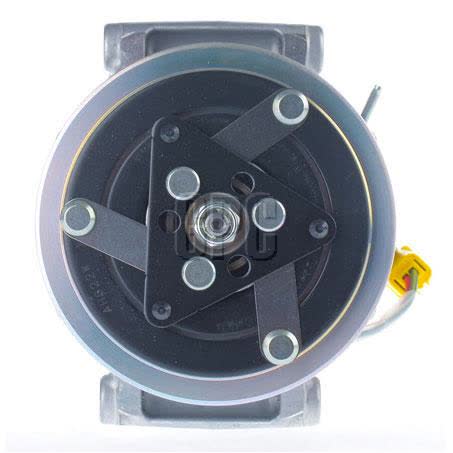

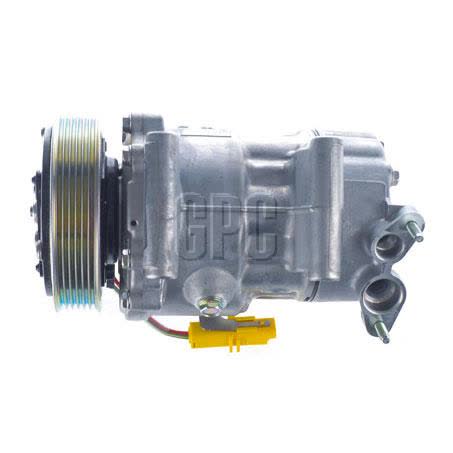

Sanden Air Conditioning Compressor 12V Direct Mount SD6V12 CXS1940

The Sanden SD6V12 air conditioning compressor is a 12V direct mount unit supplied under part number CXS1940. It is listed with a vertical special pad fitting type, a 6 groove pulley section, and a 119mm clutch diameter, which are the key details to check when matching an A/C compressor to the vehicle and existing bracket setup.

This compressor is recorded with OE number 1940 and a one year warranty. Other useful service details include SP 10 oil type, 135ml oil capacity, a gauge line measurement of 56.55mm, and a weight of 5.64kg, all of which help when comparing against the replacement unit already in the vehicle.

Application information supplied with the part identifies Peugeot 206 1.4L from 01/1997 to 10/2010 and Peugeot 307 2.0L from 01/2001 to 12/2005. The broader fitment data also references Citroen Berlingo and Peugeot models, so it is important to confirm the exact vehicle, engine, and mounting arrangement before ordering.

Key Features

• Sanden SD6V12 series compressor
• 12V direct mount design
• Part number CXS1940
• OE number 1940
• 6 groove pulley section
• 119mm clutch diameter

Specifications

• Type: Air conditioning compressor
• Brand: Sanden
• Unit of measure: Each
• Compressor mounting: Direct mount
• Series: SD6V12
• Voltage: 12V
• Fitting type: Vertical special pad
• Pulley section: 6 groove

Known application details

• Peugeot 206 1.4L, 01/1997 - 10/2010
• Peugeot 307 2.0L, 01/2001 - 12/2005
• Fitment data also references Citroen Berlingo and Peugeot model applications
• Confirm the compressor mounting, pulley layout, clutch diameter, and OE/part number against the vehicle before purchase

Application and Buying Notes

When replacing an A/C compressor, the part number and physical configuration matter just as much as the model name. In this case the key identifiers are CXS1940, OE number 1940, SD6V12 series, 12V operation, and the direct mount arrangement, along with the vertical special pad fitting type and 6 groove pulley section.

The listed clutch diameter is 119mm and the gauge line is 56.55mm, so the existing unit should be checked carefully for a matching layout before ordering. A compressor with the wrong pulley section, mounting style, or clutch size may not suit the vehicle even if it appears similar from the outside.

The supplied application detail supports Peugeot 206 1.4L and Peugeot 307 2.0L within the stated date ranges, while the broader fitment data also points to Citroen Berlingo and other Peugeot references. That makes the exact vehicle build, engine, and existing compressor identification the safest way to confirm suitability.

Weight is listed at 5.64kg, and the unit is supplied as each. If you are comparing against a removed part, use the mounting pattern, pulley count, and OE number first, then confirm the compressor body and head code match the vehicle layout before finalising the order.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number CXS1940 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type AIR CONDITIONING COMPRESSOR, Unit of Measure EACH, Warranty One Year, Compressor Mounting Direct Mount, Original Equipment Number 1940, Series SD6V12, Voltage 12, Gauge Line 56.55mm, Dust Cover Y/N No, Weight 5.64kg.

Additional published details for cross-checking include Product Group 1 COOLING, Part No. CXS1940, Brand SANDEN, Description Sanden Air Conditioning Compressor 12V Direct Mount SD6V12, Clutch Diameter 119mm, Fitting Type Vertical Special Pad, Pulley Section 6 Groove, Suits Unit Make Sanden, Note Oil Type SP 10, Oil Capacity 135ml.

Sanden Air Conditioning Compressor 12V Direct Mount SD6V12. Part number CXS1940 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

Pulley configuration is 6 Groove. Those physical and electrical details should line up with the original unit before the replacement is approved for fitment.

For part number CXS1940, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a air conditioning compressor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Compatibility note: Please confirm fitment using the part number CXS1940, OE number 1940, and the vehicle’s compressor mounting, pulley section, clutch diameter, and engine application before buying.

FAQ

What is the part number for this compressor?

The listed part number is CXS1940. For this listing, part number CXS1940 is the main reference point. Listed voltage is 12. Published fitment references include CITROEN BERLINGO, CITROEN BERLINGO 1999, CITROEN BERLINGO 2000. These details should still be checked against the original unit before ordering.

What voltage does this compressor use?

It is a 12V compressor. For this listing, part number CXS1940 is the main reference point. Listed voltage is 12. Published fitment references include CITROEN BERLINGO, CITROEN BERLINGO 1999, CITROEN BERLINGO 2000. These details should still be checked against the original unit before ordering.

Which vehicles are specifically listed for this part?

The supplied application details list Peugeot 206 1.4L from 01/1997 to 10/2010 and Peugeot 307 2.0L from 01/2001 to 12/2005. For this listing, part number CXS1940 is the main reference point. Listed voltage is 12. Published fitment references include CITROEN BERLINGO, CITROEN BERLINGO 1999, CITROEN BERLINGO 2000. These details should still be checked against the original unit before ordering.

What mounting style does it use?

It is a direct mount compressor with a vertical special pad fitting type. For this listing, part number CXS1940 is the main reference point. Listed voltage is 12. Published fitment references include CITROEN BERLINGO, CITROEN BERLINGO 1999, CITROEN BERLINGO 2000. These details should still be checked against the original unit before ordering.

What pulley and clutch details are listed?

The compressor has a 6 groove pulley section and a 119mm clutch diameter. For this listing, part number CXS1940 is the main reference point. Listed voltage is 12. Published fitment references include CITROEN BERLINGO, CITROEN BERLINGO 1999, CITROEN BERLINGO 2000. These details should still be checked against the original unit before ordering.

What oil specification is noted for this compressor?

The noted oil type is SP 10 and the listed oil capacity is 135ml. For this listing, part number CXS1940 is the main reference point. Listed voltage is 12. Published fitment references include CITROEN BERLINGO, CITROEN BERLINGO 1999, CITROEN BERLINGO 2000. These details should still be checked against the original unit before ordering.
