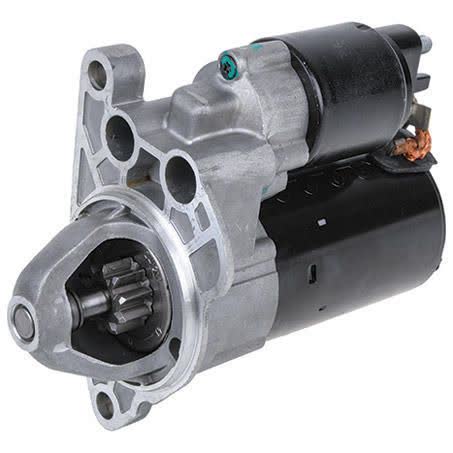

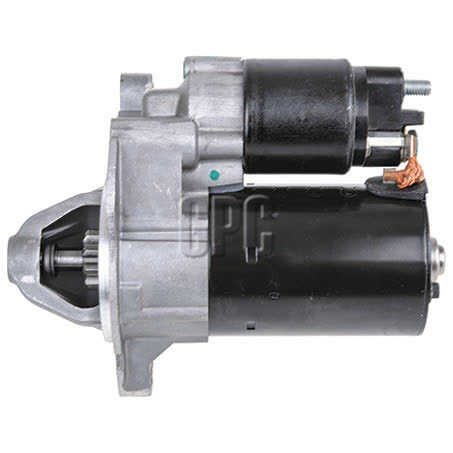

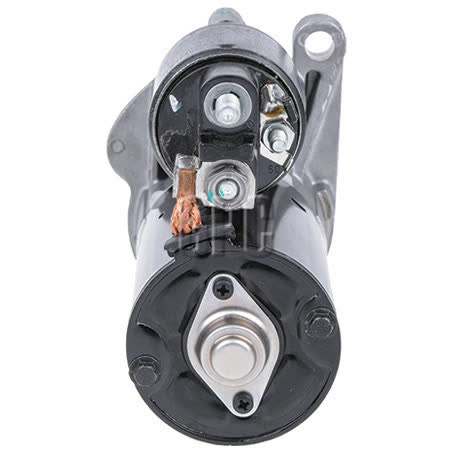

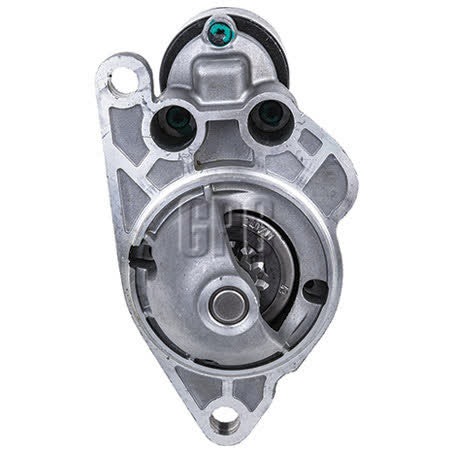

Bosch Starter Motor 12V 10 Tooth CW F004A94015

Bosch starter motor, 12V, 10 tooth, clockwise rotation, part number F004A94015. This unit is a new starter motor with a 1.1kW power rating, a 76mm flange diameter, and a 2 hole starter mount type with 132mm mount centres.

It is listed for automatic transmission use and a dry clutch application. The pinion at rest is 16mm, the pinion diameter is 28mm, and the overall length is 197mm, so physical dimensions need to be checked carefully against the original starter before ordering.

The supplied application detail identifies Ford Courier, Explorer, and Mazda Bravo automatic models with the XZA engine. Where fitment is being matched by vehicle, the part number F004A94015, 12V rating, 10 tooth drive, and clockwise rotation are the key identifiers to confirm first.

Key Features

• 12V Bosch starter motor
• 10 tooth, clockwise rotation
• 1.1kW power rating
• New unit
• For automatic transmission
• 2 hole starter mount type

Specifications

• Brand: Bosch
• Type: Starter motor
• Voltage: 12V
• Rotation: CW
• Number of teeth: 10
• Power rating: 1.1kW
• Part number: F004A94015
• Starter mount type: 2 hole

Vehicle fitment information

• Ford Courier automatic with XZA engine
• Ford Explorer automatic with XZA engine
• Mazda Bravo automatic with XZA engine
• Ford Courier 2005
• Ford Courier 2006

Application and Buying Notes

When comparing this starter motor to the unit being replaced, start with the part number F004A94015, then confirm the electrical and mechanical details: 12V, 10 tooth, clockwise rotation, 1.1kW output, 76mm flange diameter, and 132mm mount centres. These are the details most likely to determine whether the starter will physically and electrically match the vehicle.

The application note for automatic transmission and dry clutch use should be treated as important, not optional. A starter motor can look similar externally while still differing in pinion position, mounting pattern, or rotation, so the 2 hole mount type, 11mm mount hole diameter, and 197mm overall length should be checked against the original unit.

If the vehicle is one of the listed applications, the XZA engine reference is the strongest fitment clue provided. Even so, it is still best practice to compare the old starter’s label, tooth count, rotation, and mounting dimensions before fitting, especially where the vehicle has been modified, repaired previously, or fitted with non-standard components.

This starter is described as a new Bosch unit and carries a one year warranty. That gives useful buying context, but it does not replace fitment checking. For starters, exact matching of drive count, rotation, and mount pattern matters as much as vehicle make and model.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number F004A94015 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty One Year, Mount Centres A 132mm, Number of Teeth 10, Pinion at Rest 16mm, Power Rating 1.1kW, Suits Unit Make Bosch, Note For automatic transmission, New / Reman. New.

Additional published details for cross-checking include Wet / Dry Clutch Dry, Packaging width 13, Manufactured in South Africa, Product Group 1 ROTATING ELECTRICAL, Part No. F004A94015, Brand BOSCH, Description Bosch Starter Motor 12V 10Th CW, Flange Diameter 76mm, Mount Hole Diameter 11, Overall Length 197mm.

Bosch Starter Motor 12V 10Th CW. Part number F004A94015 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number F004A94015, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include FORD COURIER, FORD COURIER 2005, FORD COURIER 2006. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

Compatibility note: Confirm fitment by matching part number F004A94015, 12V rating, 10 tooth clockwise rotation, mount centres, and the stated automatic transmission/XZA engine application before purchase.

FAQ

What is the part number for this starter motor?

The part number is F004A94015. For this listing, part number F004A94015 is the main reference point. Listed voltage is 12. Published fitment references include FORD COURIER, FORD COURIER 2005, FORD COURIER 2006. These details should still be checked against the original unit before ordering.

What voltage is this starter motor?

It is a 12V starter motor. For this listing, part number F004A94015 is the main reference point. Listed voltage is 12. Published fitment references include FORD COURIER, FORD COURIER 2005, FORD COURIER 2006. These details should still be checked against the original unit before ordering.

How many teeth does the pinion have?

The pinion has 10 teeth. For this listing, part number F004A94015 is the main reference point. Listed voltage is 12. Published fitment references include FORD COURIER, FORD COURIER 2005, FORD COURIER 2006. These details should still be checked against the original unit before ordering.

Is the rotation clockwise or counter-clockwise?

The rotation is clockwise (CW). For this listing, part number F004A94015 is the main reference point. Listed voltage is 12. Published fitment references include FORD COURIER, FORD COURIER 2005, FORD COURIER 2006. These details should still be checked against the original unit before ordering.

What vehicles are listed for this starter motor?

The listed applications are Ford Courier, Ford Explorer, and Mazda Bravo automatic models with the XZA engine, with Ford Courier 2005 and 2006 also shown in the fitment data. For this listing, part number F004A94015 is the main reference point. Listed voltage is 12. Published fitment references include FORD COURIER, FORD COURIER 2005, FORD COURIER 2006. These details should still be checked against the original unit before ordering.

What mounting details should be checked before ordering?

Check the 2 hole starter mount type, 132mm mount centres, 11mm mount hole diameter, 76mm flange diameter, and 197mm overall length against the original starter. For this listing, part number F004A94015 is the main reference point. Listed voltage is 12. Published fitment references include FORD COURIER, FORD COURIER 2005, FORD COURIER 2006. These details should still be checked against the original unit before ordering.
