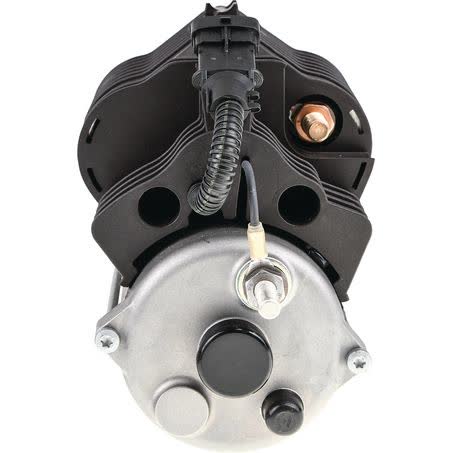

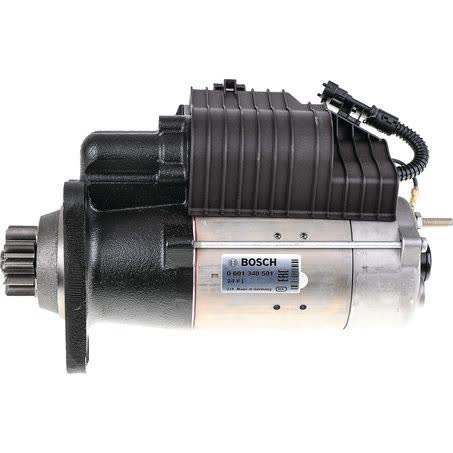

Bosch Starter Motor 24V 11 Tooth CW 0001340501

The Bosch Starter Motor 24V 11 Tooth CW, part number 0001340501, is a new rotating electrical unit with an 8.4kW power rating and clockwise rotation. It is listed as a 3 hole starter mount type with 126mm mount centres and a 381mm overall length, so the physical dimensions and mounting pattern need to match the machine before purchase.

This unit is specified for 24V systems and has 11 teeth, a 92mm flange diameter, a 56mm pinion diameter, and a pinion at rest measurement of 49mm. Those details are important when checking whether the starter will align correctly with the ring gear and mounting face on the application.

It is a Bosch starter motor designed for Bosch applications and supplied new, not remanufactured. The stated warranty is one year, and the unit of measure is each.

The product is listed for heavy equipment applications including Hitachi, Komatsu, Le Tourneau, Liebherr, and Terex O&K models in the supplied fitment data. Even where a make is shown, the exact model, year, and configuration should still be checked against the part number and the starter dimensions.

Key Features

• Bosch starter motor, part no. 0001340501
• 24V electrical system
• 11 tooth pinion
• Clockwise rotation
• 8.4kW power rating
• New unit, not remanufactured

Specifications

• Type: Starter motor
• Brand: Bosch
• Part No.: 0001340501
• Voltage: 24V
• Rotation: CW
• Number of teeth: 11
• Power rating: 8.4kW
• Starter mount type: 3 hole

Fitment guide

• Hitachi EH1700
• Hitachi EH3000
• Hitachi EH3500
• Hitachi EH4000
• Hitachi EH4500-2
• Hitachi EH5000ACII
• Komatsu 830E
• Le Tourneau D950

Application and Buying Notes

Before ordering, confirm the application with the part number 0001340501 and compare the mounting pattern to the starter’s 3 hole layout, 126mm mount centres, 16.5mm mount hole diameter, and 92mm flange diameter. Those are the most practical checks when matching a starter on heavy equipment.

The 24V rating is critical. A starter intended for a 24V system should not be assumed suitable for a different voltage setup, and the 8.4kW power rating should be checked against the machine’s original requirement where available.

The 11 tooth pinion, 56mm pinion diameter, and 49mm pinion at rest measurement all matter because starter engagement depends on the physical relationship between the starter and the ring gear. If the tooth count or pinion dimensions do not align, the part is not a safe fit.

The fitment list includes several large mining and earthmoving machines across Hitachi, Komatsu, Le Tourneau, Liebherr, and Terex O&K. Use that as a guide only, then verify the exact model, year, and configuration before fitting. A model family alone is not enough to confirm compatibility.

Because this is a Bosch starter motor supplied new, it is suitable for buyers who want a replacement unit rather than a remanufactured part. The one year warranty applies to the product as supplied, so keep the part number and purchase details with your records.

If you are replacing an existing starter, matching the rotation direction, mount style, overall length of 381mm, and the starter’s position / degree marking of links can save time and reduce the risk of a wrong-order return. Measuring the old unit before fitting is still the safest approach.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number 0001340501 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty One Year, Mount Centres A 126mm, Mount Centres C 126mm, Number of Teeth 11, Pinion at Rest 49mm, Power Rating 8.4kW, Suits Unit Make Bosch, New / Reman. New.

Additional published details for cross-checking include Wet / Dry Clutch Wet or Dry, Number of Thread Bores 0, Bore O 3 16.5, Number of mounting bores 3, Packaging length 49.7, Packaging height 23, Mounting hole angle measurement [Degree] 34, Product Group 1 ROTATING ELECTRICAL, Part No. 0001340501, Brand BOSCH.

Bosch Starter Motor 24V 11Th CW. Part number 0001340501 should be checked first. Listed voltage is 24. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number 0001340501, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 24 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include HITACHI EH1700, HITACHI EH1700 2011, HITACHI EH1700 2013, HITACHI EH3000, KOMATSU 830E, KOMATSU 830E 1989. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

Compatibility note: Confirm compatibility by matching part number 0001340501, the 24V specification, 11 tooth pinion, 3 hole mounting pattern, and the listed dimensions against the original starter and the machine application before ordering.

FAQ

Is this starter motor 24V?

Yes. The listed voltage is 24V.

What is the part number?

The part number is 0001340501.

Is it clockwise or counter-clockwise rotation?

It is listed as clockwise rotation (CW).

Is this a new starter or remanufactured unit?

It is listed as new, not remanufactured.

What mounting style does it use?

It is a 3 hole starter mount type with 126mm mount centres and 16.5mm mount hole diameter.

Which machines are listed in the fitment data?

The supplied fitment data includes Hitachi, Komatsu, Le Tourneau, Liebherr, and Terex O&K applications, including models such as EH1700, 830E, D950, R9800, and MT3300AC.
