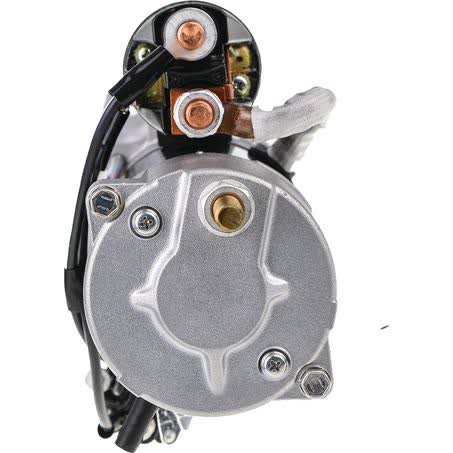

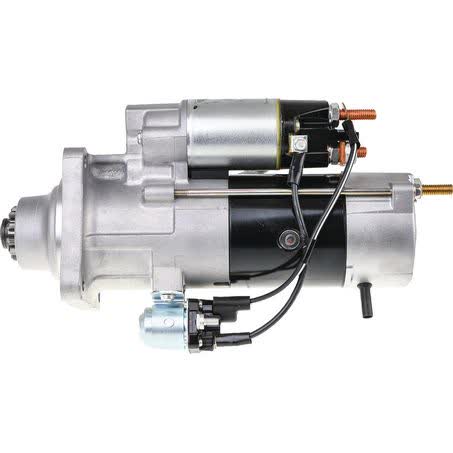

Mitsubishi Starter Motor 24V 11TH CW M9T61471AMA

The Mitsubishi Starter Motor 24V 11th CW, part number M9T61471AMA, is a new rotating electrical unit with a 5.5kW power rating and clockwise rotation. It is supplied as a 3 hole starter motor with a 89mm flange diameter, 320mm overall length, and 8.92kg weight, making it a substantial commercial vehicle starter rather than a light-duty unit.

Key identification points include 24V operation, 11 teeth on the pinion, 43mm pinion diameter, and 48mm pinion at rest. The unit is listed with SAE 1 (Perkins) mount detail, mount centres A of 127mm, mount centres B of 90mm, mount centres C of 90mm, and 11mm mount hole diameter, so matching the mounting pattern matters as much as the electrical rating.

The stated application note is for Volvo applications with D11C and D9A340 engines, and the fitment data also references a wider range of heavy vehicle applications including Volvo, UD Trucks Quon, Ford Trader, and King Long XMQ. Because starter fitment can vary by build, engine, and mounting arrangement, the part number and physical measurements should be checked carefully before ordering.

Key Features

• 24V starter motor
• 5.5kW power rating
• Clockwise rotation
• 11 tooth pinion
• New unit
• 3 hole starter mount

Specifications

• Brand: Mitsubishi
• Part number: M9T61471AMA
• Product type: Starter Motor
• Voltage: 24V
• Power rating: 5.5kW
• Rotation: CW
• Number of teeth: 11
• Pinion diameter: 43mm

Verified application guidance

• Volvo applications with D11C engine
• Volvo applications with D9A340 engine
• Fitment data also references Volvo, UD Trucks Quon, Ford Trader, and King Long XMQ applications
• Application families listed include Volvo A, Volvo B11, Volvo B5, Volvo FM, Volvo FM II, Volvo FM9, Volvo FMX, and Volvo FMX II

Application and Buying Notes

Use the part number M9T61471AMA as the main match point, then compare the physical dimensions against your existing starter. The important checks here are 24V, 11 tooth pinion, clockwise rotation, 89mm flange diameter, 320mm overall length, and the 3 hole mount pattern with 127mm, 90mm, and 90mm mount centres.

This unit is identified with an SAE 1 (Perkins) mount note and is listed for wet or dry clutch applications, so it is intended for heavier vehicle fitments where the starter housing and mounting face must align correctly. If your removed starter has a different flange size, pinion dimension, or hole spacing, do not rely on the brand name alone.

The listed application note points to Volvo engines D11C and D9A340, while the fitment record also references a broader set of vehicles such as Ford Trader, King Long XMQ, and UD Trucks Quon. That makes the build details important, because the same vehicle range can have more than one starter arrangement depending on engine and specification.

Before fitting, compare the old unit’s teeth count, rotation, pinion diameter, and mounting layout with this starter’s 11 tooth, CW configuration. For commercial vehicles, those details are often the difference between a correct fit and a unit that will not engage properly or mount cleanly.

The warranty listed is 2 years or 400,000km, which gives a clear service expectation for the part when it is installed correctly and used within its intended application. As with any starter motor, correct diagnosis of the charging system, battery condition, and cable condition is still important before replacement.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number M9T61471AMA helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty 2 Years 400,000km, Mount Centres A 127mm, Mount Centres C 90mm, Number of Teeth 11, Pinion at Rest 48mm, Power Rating 5.5kW, Suits Unit Make Mitsubishi, Note SAE 1 (Perkins) Mount.

Additional published details for cross-checking include New / Reman. New, Wet / Dry Clutch Wet or Dry, Product Group 2 STARTER MOTORS, Part No. M9T61471AMA, Brand MITSUBISHI, Description Mitsubishi Starter Motor 24V 11Th CW, Flange Diameter 89mm, Mount Centres B 90mm, Mount Hole Diameter 11.

Mitsubishi Starter Motor 24V 11Th CW. Part number M9T61471AMA should be checked first. Listed voltage is 24. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number M9T61471AMA, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 24 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include FORD TRADER, FORD TRADER 1984, FORD TRADER 1985, FORD TRADER 1986, KING LONG XMQ, KING LONG XMQ 2017. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

Compatibility note: Confirm fitment by matching M9T61471AMA, the 24V CW specification, the 11 tooth pinion, and the mounting measurements against the removed unit and vehicle application details before purchase.

FAQ

What is the part number for this starter motor?

The part number is M9T61471AMA.

Is this a 12V or 24V starter motor?

It is a 24V starter motor.

What is the rotation of this unit?

The starter motor rotates clockwise, shown as CW.

How many teeth does the pinion have?

The pinion has 11 teeth.

What vehicles or engines is it noted for?

It is noted for Volvo applications with D11C and D9A340 engines, and the fitment data also references Volvo, UD Trucks Quon, Ford Trader, and King Long XMQ application families.

What should I check before ordering?

Check the part number, 24V rating, clockwise rotation, 11 tooth pinion, 89mm flange diameter, 320mm overall length, and the 3 hole mount measurements before buying.
