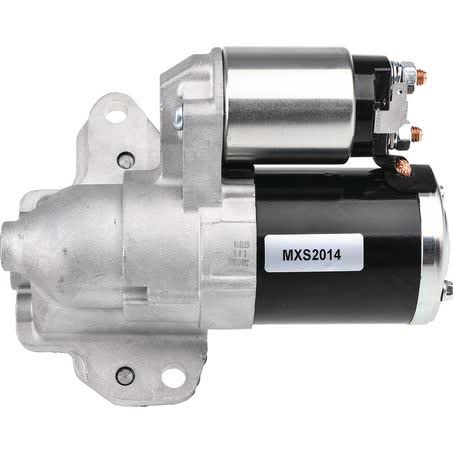

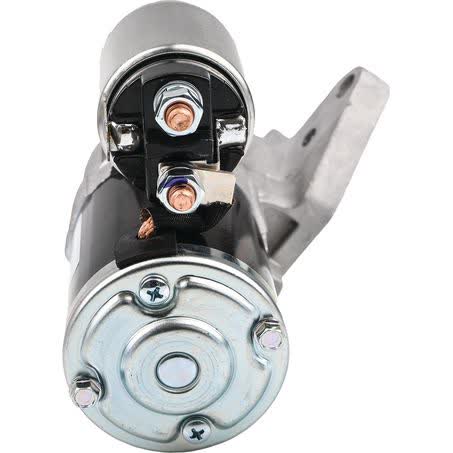

OEX Starter Motor 12V 22T CCW Mitsubishi Style MXS2014

The OEX starter motor listed under part number MXS2014 is a new 12V unit with 22 teeth, counter-clockwise rotation, and a 1.6kW power rating. It is supplied as a pad-mount starter motor with a 130mm mount centres measurement and an 11mm mount hole diameter, which are important checks when matching the starter to the vehicle application.

This unit is described as Mitsubishi style and suits Mitsubishi applications. The pinion at rest is 21mm, the pinion diameter is 52mm, and the starter is listed as a dry clutch type. Those measurements help confirm that the starter geometry and mounting style align with the existing fitment before purchase.

OEX positions this part as a new starter motor sourced through OEM and aftermarket supply channels, with production from ISO certified factories. It is backed by a 3 year passenger and 1 year commercial warranty, and the unit weight is listed at 3.46kg for handling and comparison purposes.

Key Features

• 12V starter motor
• 22-tooth pinion
• Counter-clockwise rotation
• 1.6kW power rating
• Pad mount type
• New unit

Specifications

• Brand: OEX
• Part number: MXS2014
• Product type: Starter motor
• Voltage: 12V
• Number of teeth: 22
• Rotation: CCW
• Power rating: 1.6kW
• Starter mount type: Pad

Fitment guidance

• Suits Mitsubishi applications
• Mazda CX-9 applications are also listed in the supplied fitment data
• Mazda CX-9 fitment appears across multiple model years in the provided application listing
• Confirm the exact application by part number and vehicle details before ordering

Application and Buying Notes

Start by checking the part number MXS2014 against the vehicle application and the existing starter layout. The key identifiers here are 12V, 22 teeth, CCW rotation, pad mount type, 130mm mount centres, and an 11mm mount hole diameter. Those details need to line up with the vehicle and the removed unit for a reliable match.

The starter is listed with a 1.6kW power rating, a 52mm pinion diameter, and a 21mm pinion at rest. Those measurements are useful when comparing against the original starter, especially where the physical space, nose housing position, or mounting pattern must be matched carefully.

This part is marked as new and dry clutch only. If the vehicle uses a different starter configuration, clutch arrangement, or mounting arrangement, it should not be assumed interchangeable. The supplied fitment data also references Mazda CX-9 applications and Mitsubishi suitability, so the safest approach is to verify the exact vehicle details rather than rely on a model name alone.

The stated warranty is 3 years for passenger use and 1 year for commercial use. Warranty terms do not replace fitment checking, so the practical buying step is still to confirm the OE-style layout, rotation direction, tooth count, and mount measurements before fitting.

Weight is listed at 3.46kg, which can help when comparing a replacement starter to the removed unit. If the existing starter differs in mounting style, tooth count, or pinion dimensions, the better course is to verify compatibility before installation rather than rely on appearance alone.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number MXS2014 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Mount Hole Diameter 11, Pinion at Rest 21mm, Power Rating 1.6kW, Suits Unit Make Mitsubishi, New / Reman. New, Wet / Dry Clutch Dry.

Additional published details for cross-checking include Product Group 2 STARTER MOTORS, Part No. MXS2014, Brand OEX, Description OEX Starter Motor 12V 22Th CCW Mitsubishi Style, Mount Centres A 130mm, Number of Teeth 22, Pinion Diameter 52mm, Rotation CCW, Voltage 12, Starter Mount Type Pad.

OEX Starter Motor 12V 22Th CCW Mitsubishi Style. Part number MXS2014 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number MXS2014, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Compatibility note: Confirm fitment using part number MXS2014, the 12V 22T CCW pad-mount specification, and the vehicle’s application details before purchase or installation.

FAQ

What is the part number for this starter motor?

The part number is MXS2014. For this listing, part number MXS2014 is the main reference point. Listed voltage is 12. Published fitment references include MAZDA CX-9, MAZDA CX-9 2007, MAZDA CX-9 2008. These details should still be checked against the original unit before ordering.

What voltage is this starter motor?

It is a 12V starter motor. For this listing, part number MXS2014 is the main reference point. Listed voltage is 12. Published fitment references include MAZDA CX-9, MAZDA CX-9 2007, MAZDA CX-9 2008. These details should still be checked against the original unit before ordering.

How many teeth does the pinion have?

The pinion has 22 teeth. For this listing, part number MXS2014 is the main reference point. Listed voltage is 12. Published fitment references include MAZDA CX-9, MAZDA CX-9 2007, MAZDA CX-9 2008. These details should still be checked against the original unit before ordering.

What direction does it rotate?

It is listed as counter-clockwise, or CCW. For this listing, part number MXS2014 is the main reference point. Listed voltage is 12. Published fitment references include MAZDA CX-9, MAZDA CX-9 2007, MAZDA CX-9 2008. These details should still be checked against the original unit before ordering.

What mounting style does it use?

It is a pad-mount starter motor with 130mm mount centres and an 11mm mount hole diameter. For this listing, part number MXS2014 is the main reference point. Listed voltage is 12. Published fitment references include MAZDA CX-9, MAZDA CX-9 2007, MAZDA CX-9 2008. These details should still be checked against the original unit before ordering.

What warranty is supplied?

The warranty is 3 years for passenger use and 1 year for commercial use. For this listing, part number MXS2014 is the main reference point. Listed voltage is 12. Published fitment references include MAZDA CX-9, MAZDA CX-9 2007, MAZDA CX-9 2008. These details should still be checked against the original unit before ordering.
