Valeo Alternator 12V 120A 439617 For Citroen Berlingo II B9C PSA 9HX

Valeo alternator, 12V and 120A, part number 439617. This unit is listed as a new alternator with internal regulator, direct fastening, pad mount and a 6 groove pulley. It is supplied as each and weighs 6.41kg.

The listed application is Citroen Berlingo II B9C with PSA 9HX engine. That is the specific vehicle and engine combination provided, so it is the safest starting point when checking replacement suitability. The pulley outside diameter is 49mm and the connector note states no connector for revolution counter.

Mounting dimensions are important on alternators, and this unit gives several useful checks: 151mm mount centre to centre, 164mm mount centres B, 45mm inside mounting legs, 10mm adjusting hole diameter and 80mm mount leg thickness. Those measurements should be matched against the removed part before ordering.

Valeo identifies this as a 12V charging unit with 120A output, and the stated product group is rotating electrical. If the existing alternator differs in mounting, pulley or connector arrangement, compare the part number 439617 and the measured points carefully before fitting.

Key Features

• 12V alternator with 120A charge current
• Valeo brand, part number 439617
• New unit, supplied each
• Internal regulator
• 6 groove pulley, 49mm outside diameter
• Pad mount with direct fastening

Specifications

• Brand: Valeo
• Product type: Alternator
• Part No.: 439617
• Voltage: 12V
• Charge current: 120A
• Regulator type: Internal
• Pulley section: 6 groove
• Pulley outside diameter: 49mm

Confirmed Application

• Citroen Berlingo II B9C with PSA 9HX engine

Application and Buying Notes

Before buying, compare the part number 439617, the 12V system, and the 120A output with the original alternator fitted to the vehicle. The mounting layout is also specific: 151mm mount centres A, 164mm mount centres B, 45mm inside mounting legs and a 10mm adjusting hole diameter. Those figures need to line up with the removed unit, not just the vehicle model name.

The pulley setup matters as well. This alternator uses a 6 groove pulley with a 49mm outside diameter, so belt type and pulley size should be checked against the existing part. If the alternator on the vehicle has a different pulley section or offset arrangement, the part may not be a direct match even if the vehicle family appears similar.

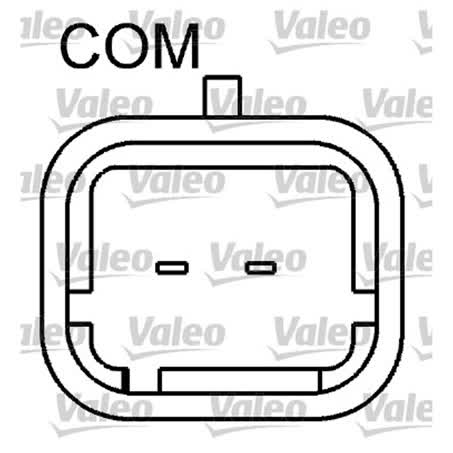

The connector note is also worth checking. This unit is listed with no connector for revolution counter, so any vehicle or loom that relies on that connection needs to be confirmed before purchase. The alternator is a new Valeo unit and is supplied with a one year warranty, which gives a clear service expectation but does not replace fitment checking.

When in doubt, use the physical part in front of you as the reference. Confirm the mount style is pad mount with direct fastening, check the mount leg thickness of 80mm, and compare the alternator body and plug arrangement with the replacement. A careful match on these details is the best way to avoid avoidable returns or installation delays.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number 439617 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type ALTERNATOR, Unit of Measure EACH, Warranty One Year, Inside Mounting Legs 45mm, Mount Centres B 164mm, Pin Code IR197, Pulley Outside Diameter 49mm, Regulator Type Internal, Voltage 12, Mount Cnt to Cnt 151mm.

Additional published details for cross-checking include Alternator Charge Current [A] 120, Connector / Clamp No Connector for Revolution Counter, Product Group 2 ALTERNATORS, Part No. 439617, Brand VALEO, Description Valeo Alternator 12V 120A, Adjusting Hole Diameter 10, Mount Centres A 151mm, Mount Leg Thickness 80mm.

Valeo Alternator 12V 120A. Part number 439617 should be checked first. Listed voltage is 12. Listed output rating is 120. These details form the core reference points used by parts interpreters when confirming the correct replacement.

Mount style is Pad. Regulator type is Internal. Pulley configuration is 6 Groove. Those physical and electrical details should line up with the original unit before the replacement is approved for fitment.

For part number 439617, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a alternator in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 and output 120 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include CITROEN BERLINGO, CITROEN BERLINGO 2010, CITROEN C3, CITROEN C3 2009, MINI MINI, MINI MINI 2006. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

The listed warranty is One Year. Warranty terms should be considered alongside correct application and part identification, as warranty does not replace fitment confirmation.

Compatibility note: Please confirm fitment using part number 439617, the listed Citroen Berlingo II B9C with PSA 9HX engine application, and the measured mounting and pulley details before ordering.

FAQ

What vehicle application is listed for this alternator?

The listed application is Citroen Berlingo II B9C with PSA 9HX engine.

What is the part number?

The part number provided is 439617.

What are the electrical specifications?

It is a 12V alternator with a 120A charge current.

Is this a new or remanufactured alternator?

This unit is listed as new.

What pulley and mounting details are provided?

The alternator has a 6 groove pulley with 49mm outside diameter, pad mount, direct fastening, 151mm mount centres A, 164mm mount centres B, 45mm inside mounting legs, 10mm adjusting hole diameter and 80mm mount leg thickness.

Does it have a connector for a revolution counter?

The connector / clamp note states no connector for revolution counter.
