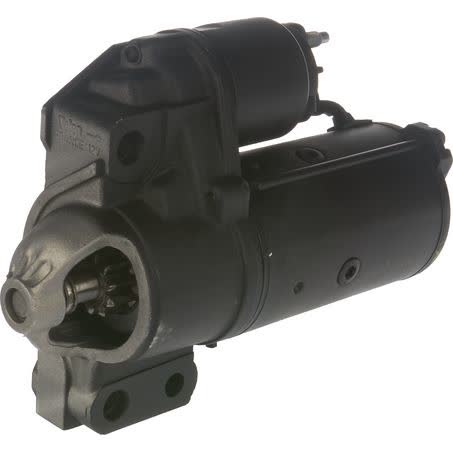

Valeo Starter Motor 12V 10TH CW 455734

This Valeo starter motor is a 12V, clockwise rotating unit with 10 teeth and a 1.5kW power rating. It is listed as remanufactured, weighs 3.91kg, and carries part number 455734 for identification when matching against an existing starter or parts catalogue reference.

The mounting pattern is a 3 hole starter mount with Mount Centres A at 113mm, Mount Centres B at 118mm, and Mount Centres C at 33mm. Other listed dimensions include a 10mm nose cone length, 22mm pinion diameter, and 12mm mount hole diameter, all of which are useful checks when comparing units before purchase.

The only explicit application supplied is Citroen XM with ZPJ engine. No broader vehicle range has been provided, so fitment should be confirmed carefully using the part number, mounting measurements, and the vehicle application details before ordering.

Key Features

• Valeo starter motor, part number 455734
• 12V clockwise rotation
• 10 tooth pinion
• 1.5kW power rating
• Remanufactured unit
• 3 hole starter mount

Specifications

• Brand: Valeo
• Type: Starter Motor
• Part No.: 455734
• Voltage: 12V
• Rotation: CW
• Number of Teeth: 10
• Power Rating: 1.5kW
• New / Reman.: Remanufactured

Verified fitment details

• Citroen XM with ZPJ engine
• Match against Valeo part number 455734
• Confirm the 3 hole mount and the listed centre measurements before ordering

Application and Buying Notes

When replacing a starter motor, the safest match is the part number first. In this case, 455734 is the key identifier, followed by the physical details: 12V supply, clockwise rotation, 10 teeth, and a 1.5kW rating. If any of those differ from the removed unit, pause and compare carefully before fitting.

The mounting layout also matters. This starter is listed with a 3 hole mount and centre measurements of 113mm, 118mm, and 33mm, plus a 10mm nose cone length and 12mm mount hole diameter. Those figures help confirm that the starter will physically locate correctly against the bellhousing and mounting face.

The supplied application is limited to Citroen XM with ZPJ engine. If you are working from a vehicle registration, VIN, or engine code, use that information together with the starter details above rather than assuming interchange. Starter motors can share a similar appearance while differing in rotation, tooth count, or mount spacing.

Because this unit is remanufactured, it is worth inspecting the old starter for heat damage, broken teeth, worn mount faces, or wiring issues before installing the replacement. A starter problem is not always caused by the motor alone, so checking the battery condition, terminals, earths, and cable connections is sensible during diagnosis.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number 455734 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty One Year, Mount Centres A 113mm, Mount Centres C 33mm, Nose Cone Length 10mm, Pinion Diameter 22mm, Rotation CW, Voltage 12, New / Reman. Remanufactured.

Additional published details for cross-checking include Wet / Dry Clutch Dry, Clamp NO, Product Group 2 STARTER MOTORS, Part No. 455734, Brand VALEO, Description Valeo Starter Motor 12V 10Th CW, Flange Diameter 0mm, Mount Centres B 118mm, Mount Hole Diameter 12.

Valeo Starter Motor 12V 10Th CW. Part number 455734 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number 455734, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Where no verified application list is available, the part number, mounting details, connector style, and published specifications should be used as the primary selection criteria.

Compatibility note: Confirm fitment using Valeo part number 455734, the 12V clockwise 10 tooth specification, and the listed 3 hole mount measurements before ordering.

FAQ

What vehicle is this starter motor listed for?

The only explicit application supplied is Citroen XM with ZPJ engine. For this listing, part number 455734 is the main reference point. Listed voltage is 12. These details should still be checked against the original unit before ordering.

What is the part number for this starter motor?

The listed part number is 455734. For this listing, part number 455734 is the main reference point. Listed voltage is 12. These details should still be checked against the original unit before ordering.

Is this starter motor new or remanufactured?

It is listed as remanufactured. For this listing, part number 455734 is the main reference point. Listed voltage is 12. These details should still be checked against the original unit before ordering.

What are the key electrical details?

It is a 12V starter motor with clockwise rotation and a 1.5kW power rating. For this listing, part number 455734 is the main reference point. Listed voltage is 12. These details should still be checked against the original unit before ordering.

What mounting details are provided?

It is a 3 hole starter mount with Mount Centres A at 113mm, Mount Centres B at 118mm, Mount Centres C at 33mm, and a 12mm mount hole diameter. For this listing, part number 455734 is the main reference point. Listed voltage is 12. These details should still be checked against the original unit before ordering.

What warranty is listed?

The listed warranty is one year. For this listing, part number 455734 is the main reference point. Listed voltage is 12. These details should still be checked against the original unit before ordering.
