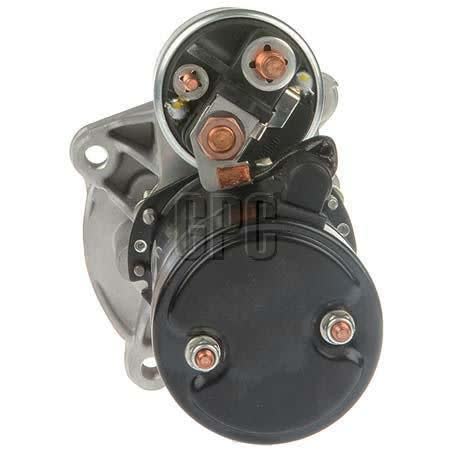

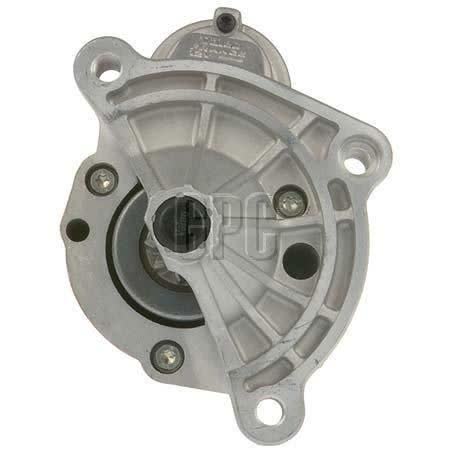

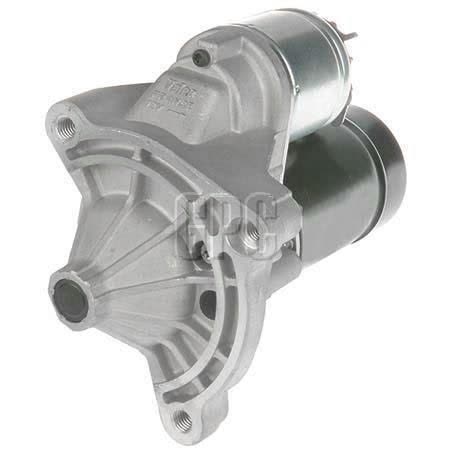

Valeo Starter Motor 12V 9 Tooth CW Part No. 432633

The Valeo starter motor listed here is a new 12V unit with clockwise rotation, 9 teeth on the pinion, and part number 432633. It is supplied as a starter motor each, with a power rating of 1.2kW and a one-year warranty.

Physical sizing is important on starter replacement, and this unit measures 206mm overall length with 120mm mount centres A, 84mm mount centres B, 84mm mount centres C, and a 59mm flange diameter. The mounting arrangement is a 3-hole starter mount with M10 mount hole diameter and 3 thread bores.

The pinion diameter is 25mm, the nose cone length is 9mm, and the pinion at rest is -5mm. It is listed as a dry clutch starter, with no clamp, and weighs 3.01kg. These details matter when comparing a replacement starter to the one already fitted to the vehicle.

Key Features

• 12V starter motor
• Clockwise rotation
• 9-tooth pinion
• New unit
• 1.2kW power rating
• 3-hole starter mount

Specifications

• Brand: Valeo
• Product type: Starter motor
• Part number: 432633
• Voltage: 12V
• Rotation: CW
• Power rating: 1.2kW
• Number of teeth: 9
• Overall length: 206mm

Known applications

• Citroen BX19
• Citroen Xantia
• Peugeot 405
• Peugeot 406 with XU9 engine
• Peugeot 406 with XU1 engine
• Peugeot 306
• Peugeot 405 with listed fitment coverage
• Citroen Xantia model years shown in the fitment data

Application and Buying Notes

Check the part number 432633 first, then compare the mounting layout, because this starter uses a 3-hole mount with 120mm mount centres A, 84mm mount centres B, and 84mm mount centres C. The flange diameter is 59mm, the mount hole diameter is M10, and the overall length is 206mm, so it is worth matching the existing unit before ordering.

The electrical and drive details are just as important as the physical dimensions. This Valeo starter is a 12V unit with clockwise rotation, 9 teeth, a 25mm pinion diameter, and a 1.2kW power rating. If the replacement does not match voltage, rotation, tooth count, or pinion size, it should not be assumed to suit.

The listed applications include Citroen BX19, Xantia, and Peugeot 405 and 406 models with XU9 or XU1 engine coverage, along with Peugeot 306 and Peugeot 405 fitment references in the application data. Even where the vehicle name appears in the fitment information, the safest approach is to confirm the starter already fitted and compare the part number, mount pattern, and dimensions before purchase.

Because starter motors can vary by engine and mounting configuration, pay close attention to the details that are visible on the old unit. The one-year warranty applies to this new Valeo starter, but warranty coverage does not replace the need to confirm the correct application for the vehicle.

If the current starter differs in rotation, pinion tooth count, mounting offset, or length, it may not be the same unit even when the vehicle model appears similar. The supplied fitment points should be used as a guide alongside the physical measurements and part number 432633.

For workshop or self-fit use, it helps to compare the old starter side by side before installation. The dry clutch designation, 3.01kg weight, 9mm nose cone length, and -5mm pinion at rest are all useful checkpoints when verifying you have the correct replacement.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number 432633 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty One Year, Mount Centres A 120mm, Mount Centres C 84mm, Nose Cone Length 9mm, Overall Length 206mm, Pinion Diameter 25mm, Rotation CW, Voltage 12.

Additional published details for cross-checking include New / Reman. New, Wet / Dry Clutch Dry, Clamp NO, Weight 3.01kg, Product Group 1 ROTATING ELECTRICAL, Part No. 432633, Brand VALEO, Description Valeo Starter Motor 12V 9Th CW, Flange Diameter 59mm, Mount Centres B 84mm.

Valeo Starter Motor 12V 9Th CW. Part number 432633 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number 432633, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include CITROEN XANTIA, CITROEN XANTIA 1993, CITROEN XANTIA 1994, CITROEN XANTIA 1995, PEUGEOT 306, PEUGEOT 306 1994. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

Compatibility note: Confirm fitment by matching part number 432633, the 12V CW specification, the 9-tooth pinion, and the mounting measurements against the starter currently fitted to the vehicle.

FAQ

What part number identifies this starter motor?

The listed part number is 432633.

What voltage and rotation does it have?

It is a 12V starter motor with clockwise rotation.

How many teeth does the pinion have?

The pinion has 9 teeth.

What mounting details are supplied?

It is a 3-hole starter mount with 120mm mount centres A, 84mm mount centres B, 84mm mount centres C, and M10 mount holes.

Which vehicles are listed as applications?

The fitment information includes Citroen BX19, Citroen Xantia, Peugeot 405, Peugeot 406 with XU9 engine, Peugeot 406 with XU1 engine, and Peugeot 306 coverage in the supplied application data.

Is this a new or remanufactured starter motor?

It is listed as a new starter motor.
