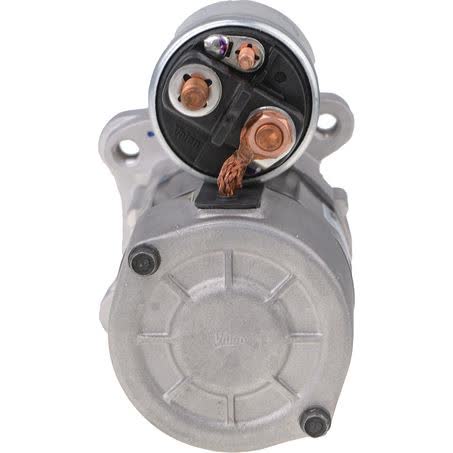

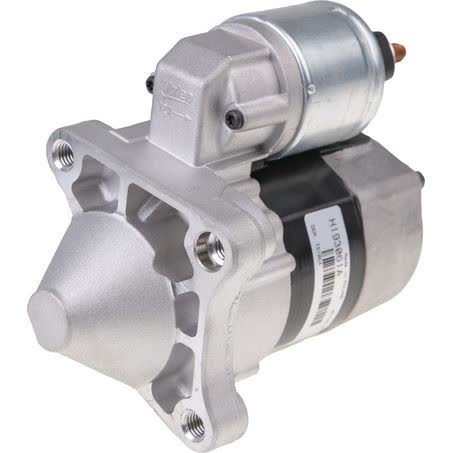

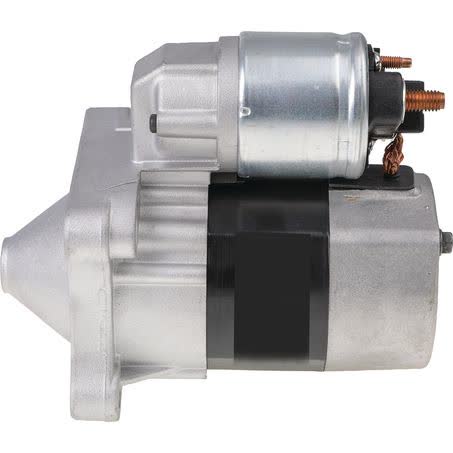

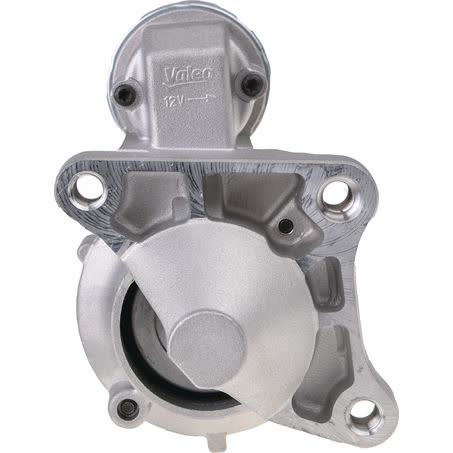

Valeo Starter Motor 12V 8 Tooth CW Part No. 438054

This Valeo starter motor is a 12V, clockwise rotating unit with 8 teeth and part number 438054. It is listed as a new starter motor with a 3-hole mount type, blade style start wire connector, and dry clutch application details, so it is intended for specific vehicle fitments rather than as a universal replacement.

Key physical dimensions include mount centres A 105mm, B 72mm and C 64mm, with a 65mm flange diameter, 31mm nose cone length and 165mm overall length. The pinion diameter is 18mm, the pinion at rest is -2mm, and the mounting holes are M10x1.5, which are all important checkpoints when matching the unit to the original starter.

The unit is rated at .85kW and weighs 2.98kg. Valeo describes this starter as an OE-style replacement built to suit many euro vehicles, with testing that includes speed, temperature and electrical cycles, plus salt, thermal and vibration durability checks. That does not replace fitment checking, but it does give useful context for the type of part supplied.

Key Features

• Valeo starter motor, new unit
• 12V, clockwise rotation
• 8 tooth pinion
• 3-hole starter mount type
• Blade style start wire connector
• Dry clutch application

Specifications

• Part No. 438054
• Power rating: .85kW
• Weight: 2.98kg
• Overall length: 165mm
• Flange diameter: 65mm
• Nose cone length: 31mm
• Mount centres A: 105mm
• Mount centres B: 72mm

Known fitment references

• Renault
• Renault Clio
• Renault Kangoo
• Renault Megane
• Renault Scénic
• Fitment preview includes Renault Clio model years 2001 to 2008
• Fitment preview includes Renault Kangoo model years 2004 and 2005

Application and Buying Notes

Before ordering, check the part number 438054 against the starter removed from the vehicle, then compare the 12V rating, clockwise rotation, 8 tooth pinion and 3-hole mount arrangement. The listed mount centres of 105mm, 72mm and 64mm, together with the 65mm flange diameter and M10x1.5 mount holes, are the best physical checks for confirming the replacement shape and fixing pattern.

The blade style start wire connector and dry clutch application detail are also worth matching carefully. If the original unit uses a different connector style, a different pinion count, or a different mounting layout, the starter may not suit even if the external size looks close. The 31mm nose cone length and 165mm overall length can help with clearance and housing comparison.

This starter is listed for Renault applications in the fitment preview, including Clio, Kangoo, Megane and Scénic references. Even so, Renault used multiple starter configurations across model years, so the safest approach is to verify the original starter details, vehicle application and physical measurements before ordering. The .85kW output and 2.98kg weight are useful reference points, but they should be checked alongside the rest of the identification details.

If you are replacing a Valeo unit, confirm that the replacement is also a Valeo-suited starter and that the pinion diameter is 18mm with the pinion at rest at -2mm. Those measurements help avoid cross-over mistakes where two starters appear similar but differ in drive engagement or housing depth. Careful comparison is especially important on electrical and rotating parts, where a close visual match is not always enough.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number 438054 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty One Year, Mount Centres A 105mm, Mount Centres C 64mm, Nose Cone Length 31mm, Overall Length 165mm, Pinion Diameter 18mm, Rotation CW, Voltage 12.

Additional published details for cross-checking include New / Reman. New, Wet / Dry Clutch Dry, Clamp NO, Weight 2.98kg, Product Group 1 ROTATING ELECTRICAL, Part No. 438054, Brand VALEO, Description Valeo Starter Motor 12V 8Th CW, Flange Diameter 65mm, Mount Centres B 72mm.

Valeo Starter Motor 12V 8Th CW. Part number 438054 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number 438054, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include RENAULT CLIO, RENAULT CLIO 2001, RENAULT CLIO 2002, RENAULT CLIO 2003. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

Compatibility note: Confirm fitment using part number 438054, the 12V CW configuration, 8 tooth pinion, 3-hole mount, and the listed mounting dimensions before purchase. Vehicle applications are referenced for Renault models, but final compatibility should always be checked against the original starter and application details on the vehicle.

FAQ

What is the part number for this starter motor?

The part number listed is 438054.

Is this a new or remanufactured starter motor?

It is listed as new.

What voltage and rotation does this starter use?

It is a 12V starter motor with clockwise rotation.

How many teeth does the pinion have?

The pinion has 8 teeth.

What are the main mounting measurements?

The listed mount centres are A 105mm, B 72mm and C 64mm. The flange diameter is 65mm and the mount hole diameter is M10x1.5.

What vehicles are referenced in the fitment preview?

The fitment preview references Renault, including Clio, Kangoo, Megane and Scénic, with sample Clio years from 2001 to 2008 and Kangoo references for 2004 and 2005.
