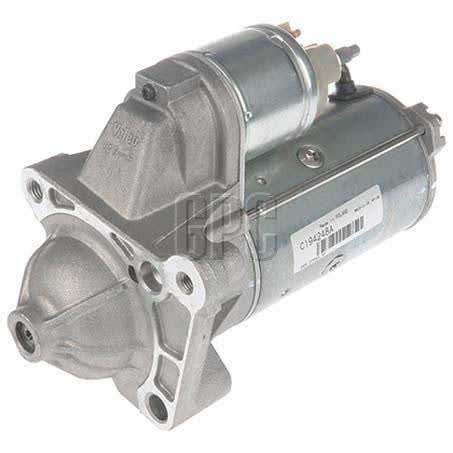

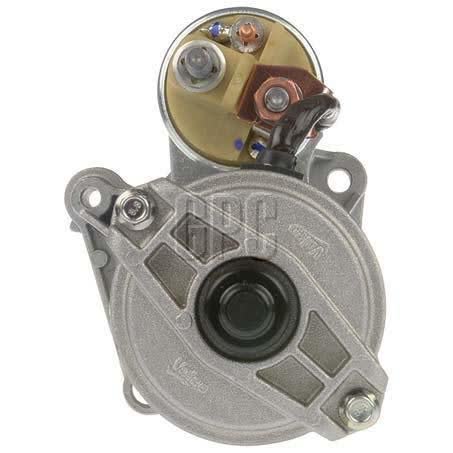

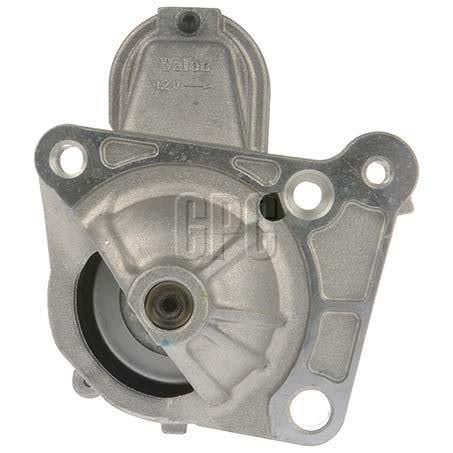

Valeo Starter Motor 12V 11T CW Part No. 438090

Valeo starter motor, 12V, clockwise rotation, with 11 teeth and part number 438090. It is a new unit, supplied each, and listed with a 1.9kW power rating for rotating electrical applications.

Key physical details include a 4 hole starter mount type, 66mm flange diameter, 104mm mount centres A, 93mm mount centres B, and 74mm mount centres C. The unit also lists a 238mm overall length, 33mm nose cone length, and 30mm pinion diameter.

This starter is described as a dry clutch type with no clamp, a pinion at rest of 0mm, and a weight of 3.96kg. The mount hole diameter is listed as M8 / M10 / 11, which is useful when checking the starter against the original unit before ordering.

Key Features

• 12V starter motor
• Clockwise rotation
• 11 tooth pinion
• New unit
• 4 hole starter mount
• 1.9kW power rating

Specifications

• Type: Starter motor
• Brand: Valeo
• Part No.: 438090
• Voltage: 12V
• Rotation: CW
• Number of teeth: 11
• Power rating: 1.9kW
• New / Reman.: New

Fitment guidance

• Listed applications include Renault Megane, Renault Scénic, Renault Trafic, and Suzuki Grand Vitara.
• Sample applications shown include Renault Megane 2004 to 2010 and Suzuki Grand Vitara 2005 to 2015.
• Fitment should still be checked against the original part number, mounting pattern, rotation, tooth count, and overall dimensions before ordering.

Application and Buying Notes

The most useful checks on this Valeo starter are the part number 438090, 12V system voltage, clockwise rotation, 11 tooth pinion, and the 4 hole mounting pattern. These details need to match the vehicle application and the removed unit, especially where the original starter has a different nose length, flange size, or bolt pattern.

Physical dimensions are just as important as the electrical rating. This unit measures 238mm overall length, has a 33mm nose cone length, 66mm flange diameter, and mount centres of 104mm, 93mm, and 74mm. Those measurements help confirm the starter will sit correctly in the engine bay and align with the existing mounting points.

The listed 1.9kW power rating and 3.96kg weight give a good reference when comparing against a replacement starter, but they should not be used on their own to identify fitment. Starter motors can look similar while differing in rotation, tooth count, or mounting geometry, so the safest approach is to compare the old unit directly with the listing details.

This starter is noted as a new Valeo unit, supplied with a one year warranty. If you are matching a replacement for a Renault or Suzuki application, cross-check the vehicle details and the original starter configuration carefully before purchase, particularly if the vehicle has had previous repairs or engine changes.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number 438090 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty One Year, Mount Centres A 104mm, Mount Centres C 74mm, Nose Cone Length 33mm, Overall Length 238mm, Pinion Diameter 30mm, Rotation CW, Voltage 12.

Additional published details for cross-checking include New / Reman. New, Wet / Dry Clutch Dry, Clamp NO, Weight 3.96kg, Product Group 1 ROTATING ELECTRICAL, Part No. 438090, Brand VALEO, Description Valeo Starter Motor 12V 11Th CW, Flange Diameter 66mm, Mount Centres B 93mm.

Valeo Starter Motor 12V 11Th CW. Part number 438090 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number 438090, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include RENAULT MEGANE, RENAULT MEGANE 2004, RENAULT MEGANE 2005, RENAULT MEGANE 2006, SUZUKI GRAND VITARA, SUZUKI GRAND VITARA 2005. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

Compatibility note: Confirm fitment by matching part number 438090, 12V, clockwise rotation, 11 teeth, 4 hole mount, and the listed dimensions against the original starter and vehicle application details before ordering.

FAQ

What is the part number for this Valeo starter motor?

The part number is 438090. For this listing, part number 438090 is the main reference point. Listed voltage is 12. Published fitment references include RENAULT MEGANE, RENAULT MEGANE 2004, RENAULT MEGANE 2005. These details should still be checked against the original unit before ordering.

Is this starter motor 12V?

Yes. The listed voltage is 12V. For this listing, part number 438090 is the main reference point. Listed voltage is 12. Published fitment references include RENAULT MEGANE, RENAULT MEGANE 2004, RENAULT MEGANE 2005. These details should still be checked against the original unit before ordering.

What direction does this starter rotate?

It is listed as clockwise rotation, shown as CW. For this listing, part number 438090 is the main reference point. Listed voltage is 12. Published fitment references include RENAULT MEGANE, RENAULT MEGANE 2004, RENAULT MEGANE 2005. These details should still be checked against the original unit before ordering.

How many teeth does the pinion have?

The pinion has 11 teeth. For this listing, part number 438090 is the main reference point. Listed voltage is 12. Published fitment references include RENAULT MEGANE, RENAULT MEGANE 2004, RENAULT MEGANE 2005. These details should still be checked against the original unit before ordering.

What vehicles are listed in the fitment information?

Listed applications include Renault Megane, Renault Scénic, Renault Trafic, and Suzuki Grand Vitara, with sample year ranges shown for Megane and Grand Vitara applications. For this listing, part number 438090 is the main reference point. Listed voltage is 12. Published fitment references include RENAULT MEGANE, RENAULT MEGANE 2004, RENAULT MEGANE 2005. These details should still be checked against the original unit before ordering.

What should I check before buying this starter motor?

Check the part number 438090, 12V rating, clockwise rotation, 11 tooth pinion, 4 hole mount type, and the listed dimensions, then compare them with the original starter and vehicle application details. For this listing, part number 438090 is the main reference point. Listed voltage is 12. Published fitment references include RENAULT MEGANE, RENAULT MEGANE 2004, RENAULT MEGANE 2005. These details should still be checked against the original unit before ordering.
