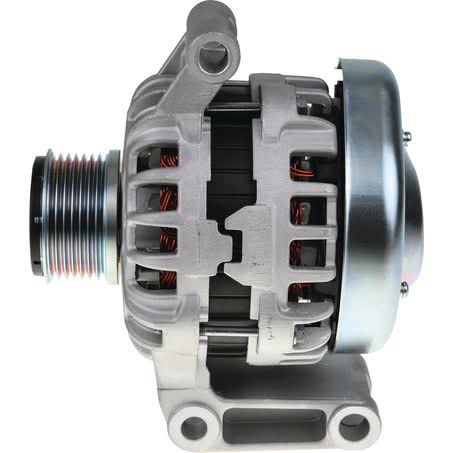

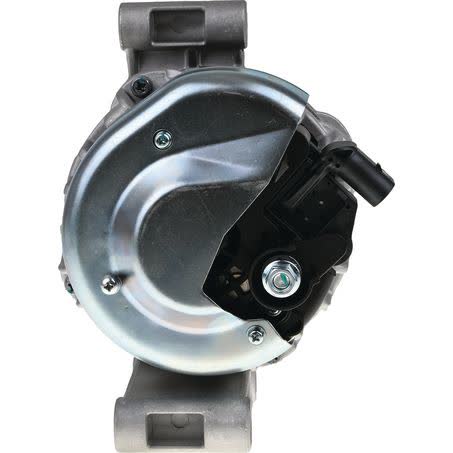

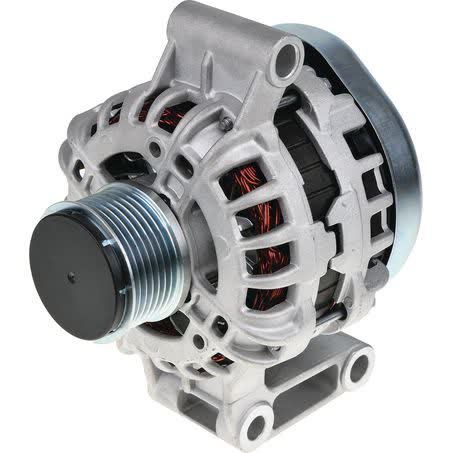

OEX Alternator 12V 130A Bosch Style BXA010

The OEX Alternator BXA010 is a new 12V unit rated at 130A, built in a Bosch style with a pad mount alternator layout. It uses an internal regulator, a 7 groove pulley, and a 59mm pulley outside diameter, so the physical match matters as much as the electrical rating when checking a replacement.

This alternator is listed with a 175mm mount centre to centre dimension, 60mm mount leg thickness, and an 11mm mount hole diameter. Those measurements are the key checkpoints when confirming whether the unit will suit the vehicle application and the existing mounting setup.

OEX identifies this as one of two identical looking alternators with different regulator functions, so the OE number should be confirmed before ordering. The note also states that BXA010 replaces the standard pulley version, which makes pulley style and regulator type important details to verify alongside the part number.

Key Features

• 12V alternator rated at 130A
• New unit, supplied each
• Bosch style replacement
• Internal regulator
• 7 groove pulley
• Pad mount alternator

Specifications

• Voltage: 12V
• Power rating: 130A
• Regulator type: Internal
• Alternator mount: Pad
• Pulley section: 7 groove
• Pulley outside diameter: 59mm
• Mount leg thickness: 60mm
• Mount centre to centre: 175mm

Fitment guidance

• Fitment data references Ford Ranger and Mazda BT-50 applications.
• Supported fitment preview includes Ford Ranger model years 2011 through 2021.
• Supported fitment preview includes Mazda BT-50 model years 2011 through 2015.
• The alternator note says to confirm by OE number because there are two visually similar units with different regulator functions.
• BXA010 is noted as the replacement for the standard pulley version.

Application and Buying Notes

Before ordering, match the part number BXA010 against the OE number on the vehicle’s original alternator or service information. The warning about two identical looking alternators with different regulator functions is important here, because a visual match alone is not enough when the regulator specification differs.

Check the 12V charging system requirement, the 130A output, and the internal regulator type against what the vehicle already uses. If the existing unit is Bosch style and the mounting arrangement is pad mount, the 175mm centre to centre measurement, 60mm mount leg thickness, and 11mm hole diameter should also be checked carefully.

The pulley details matter as well. This alternator has a 7 groove pulley with a 59mm outside diameter, and the note confirms BXA010 replaces the standard pulley version. If the original unit has a different pulley setup, that difference needs to be accounted for before fitting.

For buyers comparing options across Ford Ranger and Mazda BT-50 applications, do not rely on model name alone. Confirm the exact year, OE number, regulator arrangement, and mounting measurements so the replacement matches the original unit rather than just looking similar.

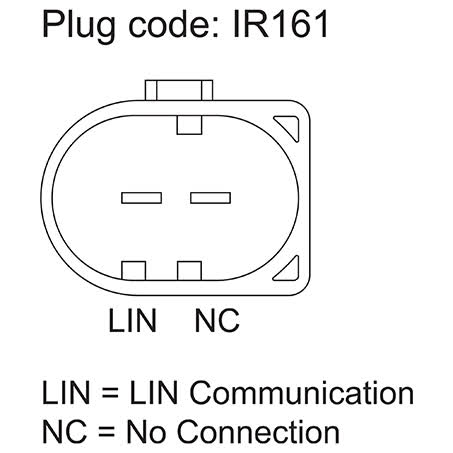

Weight is listed at 7kg, which can be useful when comparing the part on the bench or checking freight expectations. Even with a clear application listing, the safest approach is to verify the alternator style, pin code IR161, pulley configuration, and mounting dimensions together before purchase.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number BXA010 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type ALTERNATOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Mount Leg Thickness 60mm, Power Rating (Amp) 130, Pulley Section 7 Groove, Suits Unit Make Bosch, Note One of two identical looking alternators, both with different regulator functions. Confirm by OE number. BXA010 will replace standard pulley version., Mount Cnt to Cnt 175mm, Weight 7kg.

Additional published details for cross-checking include Product Group 1 ROTATING ELECTRICAL, Part No. BXA010, Brand OEX, Description OEX Alternator 12V 130A Bosch Style, Mount Hole Diameter 11, Pin Code IR161, Pulley Outside Diameter 59mm, Regulator Type Internal, Voltage 12, Alternator Mount Pad.

OEX Alternator 12V 130A Bosch Style. Part number BXA010 should be checked first. Listed voltage is 12. Listed output rating is 130. These details form the core reference points used by parts interpreters when confirming the correct replacement.

Mount style is Pad. Regulator type is Internal. Pulley configuration is 7 Groove. Those physical and electrical details should line up with the original unit before the replacement is approved for fitment.

For part number BXA010, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a alternator in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 and output 130 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include FORD RANGER, FORD RANGER 2011, FORD RANGER 2012, FORD RANGER 2013, MAZDA BT-50, MAZDA BT-50 2011. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

Compatibility note: Confirm fitment using the OE number, BXA010 part number, mounting dimensions, regulator type, and pulley details before ordering. Visual similarity alone is not enough on this Bosch style alternator.

FAQ

What is the part number for this alternator?

The part number is BXA010.

What voltage and output does this alternator have?

It is a 12V alternator with a 130A power rating.

Is this alternator new or remanufactured?

It is listed as new.

What type of regulator does it use?

It uses an internal regulator.

What pulley setup does it have?

It has a 7 groove pulley with a 59mm outside diameter.

Which vehicles are referenced in the fitment data?

The fitment data references Ford Ranger and Mazda BT-50 applications, with Ford Ranger model years shown from 2011 to 2021 and Mazda BT-50 model years shown from 2011 to 2015.
