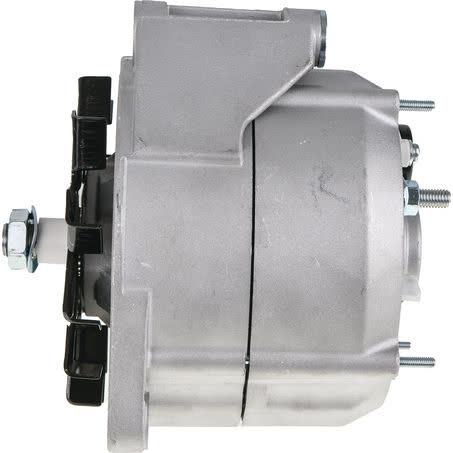

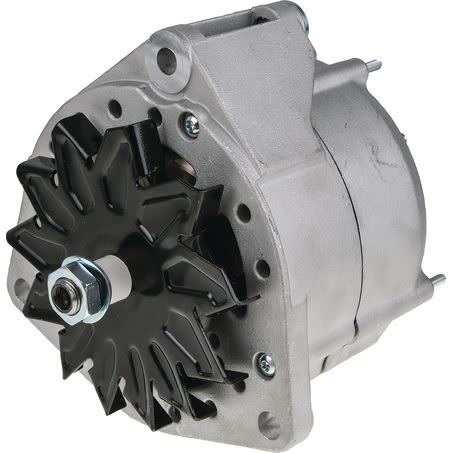

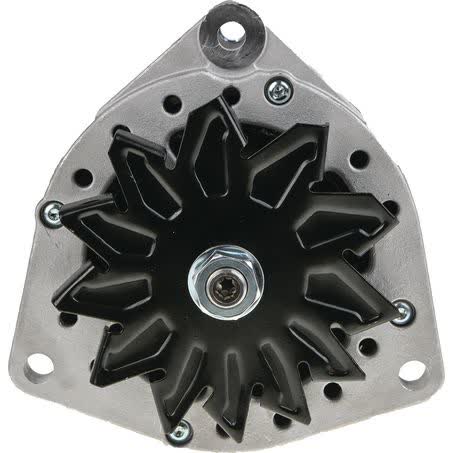

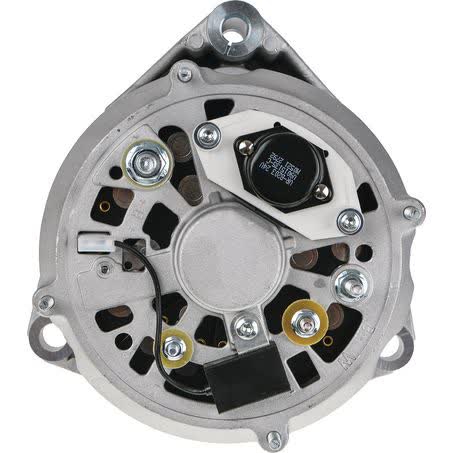

OEX Alternator 24V 80A Bosch Style BXA9005

The OEX Alternator 24V 80A Bosch Style is a new rotating electrical unit rated at 24 volts and 80 amps, with internal regulation and a single-leg alternator mount. It is identified by part number BXA9005 and is listed with OEX part number A9560800, so matching the part number against the vehicle or machine application is an important first check.

Mounting dimensions matter with alternators, and this unit lists an 80mm mount leg thickness, 161mm mount centre-to-centre, a 10mm pivot hole, and 10/12mm adjusting holes. The shaft dimension is 17, and the pulley section is not applicable, which helps narrow the replacement against the existing unit before ordering.

This alternator is described as Bosch style and suits units made by Bosch. It is supplied new, not remanufactured, and weighs 7.4kg. For buyers comparing electrical output, the key verified rating here is 24V at 80A, which makes it suitable only where that voltage and output level are required.

Key Features

• 24V, 80A alternator
• Internal regulator
• Single-leg alternator mount
• Bosch style replacement
• New unit, not remanufactured
• Suits unit make: Bosch

Specifications

• Part No.: BXA9005
• OEX product code: A9560800
• Voltage: 24V
• Power rating: 80A
• Regulator type: Internal
• Mount leg thickness: 80mm
• Mount centre-to-centre: 161mm
• Pivot hole diameter: 10mm

Known applications supplied for this alternator

• ATLAS COPCO 1354 (2009-2018)
• ATLAS COPCO 364 (including 2009)
• BMW 3 (2010-2012)
• CASE W18
• CASE W20
• JOHN DEERE 250C
• MAN 26.281, 26.342, 26.402, 26.403, 26.464, 26.482, 30.342, 30.362, 30.402, 32.281, 32.362, 32.48#
• MERCEDES-BENZ 1200, 1300, 1500, 1600, 1700, 1900, 2000, 2400, 3000 and 3500 series

Application and Buying Notes

Before ordering, match the part number BXA9005 and confirm the replacement alternator is Bosch style with a 24V, 80A specification. The physical mounting details are just as important as the electrical rating: this unit has a single-leg mount, 80mm mount leg thickness, 161mm mount centre-to-centre, a 10mm pivot hole, and 10/12mm adjusting holes.

If you are replacing a Bosch unit, compare the shaft dimension of 17 and note that the pulley section is not applicable on this listing. That makes it essential to check the old alternator directly, because a correct voltage rating alone does not confirm the mount, shaft, or adjustment arrangement will line up.

The supplied application list is broad and includes machine and vehicle families such as ATLAS COPCO, BMW 3, CASE W18 and W20, MAN truck models, MERCEDES-BENZ series and ATEGO, NORMET equipment, PEUGEOT PARTNER, and SISU SK150. Even with those listed applications, the safest approach is to confirm against the existing unit tag, the physical mounting points, and the vehicle or machine build details.

For commercial use, the warranty listed is 1 year, while passenger use is listed at 3 years. Weight is 7.4kg, so handling and installation should be done with care, and the battery should be isolated before removing or fitting any alternator to avoid electrical damage or accidental shorting.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number BXA9005 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type ALTERNATOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Mount Leg Thickness 80mm, Pivot Hole Diameter 10, Pulley Section Not Applicable, Suits Unit Make Bosch, Alternator Mount Single Leg, New / Reman. New, Weight 7.4kg.

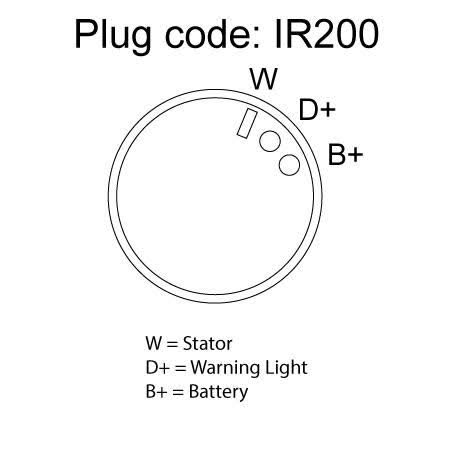

Additional published details for cross-checking include Product Group 1 ROTATING ELECTRICAL, Part No. BXA9005, Brand OEX, Description OEX Alternator 24V 80A Bosch Style, Adjusting Hole Diameter 10 / 12, Pin Code IR200, Power Rating (Amp) 80, Regulator Type Internal, Voltage 24, Mount Cnt to Cnt 161mm.

OEX Alternator 24V 80A Bosch Style. Part number BXA9005 should be checked first. Listed voltage is 24. Listed output rating is 80. These details form the core reference points used by parts interpreters when confirming the correct replacement.

Mount style is Single Leg. Regulator type is Internal. Pulley configuration is Not Applicable. Those physical and electrical details should line up with the original unit before the replacement is approved for fitment.

For part number BXA9005, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a alternator in workshop, fleet, trade, agricultural, or construction service, the listed voltage 24 and output 80 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include ATLAS COPCO 1354 2009, ATLAS COPCO 1354 2010, ATLAS COPCO 1354 2011, ATLAS COPCO 1354 2012, BMW 3, BMW 3 2010. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

Compatibility note: Confirm fitment by matching the part number BXA9005, the Bosch style specification, and the mounting measurements before purchase. If the existing alternator does not match the 24V, 80A, single-leg, 80mm mount leg thickness, 161mm mount centre-to-centre, 10mm pivot hole, and 10/12mm adjuster holes, do not assume interchangeability.

FAQ

What is the voltage and output of this alternator?

It is rated at 24V and 80A.

Is this alternator new or remanufactured?

It is listed as new, not remanufactured.

What type of regulator does it use?

It has an internal regulator.

What mounting style does it use?

It uses a single-leg alternator mount.

What part numbers should I check before ordering?

The listed part number is BXA9005, and the OEX product code is A9560800.

Does the listing include fitment guidance?

Yes. Supplied applications include ATLAS COPCO 1354, BMW 3 (2010-2012), CASE W18 and W20, JOHN DEERE 250C, MAN 26-series models, MERCEDES-BENZ series and ATEGO, NORMET equipment, PEUGEOT PARTNER, and SISU SK150.
