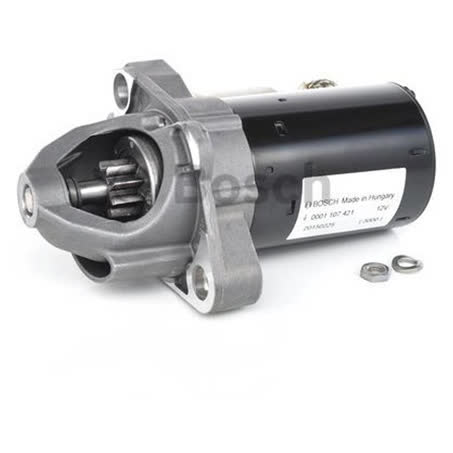

Bosch Starter Motor 12V 9 Tooth CW 1.2KW Part No. 0001107421

Bosch starter motor, 12V, 9 tooth, clockwise rotation, part number 0001107421. It is a new unit with a 1.2kW power rating, built with a 2-hole starter mount type and self-supporting starter design.

The listed flange diameter is 82.5mm, with a pinion at rest measurement of 27mm and a mounting hole angle measurement of 42°. The unit is supplied as a dry clutch application and carries a one year warranty.

This starter is identified as OE-quality for fit, appearance and durability, and it is manufactured in Hungary. For buyers comparing replacements, the key identifiers here are 12V, 9 teeth, CW rotation, and Bosch part number 0001107421.

Key Features

• Bosch brand starter motor
• 12V electrical system
• 9 tooth pinion
• Clockwise rotation
• 1.2kW power rating
• New unit

Specifications

• Part No.: 0001107421
• Voltage: 12V
• Power Rating: 1.2kW
• Number of Teeth: 9
• Rotation: CW
• Starter Mount Type: 2 Hole
• Starter Type: Self-supporting
• Flange Diameter: 82.5mm

Fitment guidance

• Fitment information provided: AUDI A6
• Fitment information provided: AUDI A6 2004
• Fitment information provided: AUDI A6 2005
• Fitment information provided: AUDI A6 2006

Application and Buying Notes

When replacing a starter motor, the safest match is the part number and the physical specification set. For this Bosch unit, check 0001107421, 12V, 9 teeth, clockwise rotation, and the 2-hole mounting arrangement before ordering.

The flange diameter is 82.5mm and the pinion at rest is 27mm, so it is worth comparing those measurements against the removed starter if the vehicle application is not confirmed. The mounting hole angle measurement is 42°, which is another useful check where the original unit is still available.

If you are matching by application rather than by the removed part, use the vehicle details carefully and compare them against the confirmed fitment notes. The fitment data supplied here includes AUDI A6 applications, including 2004, 2005 and 2006 models, but the part number should still be checked first.

A 1.2kW starter is suitable only where that output, rotation direction and mounting style are the correct match for the vehicle. Avoid assuming compatibility from brand alone, even when the replacement is Bosch and described as OE-quality.

The one year warranty applies to this new starter motor, but warranty cover does not replace the need to confirm fitment before installation. Once fitted, electrical and mechanical compatibility must be correct for the starter to operate as intended.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number 0001107421 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty One Year, Number of Teeth 9, Power Rating 1.2kW, Suits Unit Make Bosch, New / Reman. New, Wet / Dry Clutch Dry, Number of Thread Bores 1, Number of mounting bores 1.

Additional published details for cross-checking include Packaging length 28.8, Packaging height 12, Mounting hole angle measurement [Degree] 42, Product Group 1 ROTATING ELECTRICAL, Part No. 0001107421, Brand BOSCH, Description Bosch Starter Motor 12V 9Th CW, Flange Diameter 82.5mm, Pinion at Rest 27mm, Rotation CW.

Bosch Starter Motor 12V 9Th CW. Part number 0001107421 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number 0001107421, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Compatibility note: Please confirm fitment using Bosch part number 0001107421, the 12V 9 tooth CW specification, and the vehicle application details before purchase or installation.

FAQ

What is the part number for this starter motor?

The part number is 0001107421. For this listing, part number 0001107421 is the main reference point. Listed voltage is 12. Published fitment references include AUDI A6, AUDI A6 2004, AUDI A6 2005. These details should still be checked against the original unit before ordering.

What voltage is this starter motor?

It is a 12V starter motor. For this listing, part number 0001107421 is the main reference point. Listed voltage is 12. Published fitment references include AUDI A6, AUDI A6 2004, AUDI A6 2005. These details should still be checked against the original unit before ordering.

How many teeth does the pinion have?

It has 9 teeth. For this listing, part number 0001107421 is the main reference point. Listed voltage is 12. Published fitment references include AUDI A6, AUDI A6 2004, AUDI A6 2005. These details should still be checked against the original unit before ordering.

What direction does it rotate?

It is clockwise rotation, listed as CW. For this listing, part number 0001107421 is the main reference point. Listed voltage is 12. Published fitment references include AUDI A6, AUDI A6 2004, AUDI A6 2005. These details should still be checked against the original unit before ordering.

What vehicles are listed in the fitment information?

The fitment information provided includes AUDI A6, with sample applications for 2004, 2005 and 2006. For this listing, part number 0001107421 is the main reference point. Listed voltage is 12. Published fitment references include AUDI A6, AUDI A6 2004, AUDI A6 2005. These details should still be checked against the original unit before ordering.

Is this a new or remanufactured unit?

It is listed as a new starter motor. For this listing, part number 0001107421 is the main reference point. Listed voltage is 12. Published fitment references include AUDI A6, AUDI A6 2004, AUDI A6 2005. These details should still be checked against the original unit before ordering.
