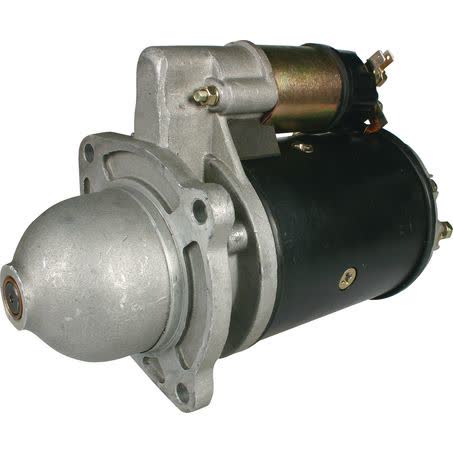

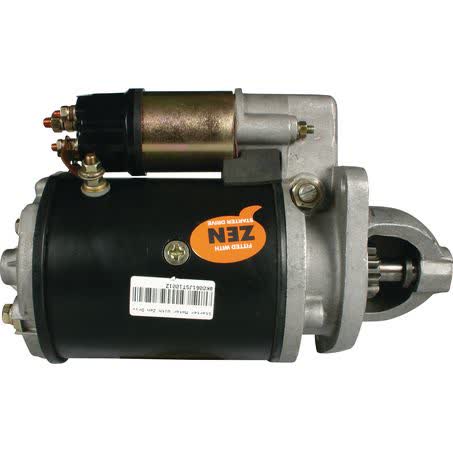

OEX Starter Motor 12V 10T CW Lucas Style LXS9303

The OEX starter motor listed here is a 12V, 10-tooth, clockwise rotation unit in Lucas style, part number LXS9303. It is a new starter motor with a 2.8kW power rating, 3 hole starter mount type, and a driver side mount note for the M127 Series.

Key physical measurements are provided to help with checking against the vehicle or existing unit before ordering: mount centres A 146mm, mount centres B 103mm, mount centres C 103mm, flange diameter 92mm, overall length 300mm, pinion diameter 40mm, pinion at rest 24mm, and mount hole diameter 10mm. The unit weighs 13.82kg.

This starter motor is described as suited to Lucas applications, with fitment references listed for a range of CASE, CASE IH, FORD and NEW HOLLAND models, plus R.F.W. CA1A applications. Because those applications vary, the part number LXS9303 and the measured mounting details should be checked carefully against the old unit before purchase.

Key Features

• 12V starter motor
• 10 tooth pinion
• Clockwise rotation
• Lucas style application
• New unit
• 3 hole starter mount type

Specifications

• Part number: LXS9303
• Brand: OEX
• Type: Starter motor
• Unit of measure: Each
• Voltage: 12V
• Number of teeth: 10
• Rotation: CW
• Power rating: 2.8kW

Checked fitment references

• CASE 990
• CASE IH 1290 1980
• CASE IH 1294 1980
• FORD 3000-SERIES
• FORD 3000-SERIES 1990
• FORD 3000-SERIES 1991
• FORD 3000-SERIES 1992
• FORD 3000-SERIES 1993

Application and Buying Notes

When matching this starter motor, start with the part number LXS9303 and the physical layout: 12V electrical system, 10 teeth, clockwise rotation, 3 hole mount, and a driver side mount note. Those details matter as much as the model reference, especially on Lucas-style applications where mounting pattern and pinion position need to align with the existing unit.

The measured dimensions are the best practical check before ordering. Compare mount centres A at 146mm, B at 103mm, C at 103mm, the 92mm flange diameter, 300mm overall length, and the 10mm mount hole diameter against the starter being replaced. If any of those points differ, stop and verify the application rather than relying on the model name alone.

This unit is listed as 2.8kW and 13.82kg, so it is not a light-duty universal item. The weight, pinion diameter of 40mm, and pinion at rest of 24mm are useful confirmation points when comparing against the removed starter or a workshop parts record. The warranty is 3 years for passenger use and 1 year for commercial use, so it is also sensible to confirm the intended application category before fitting.

Fitment references include CASE, CASE IH, FORD, NEW HOLLAND and R.F.W. CA1A entries, but those names cover multiple series and year ranges. Use the listed application only as a cross-check, not as a substitute for a direct parts match. For the cleanest result, compare the starter tag, mounting points, rotation, tooth count and pinion position together.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number LXS9303 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Mount Centres A 146mm, Mount Centres C 103mm, Number of Teeth 10, Pinion at Rest 24mm, Power Rating 2.8kW, Suits Unit Make Lucas, Note M127 Series. Driver Side Mount..

Additional published details for cross-checking include New / Reman. New, Wet / Dry Clutch Dry, Product Group 2 STARTER MOTORS, Part No. LXS9303, Brand OEX, Description OEX Starter Motor 12V 10Th CW Lucas Style, Flange Diameter 92mm, Mount Centres B 103mm, Mount Hole Diameter 10.

OEX Starter Motor 12V 10Th CW Lucas Style. Part number LXS9303 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number LXS9303, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include CASE 990, CASE IH, CASE IH 1290 1980, CASE IH 1294 1980, FORD 3000-SERIES, FORD 3000-SERIES 1990. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

The listed warranty is 3yr Passenger 1yr Commercial. Warranty terms should be considered alongside correct application and part identification, as warranty does not replace fitment confirmation.

Compatibility note: Confirm compatibility by matching part number LXS9303, the 12V 10-tooth clockwise Lucas style specification, and the measured mounting details against the unit being replaced. Application references are provided as guidance only and should be checked carefully against the exact vehicle or machine.

FAQ

What type of starter motor is this?

It is an OEX starter motor, new, 12V, 10 tooth, clockwise rotation, Lucas style, with part number LXS9303.

What mounting details are provided?

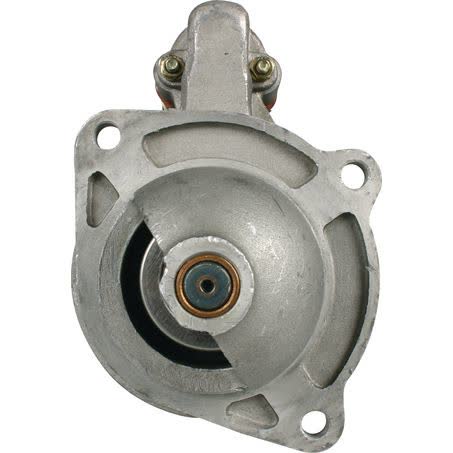

The listed mounting details are a 3 hole starter mount type, mount centres A 146mm, mount centres B 103mm, mount centres C 103mm, flange diameter 92mm, and mount hole diameter 10mm.

What power rating does it have?

The power rating listed is 2.8kW.

What vehicles or machines is it listed against?

Fitment references include CASE 990, CASE IH 1290 1980, CASE IH 1294 1980, FORD 3000-SERIES and 4000-SERIES, NEW HOLLAND 5600, 5640, 8160, 8260, 8360, 8560, 8730, and R.F.W. CA1A applications.

Is it new or remanufactured?

It is listed as new.

What warranty is listed?

The listed warranty is 3 years for passenger use and 1 year for commercial use.
