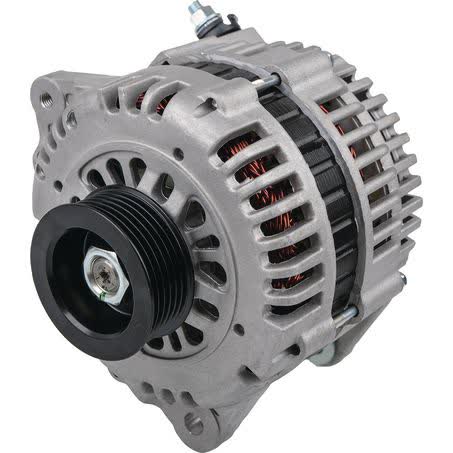

Bosch Alternator 12V 110A BXH1230N

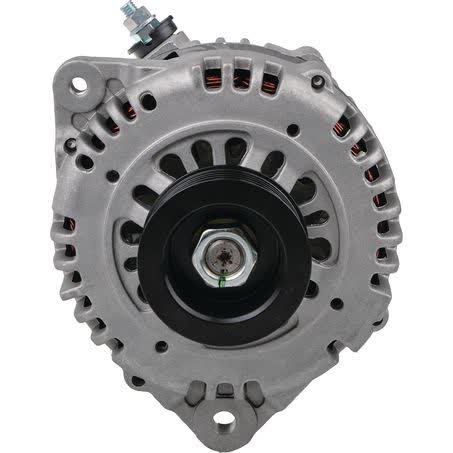

The Bosch Alternator BXH1230N is a new 12V, 110A unit with an internal regulator and CW rotation. It is listed with a 6 groove pulley, a pulley outside diameter of 63mm, and a Twin Leg alternator mount, so those details should be checked carefully against the vehicle already fitted.

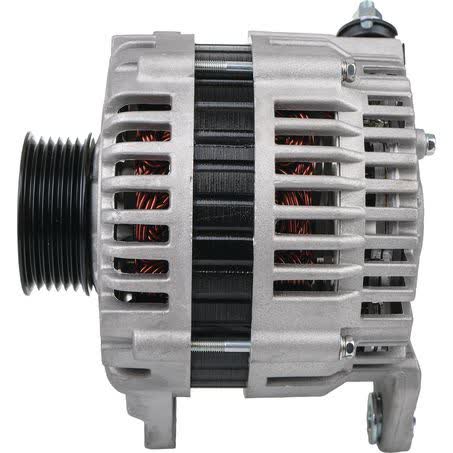

Mounting dimensions are important on this unit: the inside mounting legs measure 82mm, the mount centre to centre is 158mm, the pivot hole diameter is 10mm, and the adjusting hole diameter is M8x1.25. These measurements are the practical checks that help confirm whether the alternator will physically suit the application.

This alternator is supplied as new and carries a one year warranty. It is described as being made from high quality raw materials, corrosion resistant, and fitted with a reduction drive, which are useful points to note when replacing a charging system component in regular road use or harsher conditions.

Key Features

• New Bosch alternator
• 12V, 110A output
• Internal regulator
• 6 groove pulley
• CW rotation
• Twin Leg alternator mount

Specifications

• Part No.: BXH1230N
• Brand: Bosch
• Power rating: 110A
• Voltage: 12V
• Warranty: One year
• New / Reman.: New
• Unit of measure: Each
• Alternator mount: Twin Leg

Vehicle fitment

• Nissan Maxima
• Nissan Maxima / Maxima QX
• Nissan Maxima / Maxima QX 1990
• Nissan Maxima / Maxima QX 1991
• Nissan Maxima / Maxima QX 1992
• Nissan Maxima / Maxima QX 1993
• Nissan Maxima / Maxima QX 1994
• Nissan Maxima / Maxima QX 1999

Application and Buying Notes

The safest way to choose this alternator is to match the part number BXH1230N, then confirm the mounting style and dimensions on the vehicle. The important checks here are the Twin Leg mount, 82mm inside mounting legs, 158mm mount centre to centre, 10mm pivot hole, and M8x1.25 adjusting hole.

Electrical output also matters. This unit is rated at 110A and 12V, with an internal regulator, so it should only be compared with the vehicle’s required charging system specification and the alternator already fitted. Matching the pulley layout is just as important, because this unit uses a 6 groove pulley with a 63mm outside diameter.

The rotation direction is CW, which needs to align with the application. If the existing alternator differs in mount type, pulley section, regulator arrangement, or rotation, do not rely on appearance alone. Use the measured details and the vehicle application list as the final check before ordering.

Because this is a Bosch alternator supplied new, it is intended as a direct replacement where the physical and electrical details match. If you are working from an existing unit, compare the label, connector arrangement, and mounting points against the listed specifications before installation to avoid unnecessary returns or delays.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number BXH1230N helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type ALTERNATOR, Unit of Measure EACH, Warranty One Year, Inside Mounting Legs 82mm, Pivot Hole Diameter 10, Pulley Outside Diameter 63mm, Regulator Type Internal, Suits Unit Make Bosch, Alternator Mount Twin Leg, New / Reman. New.

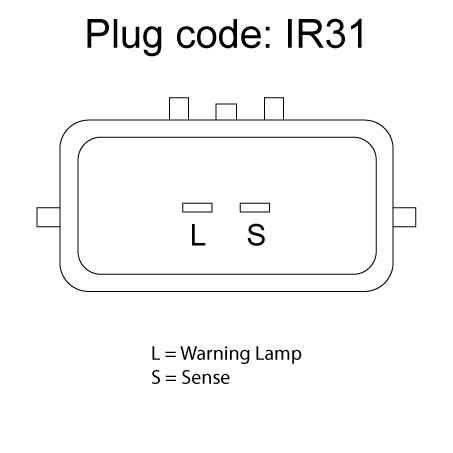

Additional published details for cross-checking include Product Group 2 ALTERNATORS, Part No. BXH1230N, Brand BOSCH, Description Bosch Alternator 12V 110A, Adjusting Hole Diameter M8x1.25, Pin Code IR31, Power Rating (Amp) 110, Pulley Section 6 Groove, Rotation CW.

Bosch Alternator 12V 110A. Part number BXH1230N should be checked first. Listed voltage is 12. Listed output rating is 110. These details form the core reference points used by parts interpreters when confirming the correct replacement.

Mount style is Twin Leg. Regulator type is Internal. Pulley configuration is 6 Groove. Those physical and electrical details should line up with the original unit before the replacement is approved for fitment.

For part number BXH1230N, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a alternator in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 and output 110 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Compatibility note: Confirm fitment by matching part number BXH1230N and checking the listed vehicle application, mounting dimensions, pulley section, rotation, and regulator type against the alternator already installed on the vehicle.

FAQ

What is the part number for this alternator?

The part number is BXH1230N. For this listing, part number BXH1230N is the main reference point. Listed voltage is 12. Listed output rating is 110. Published fitment references include NISSAN MAXIMA, NISSAN MAXIMA / MAXIMA QX, NISSAN MAXIMA / MAXIMA QX 1999. These details should still be checked against the original unit before ordering.

Is this alternator new or remanufactured?

It is listed as new. For this listing, part number BXH1230N is the main reference point. Listed voltage is 12. Listed output rating is 110. Published fitment references include NISSAN MAXIMA, NISSAN MAXIMA / MAXIMA QX, NISSAN MAXIMA / MAXIMA QX 1999. These details should still be checked against the original unit before ordering.

What is the output and voltage?

It is rated at 110A and 12V. For this listing, part number BXH1230N is the main reference point. Listed voltage is 12. Listed output rating is 110. Published fitment references include NISSAN MAXIMA, NISSAN MAXIMA / MAXIMA QX, NISSAN MAXIMA / MAXIMA QX 1999. These details should still be checked against the original unit before ordering.

Does it use an internal regulator?

Yes. The regulator type is internal. For this listing, part number BXH1230N is the main reference point. Listed voltage is 12. Listed output rating is 110. Published fitment references include NISSAN MAXIMA, NISSAN MAXIMA / MAXIMA QX, NISSAN MAXIMA / MAXIMA QX 1999. These details should still be checked against the original unit before ordering.

What pulley details are listed?

It has a 6 groove pulley with a 63mm outside diameter. For this listing, part number BXH1230N is the main reference point. Listed voltage is 12. Listed output rating is 110. Published fitment references include NISSAN MAXIMA, NISSAN MAXIMA / MAXIMA QX, NISSAN MAXIMA / MAXIMA QX 1999. These details should still be checked against the original unit before ordering.

Which vehicles are listed in the fitment data?

The supplied fitment data lists Nissan Maxima and Nissan Maxima / Maxima QX applications, including model years 1990 to 1994 and 1999 to 2003. For this listing, part number BXH1230N is the main reference point. Listed voltage is 12. Listed output rating is 110. Published fitment references include NISSAN MAXIMA, NISSAN MAXIMA / MAXIMA QX, NISSAN MAXIMA / MAXIMA QX 1999. These details should still be checked against the original unit before ordering.
