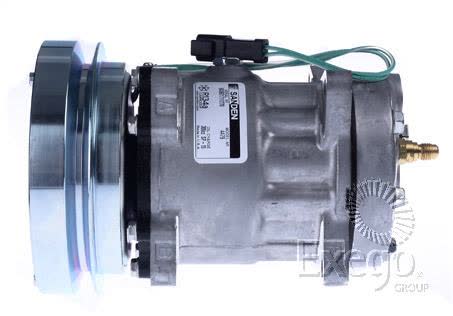

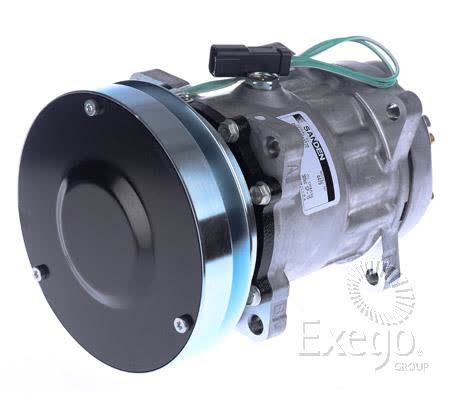

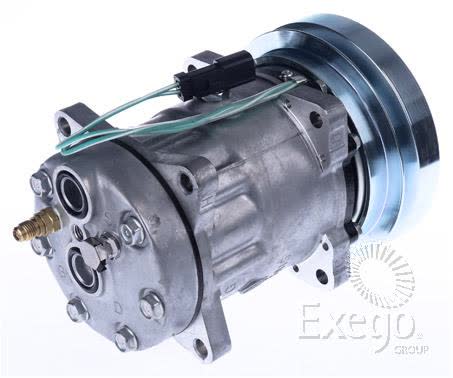

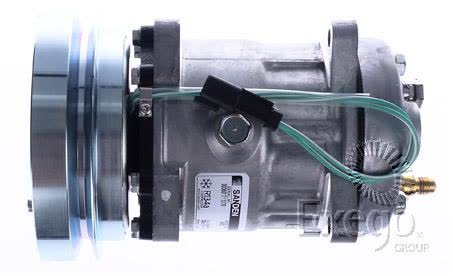

Sanden Air Conditioning Compressor 24V Ear Mount SD7H15 SHD CXS4479

This Sanden air conditioning compressor is a 24V unit with ear mount mounting, SD7H15SHD series identification, and part number CXS4479. It is listed with a 152mm clutch diameter, pad - GM fitting type, and a dust cover, so the physical mounting and connection style should be checked carefully before purchase.

The compressor is described as using oil type SP15 with a 300ml oil capacity, and the note specifies O ring to suit ORX017 x 2. It also carries a GK head code, pulley section A, gauge line 39.55mm, and SHD meaning Sealed Heavy Duty Clutch, which are all useful checks when matching the unit to an existing setup.

Application details supplied for this compressor include Caterpillar Dozer D10R from 01/1996 onwards and Loader 924G to 973C from 01/1993 onwards. The fitment list also covers a broader range of Caterpillar models, so the part number and the exact compressor style remain the best checks before ordering.

r conditioning compressor sold as each, this unit is intended for replacement work where the existing compressor’s mounting, voltage, clutch size, and line connection details match. The one year warranty is listed for this specific part, and the unit weight is 10kg.

Key Features

• 24V Sanden air conditioning compressor
• Ear mount design
• SD7H15SHD series
• Part number CXS4479
• 152mm clutch diameter
• Pad - GM fitting type

Specifications

• Brand: Sanden
• Product type: Air conditioning compressor
• Voltage: 24V
• Compressor mounting: Ear mount
• Series: SD7H15SHD
• Part number: CXS4479
• Clutch diameter: 152mm
• Fitting type: Pad - GM

Known applications

• Caterpillar Dozer D10R from 01/1996 onwards
• Caterpillar Loader 924G from 01/1993 onwards
• Caterpillar Loader 973C from 01/1993 onwards
• Listed fitment family includes Caterpillar 924G, 928G, 928GZ, 930G, 938F, 938G, 938GII, 950G, 950GII, 953C, 962G, 962GII, 963C, 963D, 963DWH, 973C, CB-634D, CP563D, CP563E, CS563D, CS573D, CS583D, D10, D10R, D10T, D5M, D6M, D6N, D6RII, D6RIII, D6T, D7E, D7EWH, D8T, D9R, D9T, IT28G, IT38GII, and IT62GII

Application and Buying Notes

Before ordering, match the part number CXS4479 against the compressor already on the machine, then compare the mounting style, voltage, and clutch dimensions. This unit is 24V with an ear mount layout and a 152mm clutch diameter, so a close physical comparison matters even where the Caterpillar application looks similar.

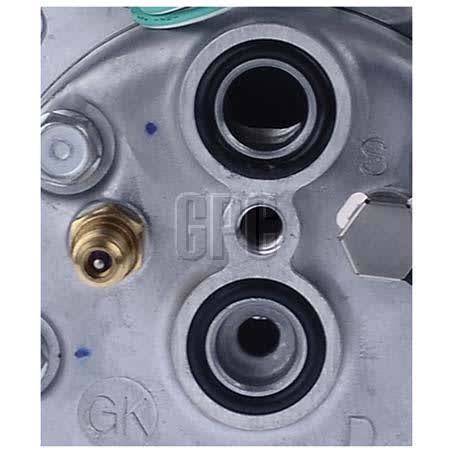

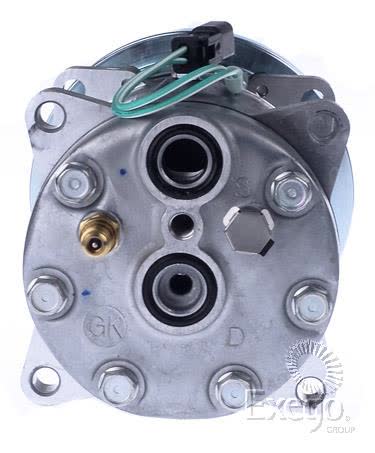

The fitting type is listed as pad - GM, which makes the connection arrangement important. If the hoses, bracket layout, or compressor head differ from the existing installation, the compressor may not suit without additional parts or reconfiguration. The GK head code and gauge line 39.55mm are useful reference points when checking an old unit.

Oil requirements should also be checked before installation. This compressor is specified with SP15 oil and a 300ml oil capacity, and the note calls for ORX017 x 2 O rings. If the system has been opened or the old compressor failed, correct oil and seal handling are important for a proper repair.

The SHD designation means Sealed Heavy Duty Clutch, which is relevant when comparing against the original compressor build. The dust cover is listed as yes, and the pulley section is A. These details help confirm the replacement is being matched to the same style of compressor already in service.

The listed Caterpillar applications provide a useful guide, but they should not replace a direct part check. Machines within the same model family can carry different compressor configurations, so the safest approach is to confirm the existing unit’s label, mounting, and connection details before committing to the order.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number CXS4479 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type AIR CONDITIONING COMPRESSOR, Unit of Measure EACH, Warranty One Year, Compressor Mounting Ear Mount, Pulley Section A, Suits Unit Make Sanden, Note O Ring to suit ORX017 x 2 Oil Type SP15 , SHD ( Sealed Heavy Duty Clutch ), Oil Capacity 300ml, Head Code GK Head.

Additional published details for cross-checking include Product Group 2 AC COMPONENTS, Part No. CXS4479, Brand SANDEN, Description Sanden Air Conditioning Compressor 24V Ear Mount SD7H15 SHD, Clutch Diameter 152mm, Fitting Type Pad - GM, Series SD7H15SHD, Voltage 24, Gauge Line 39.55mm, Dust Cover Y/N Yes.

Sanden Air Conditioning Compressor 24V Ear Mount SD7H15 SHD. Part number CXS4479 should be checked first. Listed voltage is 24. These details form the core reference points used by parts interpreters when confirming the correct replacement.

Pulley configuration is A. Those physical and electrical details should line up with the original unit before the replacement is approved for fitment.

For part number CXS4479, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

Compatibility note: Confirm fitment using part number CXS4479, the 24V ear mount configuration, and the listed Caterpillar application details before buying. Vehicle and machine variations can affect compressor style, so the existing unit should always be matched by number, mounting, clutch size, and connection layout.

FAQ

What part number identifies this compressor?

The part number listed is CXS4479.

What voltage is this compressor?

It is a 24V air conditioning compressor.

What mounting style does it use?

This compressor is listed as ear mount.

Which oil type and oil capacity are specified?

The specified oil type is SP15 and the oil capacity is 300ml.

What are the known applications supplied?

Supplied applications include Caterpillar Dozer D10R from 01/1996 onwards and Caterpillar Loader 924G to 973C from 01/1993 onwards.

Does this compressor come with a warranty?

Yes, it is listed with a one year warranty.
