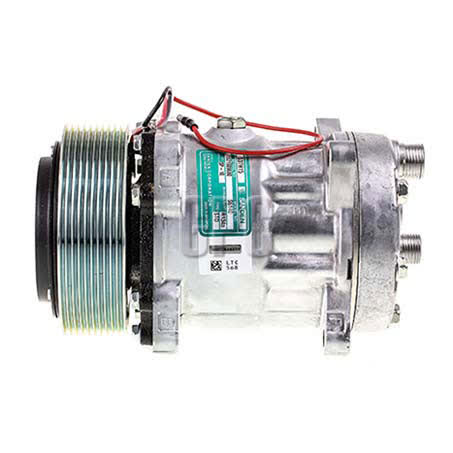

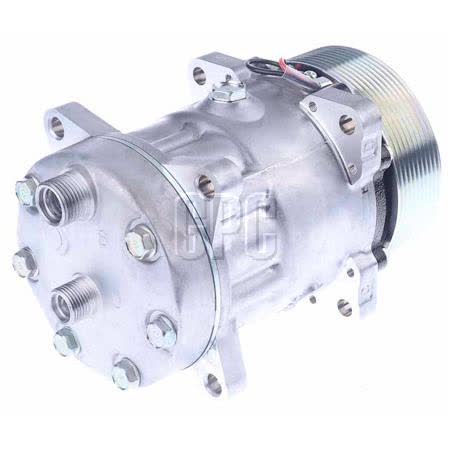

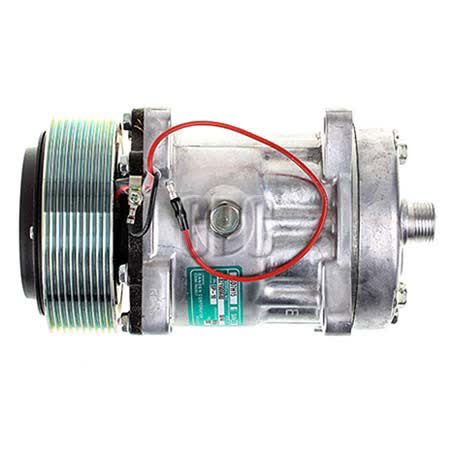

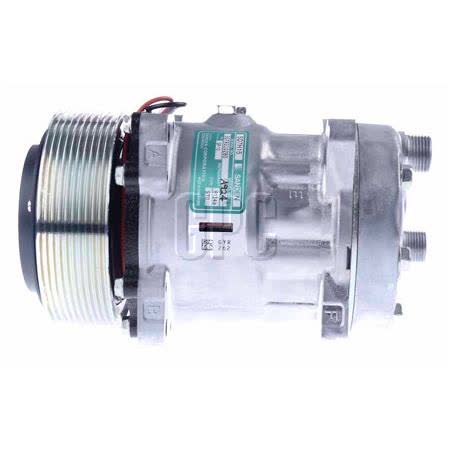

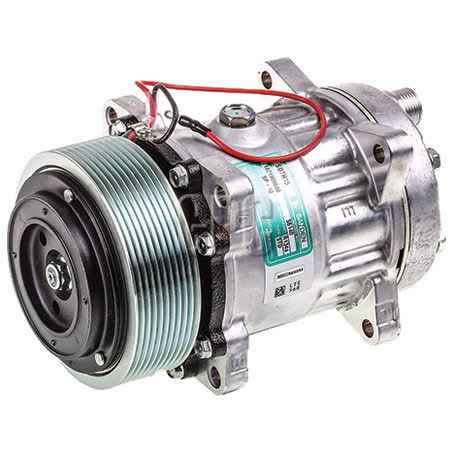

Sanden Air Conditioning Compressor 12V Ear Mount SD7H15 CXS6140

The Sanden Air Conditioning Compressor listed here is a 12V ear mount unit from the SD7H15 series, supplied under part number CXS6140. It is described as a universal SD7H15 12V 10PV 125mm horizontal E/M compressor, with a 125mm clutch diameter and 10 groove pulley section.

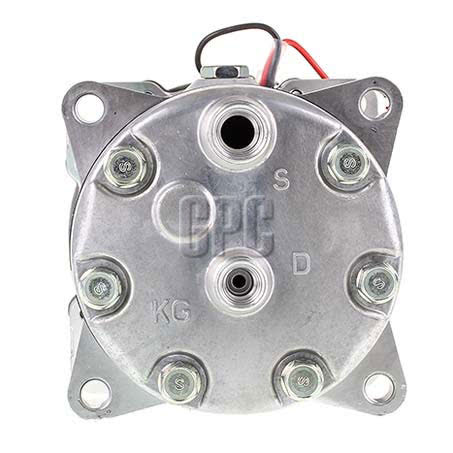

Key identification details include original equipment number 6104, KG head code, horizontal O ring fitting type, and a gauge line of 50.79mm. The unit is sold as a single compressor, with a stated weight of 7.4kg and oil capacity of 135ml.

For buyers comparing replacement compressors, the important checks here are mounting style, pulley configuration, voltage, head code, and the hose connection style. This compressor is listed as Sanden brand, SD7H15 series, 12V, with ear mount installation and O ring sealing at the fitting point.

Key Features

• Sanden air conditioning compressor
• SD7H15 series
• 12V compressor
• Ear mount design

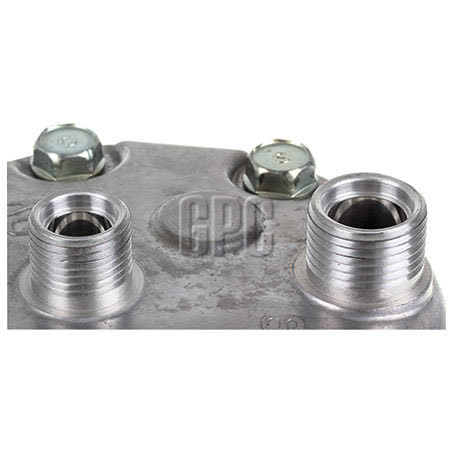

• Horizontal O ring fitting type
• 10 groove pulley section

Specifications

• Brand: Sanden
• Product type: Air conditioning compressor
• Series: SD7H15
• Voltage: 12V
• Mounting: Ear mount
• Fitting type: Horizontal O ring
• Pulley section: 10 groove

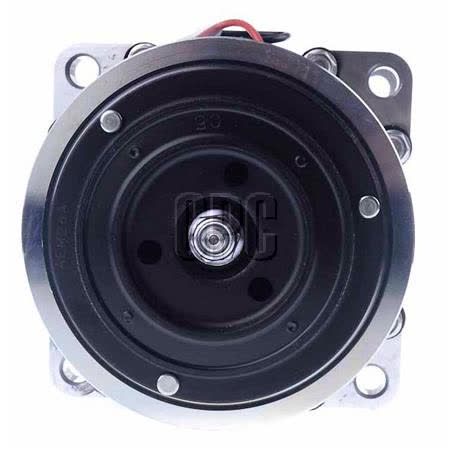

• Clutch diameter: 125mm

Application and Buying Notes

Before ordering, compare the compressor mounting style, pulley layout, and hose connection details against the unit you are replacing. This compressor is an ear mount SD7H15 with a 10 groove pulley, 125mm clutch diameter, and horizontal O ring fitting, so those details need to line up with the existing setup.

The part number CXS6140 is a practical reference point when matching a replacement, along with the original equipment number 6104 and the KG head code. These identifiers help reduce the risk of ordering a compressor that looks similar but differs in mounting, head configuration, or pulley specification.

This compressor is specified for 12V systems and uses SP10 oil, with an oil capacity of 135ml. If your vehicle or existing compressor requires a different voltage, oil type, or connector arrangement, do not assume interchangeability based on appearance alone.

At 7.4kg, this is a substantial component and should be handled as a complete replacement part rather than a minor service item. If the clutch style matters for your application, note that the clutch supplied may be fitted with a leaf spring armature.

Because fitment data has not been supplied for specific vehicle makes or models, the safest approach is to verify by compressor series, mounting type, pulley section, voltage, head code, and part number before purchase. A parts interpreter or air conditioning specialist can confirm whether the physical and connection details align with your vehicle.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number CXS6140 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type AIR CONDITIONING COMPRESSOR, Unit of Measure EACH, Warranty One Year, Compressor Mounting Ear Mount, Original Equipment Number 6104, Series SD7H15, Voltage 12, Gauge Line 50.79mm, Head Code KG Head.

Additional published details for cross-checking include Product Group 2 AC COMPONENTS, Part No. CXS6140, Brand SANDEN, Description Sanden Air Conditioning Compressor 12V Ear Mount SD7H15, Clutch Diameter 125mm, Fitting Type Horizontal O Ring, Pulley Section 10 Groove, Suits Unit Make Sanden, Note O Rings to suit ORX008 & ORX010 . Oil type SP10 Clutch supplied may be fitted with leaf spring armature., Oil Capacity 135ml.

Sanden Air Conditioning Compressor 12V Ear Mount SD7H15. Part number CXS6140 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

Pulley configuration is 10 Groove. Those physical and electrical details should line up with the original unit before the replacement is approved for fitment.

For part number CXS6140, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a air conditioning compressor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Where no verified application list is available, the part number, mounting details, connector style, and published specifications should be used as the primary selection criteria.

In the absence of a verified fitment list, the safest approach is to compare the removed unit directly with the listed product details. That includes checking the housing style, pulley layout, regulator arrangement, and any visible identification numbers before supply is approved.

Compatibility note: Confirm compatibility by matching the part number CXS6140, SD7H15 series, 12V specification, ear mount arrangement, 10 groove pulley, horizontal O ring fitting, and head code KG Head against the compressor currently fitted to the vehicle.

FAQ

What type of compressor is this?

It is a Sanden air conditioning compressor, SD7H15 series, with a 12V specification and ear mount design. The listed part number is CXS6140.

Does this compressor use O ring fittings?

Yes. The fitting type is listed as horizontal O ring. The note also states O rings to suit ORX008 and ORX010.

What pulley and clutch details are listed?

The compressor has a 10 groove pulley section and a 125mm clutch diameter. The notes also say the clutch supplied may be fitted with a leaf spring armature.

What oil specification is listed?

The listed oil type is SP10 and the oil capacity is 135ml.

Is vehicle fitment confirmed for specific makes or models?

No specific vehicle makes or models are provided. Fitment should be confirmed by matching the part number, mounting style, pulley section, voltage, head code, and connection type.

What warranty is supplied with this compressor?

The listed warranty is one year.
