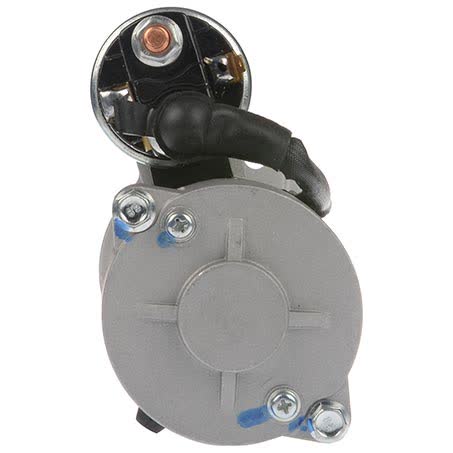

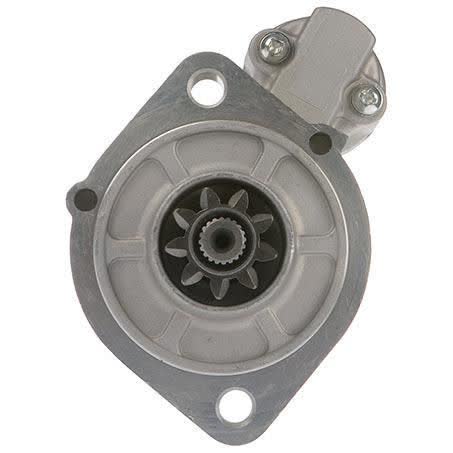

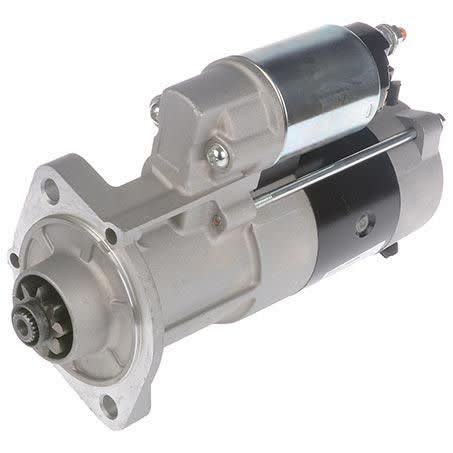

OEX Starter Motor 12V 9T CW Mitsubishi Style MXS2031

The OEX Starter Motor MXS2031 is a new 12V starter motor with 9 teeth, clockwise rotation and a Mitsubishi style layout. It is listed with a 2 hole starter mount type, 82mm flange diameter and 105mm mount centres A, so those physical checks matter as much as the voltage when comparing against the original unit.

This unit is rated at 2.5kW and has a pinion at rest measurement of 26mm, with a 35mm pinion diameter and 11mm mount hole diameter. The overall length is 287mm and the starter weighs 6.82kg, which gives a good set of matching points when confirming replacement against the removed starter.

OEX identifies this starter as suitable for Mitsubishi units, and the listed application data also points to a wider range of equipment fitments across Caterpillar, Hitachi, Hyundai Construction, John Deere, Kubota and Merlo applications. Even with that range, the safest purchase is still the one matched by part number MXS2031, 12V specification and the starter’s mounting dimensions.

Key Features

• 12V new starter motor
• 9 tooth pinion
• Clockwise rotation
• 2.5kW power rating
• 2 hole starter mount type
• Mitsubishi style unit

Specifications

• Brand: OEX
• Product type: Starter Motor
• Part No.: MXS2031
• Voltage: 12V
• Rotation: CW
• Number of teeth: 9
• Power rating: 2.5kW
• Starter mount type: 2 hole

Confirmed application groups

• Caterpillar applications listed include 236D, 242D, 246D, 257D, 259D, 262D, 272D2/XHP, 279D, 289D, 308, 308CR, 308E2CR, 308ECR, 309CR, 310, 906K, 906M, 907K, 907M, 908H II, 908K, 908M and AP300F.
• Hitachi applications listed include LX30-7 and LX50.
• Hyundai Construction application listed includes HSL850-7A.
• John Deere application grouping listed includes Series 8000.
• Kubota applications listed include KX080-3, KX080-3S, Series-M, SVL75, V3300 and V3300-T.
• Merlo application listed includes MF40.7 CS.

Application and Buying Notes

Before ordering, compare the removed starter against MXS2031 and check the 12V rating, 9 tooth pinion, clockwise rotation and 2 hole mounting pattern. The physical dimensions matter here: 105mm mount centres A, 82mm flange diameter, 11mm mount hole diameter and 287mm overall length must all line up with the vehicle or machine application.

The pinion at rest measurement of 26mm and pinion diameter of 35mm are useful reference points when confirming the starter nose and engagement area. If the original starter has a different tooth count, rotation direction or mounting face, the unit may not suit even if the vehicle appears in the application list.

The listed fitment covers a broad range of equipment families, but the correct match still depends on the exact application, build arrangement and the starter fitted to the machine. In rotating electrical parts, matching by part number and measurements is the most reliable approach, especially where Mitsubishi style starters are used across different makes.

Warranty is listed as 3 years for passenger use and 1 year for commercial use. If the starter is being fitted to commercial or industrial equipment, make sure the duty cycle and warranty terms are understood before purchase, and keep the part number, application details and mounting measurements on hand for confirmation.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number MXS2031 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Mount Centres A 105mm, Number of Teeth 9, Pinion at Rest 26mm, Power Rating 2.5kW, Suits Unit Make Mitsubishi, Item Type Starter Motor, Starter Mount Type 2 Hole.

Additional published details for cross-checking include Weight 6.82kg, Product Group 1 ROTATING ELECTRICAL, Part No. MXS2031, Brand OEX, Description OEX Starter Motor 12V 9Th CW Mitsubishi Style, Flange Diameter 82mm, Mount Hole Diameter 11, Overall Length 287mm, Pinion Diameter 35mm, Rotation CW.

OEX Starter Motor 12V 9Th CW Mitsubishi Style. Part number MXS2031 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number MXS2031, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include CATERPILLAR 236D, CATERPILLAR 236D 2014, CATERPILLAR 242D, CATERPILLAR 242D 2015, HITACHI LX30-7, HITACHI LX30-7 2003. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

Compatibility note: Confirm compatibility by checking part number MXS2031, 12V, 9 tooth CW rotation, 2 hole mounting and the listed dimensions before ordering.

FAQ

What is the part number for this starter motor?

The part number listed is MXS2031. For this listing, part number MXS2031 is the main reference point. Listed voltage is 12. Published fitment references include CATERPILLAR 236D, CATERPILLAR 236D 2014, CATERPILLAR 242D. These details should still be checked against the original unit before ordering.

Is this starter motor new or remanufactured?

It is listed as new. For this listing, part number MXS2031 is the main reference point. Listed voltage is 12. Published fitment references include CATERPILLAR 236D, CATERPILLAR 236D 2014, CATERPILLAR 242D. These details should still be checked against the original unit before ordering.

What voltage and rotation does it have?

It is a 12V starter motor with clockwise rotation. For this listing, part number MXS2031 is the main reference point. Listed voltage is 12. Published fitment references include CATERPILLAR 236D, CATERPILLAR 236D 2014, CATERPILLAR 242D. These details should still be checked against the original unit before ordering.

How many teeth does the pinion have?

The pinion has 9 teeth. For this listing, part number MXS2031 is the main reference point. Listed voltage is 12. Published fitment references include CATERPILLAR 236D, CATERPILLAR 236D 2014, CATERPILLAR 242D. These details should still be checked against the original unit before ordering.

What are the main mounting dimensions?

The listed mounting details are 2 hole starter mount type, 105mm mount centres A, 82mm flange diameter and 11mm mount hole diameter. For this listing, part number MXS2031 is the main reference point. Listed voltage is 12. Published fitment references include CATERPILLAR 236D, CATERPILLAR 236D 2014, CATERPILLAR 242D. These details should still be checked against the original unit before ordering.

Which warranty applies?

The warranty is listed as 3 years for passenger use and 1 year for commercial use. For this listing, part number MXS2031 is the main reference point. Listed voltage is 12. Published fitment references include CATERPILLAR 236D, CATERPILLAR 236D 2014, CATERPILLAR 242D. These details should still be checked against the original unit before ordering.
