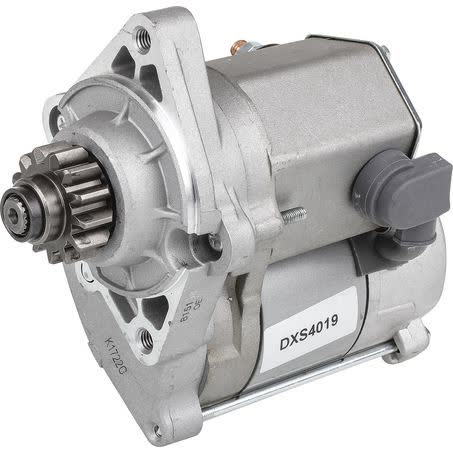

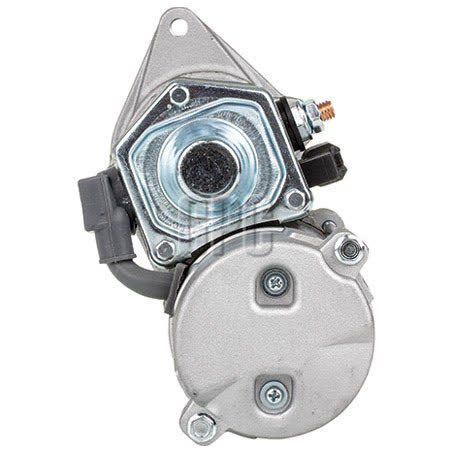

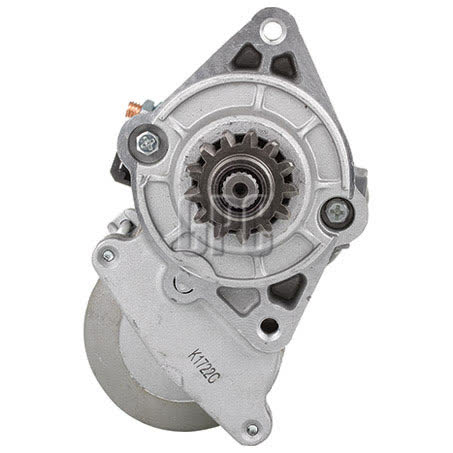

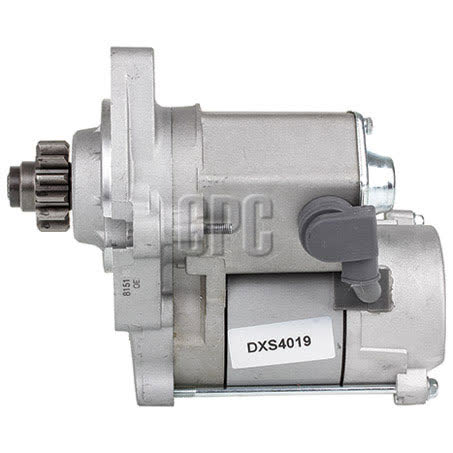

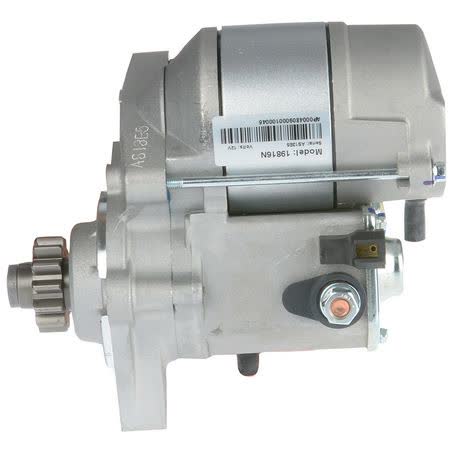

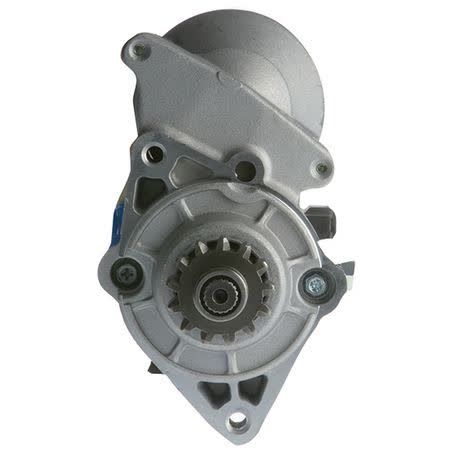

OEX Starter Motor 12V 13T CCW Denso Style DXS4019

The OEX DXS4019 starter motor is a 12V unit with 13 teeth, counter-clockwise rotation, and a Denso style configuration. It is a new starter motor, rated at 1.2kW, with a dry clutch arrangement and a 2 hole starter mount type.

Key dimensions include a 105mm mount centres A measurement, 75mm flange diameter, 190mm overall length, 40mm pinion diameter, 32mm pinion at rest, and M8x1.25 mount hole diameter. The unit weighs 3.66kg and is sold each.

This starter motor is listed for Denso applications and includes part number DXS4019. Fitment data supplied with the listing includes Kubota OC95 and Kubota OC95 1990, so matching the part number and application details is important before ordering.

Key Features

• 12V starter motor
• 13 tooth pinion
• Counter-clockwise rotation
• 1.2kW power rating
• Denso style / suits Denso unit make
• New unit

Specifications

• Brand: OEX
• Part No.: DXS4019
• Product type: Starter motor
• Unit of measure: Each
• Voltage: 12V
• Rotation: CCW
• Number of teeth: 13
• Power rating: 1.2kW

Known fitment references

• Kubota OC95
• Kubota OC95 1990

Application and Buying Notes

Check the part number DXS4019 first, then compare the listed starter details against the original unit on the vehicle. The critical identifiers here are 12V, 13 teeth, CCW rotation, Denso style, and the 2 hole starter mount type, because those are the features that most commonly need to line up for a correct replacement.

Measure the original starter where practical and compare the 105mm mount centres A, 75mm flange diameter, 190mm overall length, and M8x1.25 mount hole size. The pinion at rest dimension is 32mm and the pinion diameter is 40mm, so these dimensions can help confirm the unit matches the application before installation.

The supplied fitment references include Kubota OC95 and Kubota OC95 1990, but that does not replace a proper check of the existing starter and mounting arrangement. For older machinery especially, visual similarity is not enough if the rotation, tooth count, or mount pattern differs.

If you are replacing a starter on a Denso application, confirm the original unit’s electrical and mechanical layout, including voltage, rotation, and pinion tooth count. The 1.2kW rating and dry clutch designation are useful reference points, but the safest approach is to match the part number and dimensions against the removed component.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number DXS4019 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Mount Centres A 105mm, Number of Teeth 13, Pinion at Rest 32mm, Power Rating 1.2kW, Suits Unit Make Denso, New / Reman. New, Wet / Dry Clutch Dry.

Additional published details for cross-checking include Product Group 2 STARTER MOTORS, Part No. DXS4019, Brand OEX, Description OEX Starter Motor 12V 13Th CCW Denso Style, Flange Diameter 75mm, Mount Hole Diameter M8x1.25, Overall Length 190mm, Pinion Diameter 40mm, Rotation CCW.

OEX Starter Motor 12V 13Th CCW Denso Style. Part number DXS4019 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number DXS4019, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include KUBOTA OC95, KUBOTA OC95 1990. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

Compatibility note: Confirm compatibility by matching part number DXS4019, 12V voltage, 13 tooth count, CCW rotation, Denso style fitment, and the mounting dimensions before purchase.

FAQ

What is the part number for this starter motor?

The part number is DXS4019. For this listing, part number DXS4019 is the main reference point. Listed voltage is 12. Published fitment references include KUBOTA OC95, KUBOTA OC95 1990. These details should still be checked against the original unit before ordering.

What voltage is this starter motor?

It is a 12V starter motor. For this listing, part number DXS4019 is the main reference point. Listed voltage is 12. Published fitment references include KUBOTA OC95, KUBOTA OC95 1990. These details should still be checked against the original unit before ordering.

How many teeth does the pinion have?

The starter has 13 teeth. For this listing, part number DXS4019 is the main reference point. Listed voltage is 12. Published fitment references include KUBOTA OC95, KUBOTA OC95 1990. These details should still be checked against the original unit before ordering.

What is the rotation direction?

It is counter-clockwise (CCW). For this listing, part number DXS4019 is the main reference point. Listed voltage is 12. Published fitment references include KUBOTA OC95, KUBOTA OC95 1990. These details should still be checked against the original unit before ordering.

What vehicle or application references are listed?

The supplied fitment references are Kubota OC95 and Kubota OC95 1990. For this listing, part number DXS4019 is the main reference point. Listed voltage is 12. Published fitment references include KUBOTA OC95, KUBOTA OC95 1990. These details should still be checked against the original unit before ordering.

What warranty is listed for this starter motor?

The listed warranty is 3 years for passenger use and 1 year for commercial use. For this listing, part number DXS4019 is the main reference point. Listed voltage is 12. Published fitment references include KUBOTA OC95, KUBOTA OC95 1990. These details should still be checked against the original unit before ordering.
