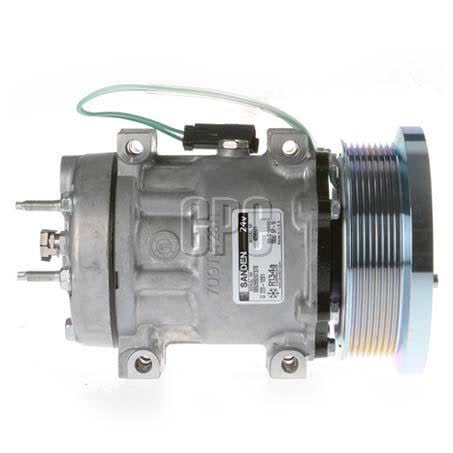

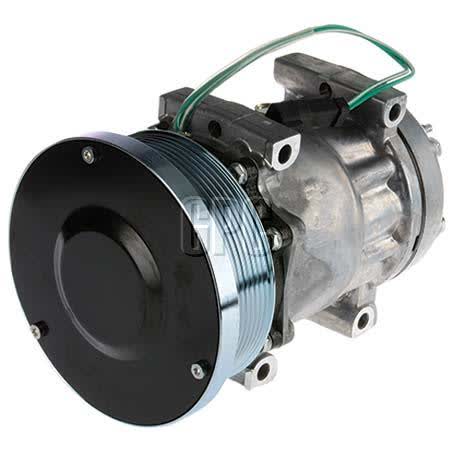

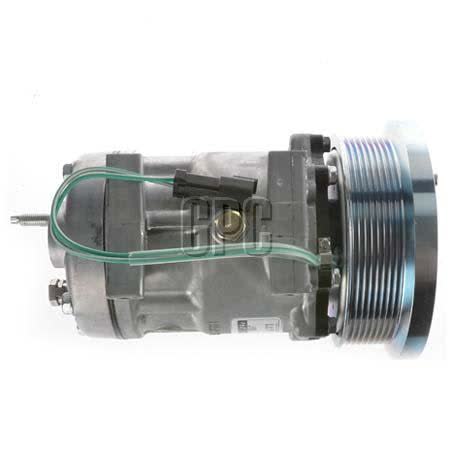

Sanden Air Conditioning Compressor 24V Direct Mount SD7H15 SHD CXS4095

The Sanden air conditioning compressor listed here is a 24V direct mount unit in the SD7H15SHD series, supplied as part number CXS4095. It is specified with a horizontal pad fitting type, an 8 groove pulley section, a 133mm clutch diameter, and an NSS head, so the mounting style and connection details need to match the vehicle application exactly.

This compressor is listed with a one year warranty and a weight of 9.37kg. It is supplied with a dust cover and has an oil capacity of 180ml, with SP15 oil type noted. Those details are important when comparing against an existing compressor, especially where the original unit is being replaced rather than the whole A/C system.

Application notes supplied for this part include Caterpillar dump trucks 775D and 777B/C/D/F/G from 01/1990 onward, plus excavator models 320, 323 and 330 from 01/2006 onward. The broader fitment information also references a range of Caterpillar machine models, so confirming the exact machine, build year and compressor style remains essential before ordering.

Key Features

• 24V Sanden air conditioning compressor
• Direct mount design
• SD7H15SHD series
• Part number CXS4095
• Original equipment number 4095U1
• Horizontal pad fitting type

Specifications

• Type: air conditioning compressor
• Brand: Sanden
• Unit of measure: each
• Voltage: 24V
• Compressor mounting: direct mount
• Series: SD7H15SHD
• Part no.: CXS4095
• Original equipment number: 4095U1

Known application details

• Caterpillar dump truck 775D
• Caterpillar dump truck 777B
• Caterpillar dump truck 777C
• Caterpillar dump truck 777D
• Caterpillar dump truck 777F
• Caterpillar dump truck 777G
• Caterpillar excavator 320
• Caterpillar excavator 323

Application and Buying Notes

Before ordering, compare the part number CXS4095 and the original equipment number 4095U1 with the compressor currently fitted to the machine. The mounting style is direct mount, the fitting type is horizontal pad, and the pulley is an 8 groove design, so a close match on these points is just as important as the 24V electrical specification.

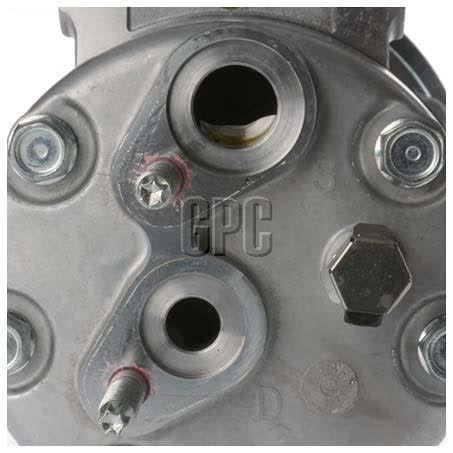

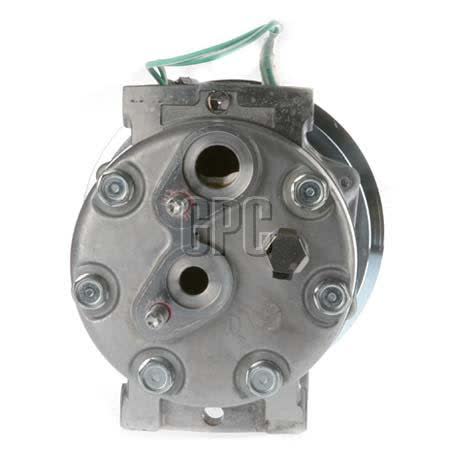

The 133mm clutch diameter and NSS head are useful identifiers when checking interchange. If the existing compressor has a different clutch size, head type or hose connection arrangement, it may not suit even if the machine model looks similar. That is particularly relevant on Caterpillar equipment where the same model family can cover multiple build dates and component variants.

The supplied application notes point to Caterpillar dump truck 775D and 777B/C/D/F/G from 01/1990 onward, plus excavators 320, 323 and 330 from 01/2006 onward. Because the fitment list also spans a wider Caterpillar range, the safest approach is to confirm the exact model, build year, and the compressor details already on the machine before purchase.

At 9.37kg, this is a substantial component and should be handled accordingly during fitment. The unit is supplied with a dust cover, which is a practical detail to note when the compressor is stored prior to installation or when the system is open during service.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number CXS4095 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type AIR CONDITIONING COMPRESSOR, Unit of Measure EACH, Warranty One Year, Compressor Mounting Direct Mount, Original Equipment Number 4095U1, Series SD7H15SHD, Voltage 24, Oil Capacity 180ml, Head Code NSS Head.

Additional published details for cross-checking include Product Group 2 AC COMPONENTS, Part No. CXS4095, Brand SANDEN, Description Sanden Air Conditioning Compressor 24V Direct Mount SD7H15 SHD, Clutch Diameter 133mm, Fitting Type Horizontal Pad, Pulley Section 8 Groove, Suits Unit Make Sanden, Note Oil Type SP15, Dust Cover Y/N Yes.

Sanden Air Conditioning Compressor 24V Direct Mount SD7H15 SHD. Part number CXS4095 should be checked first. Listed voltage is 24. These details form the core reference points used by parts interpreters when confirming the correct replacement.

Pulley configuration is 8 Groove. Those physical and electrical details should line up with the original unit before the replacement is approved for fitment.

For part number CXS4095, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a air conditioning compressor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 24 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include CATERPILLAR 120M, CATERPILLAR 120M 2008, CATERPILLAR 140M-3, CATERPILLAR 140M-3 2016. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

The listed warranty is One Year. Warranty terms should be considered alongside correct application and part identification, as warranty does not replace fitment confirmation.

Compatibility note: Confirm fitment using part number CXS4095, OE number 4095U1, the 24V direct mount specification, and the horizontal pad / 8 groove / 133mm clutch details before ordering.

FAQ

What is the part number for this compressor?

The part number listed is CXS4095.

What is the original equipment number?

The original equipment number listed is 4095U1.

What voltage is this compressor?

It is a 24V compressor.

What mounting style does it use?

It is listed as a direct mount compressor with a horizontal pad fitting type.

Which Caterpillar applications are specifically noted?

The supplied application notes list Caterpillar dump truck 775D and 777B/C/D/F/G from 01/1990 onward, plus excavator 320, 323 and 330 from 01/2006 onward.

What are the key physical identifiers to check before buying?

Check the 133mm clutch diameter, 8 groove pulley section, NSS head, direct mount design, and the 24V specification against the unit already fitted to the machine.
