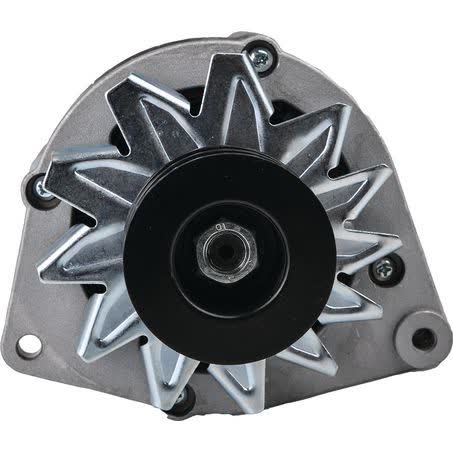

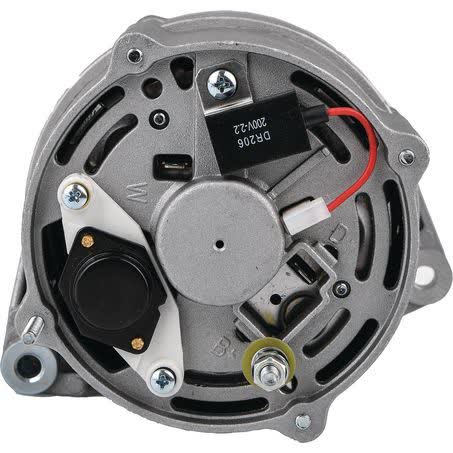

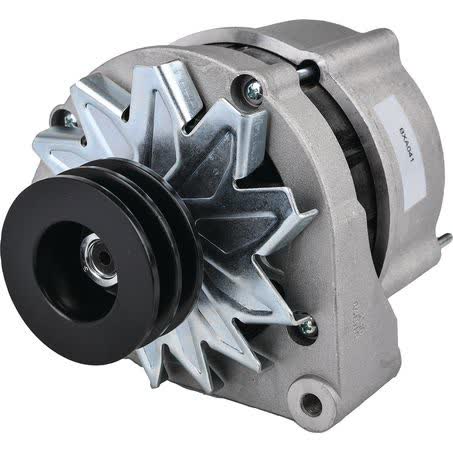

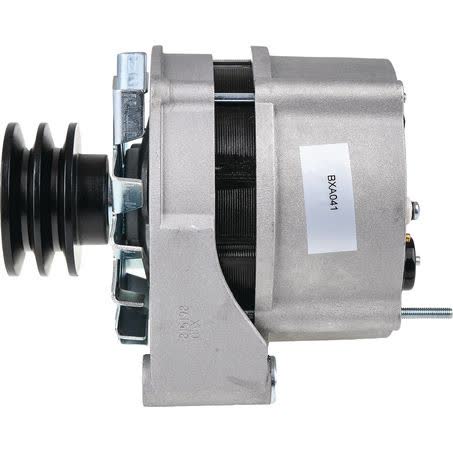

OEX Alternator 12V 55A Bosch Style BXA041

The OEX Alternator BXA041 is a new 12V, 55A unit in Bosch style, supplied as a single-leg alternator with internal regulator. Key physical details include a 69mm outside diameter pulley, AA pulley section, 144mm mount centre-to-centre, 56mm mount leg thickness, 8mm pivot hole diameter, 8mm adjusting hole diameter, and a 17 shaft dimension.

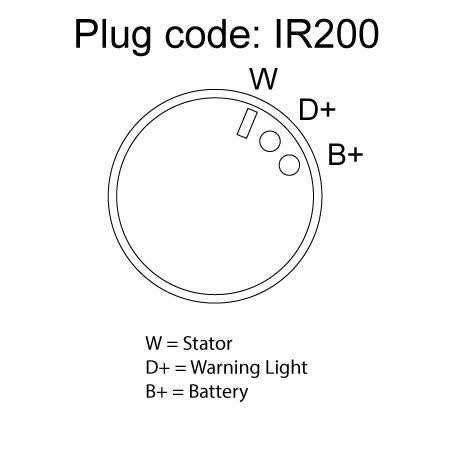

This alternator is listed for Bosch applications and is identified with pin code IR200. At 5.02kg, it is a substantial rotating electrical component, so matching the mounting points, pulley arrangement, and electrical setup matters as much as the amperage rating when checking replacement suitability.

OEX states its range is sourced from market leading original equipment manufacturers and aftermarket suppliers, with production from ISO9001 certified factories. The part is backed by a 3 year passenger / 1 year commercial warranty, which gives a clear commercial context for how the unit is positioned in the range.

For buyers comparing replacements, the most important identifiers here are part number BXA041, Bosch style, 12V system voltage, 55A output, internal regulator, and single-leg mount. Those details should be checked alongside the vehicle or equipment application before ordering.

Key Features

• New OEX alternator
• 12V system voltage
• 55A power rating
• Bosch style unit
• Internal regulator
• Single-leg alternator mount

Specifications

• Brand: OEX
• Product type: Alternator
• Part No.: BXA041
• Description: OEX Alternator 12V 55A Bosch Style
• Voltage: 12V
• Power Rating: 55A
• Regulator Type: Internal
• Suits Unit Make: Bosch

Application and fitment references

• AGCO Allis 9670 and 9690 applications are listed
• Bomag BC601RB is listed
• Deutz F3L913 applications are listed
• Deutz-Fahr Agroprima and Agrostar applications are listed
• Fendt Farmer applications are listed
• JLG 600AJ, 660SJ, 800AJ and 860SJ applications are listed
• Linde H40 applications are listed
• Steyr 8085 and 8085A applications are listed

Application and Buying Notes

Before buying, compare the part number BXA041 with the existing alternator and check that the unit is Bosch style with a single-leg mount. The listed 12V, 55A specification and internal regulator are important because alternators are not interchangeable on appearance alone, especially when the pulley, regulator, and mounting layout differ.

The mounting measurements are practical checkpoints: 56mm mount leg thickness, 144mm mount centre-to-centre, and 8mm pivot and adjusting holes. If any of those dimensions differ from the removed unit, the alternator may not sit correctly or line up as expected, even if the application name looks close.

Pulley details also need attention. This unit has a 69mm outside diameter pulley with an AA section and a 17 shaft dimension, so the belt profile and pulley fit should be compared carefully with the original part. That matters on equipment where belt alignment and load are already set up around a specific alternator.

The application list includes AGCO Allis, Bomag, Deutz, Deutz-Fahr, Fendt, JLG, Linde, and Steyr references, but the safest purchase check is still the actual alternator on the machine. Matching the unit make, part number, voltage, amperage, mount style, and pulley details is the best way to avoid ordering the wrong rotating electrical part.

Because this alternator is new rather than remanufactured, it is intended as a direct replacement style unit for compatible Bosch applications. Even so, compatibility should be confirmed against the vehicle or equipment details before fitment, particularly when the same model family can use different charging systems or mounting arrangements.

For commercial use, the warranty is listed as 1 year, while passenger use is listed as 3 years. That is worth noting when choosing the unit for fleet, agricultural, or equipment applications, especially where uptime and replacement planning are part of the buying decision.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number BXA041 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type ALTERNATOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Mount Leg Thickness 56mm, Pivot Hole Diameter 8, Pulley Outside Diameter 69mm, Regulator Type Internal, Voltage 12, Mount Cnt to Cnt 144mm, Shaft Dimension 17.

Additional published details for cross-checking include Product Group 2 ALTERNATORS, Part No. BXA041, Brand OEX, Description OEX Alternator 12V 55A Bosch Style, Adjusting Hole Diameter 8, Pin Code IR200, Power Rating (Amp) 55, Pulley Section AA, Suits Unit Make Bosch.

OEX Alternator 12V 55A Bosch Style. Part number BXA041 should be checked first. Listed voltage is 12. Listed output rating is 55. These details form the core reference points used by parts interpreters when confirming the correct replacement.

Mount style is Single Leg. Regulator type is Internal. Pulley configuration is AA. Those physical and electrical details should line up with the original unit before the replacement is approved for fitment.

For part number BXA041, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

Compatibility note: Confirm fitment by matching part number BXA041, Bosch style application details, 12V system voltage, 55A output, internal regulator, single-leg mount, and the listed pulley and mounting dimensions against the removed alternator or vehicle specification.

FAQ

Is this alternator new or remanufactured?

It is listed as new, not remanufactured.

What is the voltage and output rating?

The alternator is 12V with a 55A power rating.

What type of regulator does it use?

It uses an internal regulator.

What part number should I match before ordering?

The part number is BXA041.

What mounting measurements are provided?

Listed measurements include 56mm mount leg thickness, 144mm mount centre-to-centre, 8mm pivot hole diameter, and 8mm adjusting hole diameter.

Which units or applications are listed in the fitment data?

The fitment references include AGCO Allis 9670 and 9690, Bomag BC601RB, Deutz F3L913, Deutz-Fahr Agroprima and Agrostar, Fendt Farmer, JLG 600AJ, 660SJ, 800AJ and 860SJ, Linde H40, and Steyr 8085 and 8085A.
