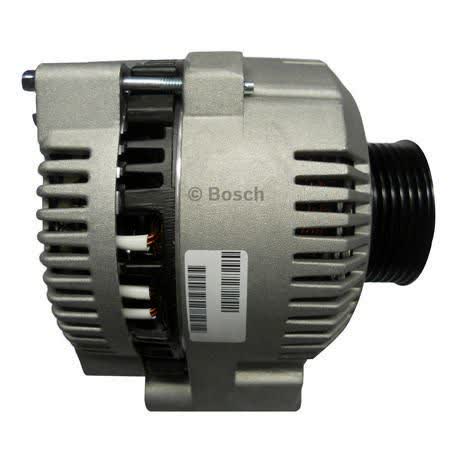

Bosch Alternator 12V 95A BXA1201N

This Bosch alternator is a new 12V, 95A unit with part number BXA1201N. It is specified with an internal regulator, clockwise rotation, a 6 groove pulley, and a single leg alternator mount, so it is important to compare the physical layout and electrical requirements before ordering.

The listed mounting details are specific: 76mm mount leg thickness, 11mm pivot hole diameter, and M8 x 1.25 adjusting hole diameter. Those measurements matter when matching the alternator to the vehicle bracket and belt drive arrangement, particularly where the original unit has limited clearance or a fixed mounting position.

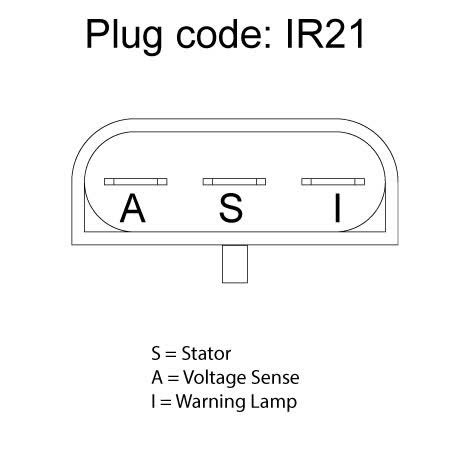

It is a Bosch unit marked IR21, sold new and covered by a one year warranty. The product is identified as a Bosch Alternator 12V 95A, and the key match points remain the part number BXA1201N, voltage, amperage, pulley type, and mount style.

Key Features

• New Bosch alternator
• 12V, 95A output
• Internal regulator
• 6 groove pulley
• Clockwise rotation
• Single leg mount

Specifications

• Brand: Bosch
• Part No.: BXA1201N
• Type: Alternator
• Voltage: 12V
• Power rating: 95A
• Regulator type: Internal
• Rotation: CW
• Pulley section: 6 groove

Fitment notes

• Fitment data references Ford applications, including Ford Fairmont and Ford Falcon.
• Sample fitment listings include Ford Fairmont 1991, 1992, and 1993.
• Because the fitment information is partial, the safest check is to compare part number BXA1201N and the mounting and pulley details against the existing alternator.
• Confirm the vehicle’s belt arrangement uses a 6 groove pulley and that the alternator mount is a single leg style before ordering.

Application and Buying Notes

When replacing an alternator, the safest match is not only the voltage and amperage, but also the mounting geometry and pulley setup. This unit is 12V, 95A, with a 6 groove pulley, internal regulator, clockwise rotation, and a single leg mount, so those details should line up with the vehicle’s existing setup.

The mounting measurements are worth checking carefully. The alternator is listed with a 76mm mount leg thickness, 11mm pivot hole diameter, and M8 x 1.25 adjusting hole diameter. If any of those points differ from the original unit, the alternator may not seat correctly or align properly with the belt.

Part number matching remains the best way to reduce errors. If the old alternator carries BXA1201N, or the vehicle is already known to suit Bosch IR21 specification with the same mount and pulley style, that gives a stronger comparison than vehicle name alone. If the existing unit is unavailable, measure the brackets and count the pulley grooves before purchasing.

This alternator is supplied new and carries a one year warranty. That gives a clear baseline for replacement work, but it does not replace the need to verify the mechanical fit. If there is any uncertainty around the application, match the alternator against the old unit or confirm the vehicle details with a qualified parts interpreter before fitting.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number BXA1201N helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type ALTERNATOR, Unit of Measure EACH, Warranty One Year, Mount Leg Thickness 76mm, Pivot Hole Diameter 11, Pulley Outside Diameter 65mm, Regulator Type Internal, Suits Unit Make Bosch, Alternator Mount Single Leg.

Additional published details for cross-checking include Product Group 2 ALTERNATORS, Part No. BXA1201N, Brand BOSCH, Description Bosch Alternator 12V 95A, Adjusting Hole Diameter M8 x 1.25, Pin Code IR21, Power Rating (Amp) 95, Pulley Section 6 Groove, Rotation CW, Voltage 12.

Bosch Alternator 12V 95A. Part number BXA1201N should be checked first. Listed voltage is 12. Listed output rating is 95. These details form the core reference points used by parts interpreters when confirming the correct replacement.

Mount style is Single Leg. Regulator type is Internal. Pulley configuration is 6 Groove. Those physical and electrical details should line up with the original unit before the replacement is approved for fitment.

For part number BXA1201N, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a alternator in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 and output 95 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include FORD FAIRMONT, FORD FAIRMONT 1991, FORD FAIRMONT 1992, FORD FAIRMONT 1993. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

The listed warranty is One Year. Warranty terms should be considered alongside correct application and part identification, as warranty does not replace fitment confirmation.

Compatibility note: Please confirm fitment by checking part number BXA1201N, the 12V 95A rating, single leg mount, 6 groove pulley, and the listed mounting measurements against the vehicle’s existing alternator and application details before ordering.

FAQ

What is the part number for this alternator?

The part number is BXA1201N.

Is this alternator new or remanufactured?

It is listed as new.

What voltage and amperage does it have?

It is a 12V alternator with a 95A power rating.

Does it have an internal regulator?

Yes, the regulator type is listed as internal.

What pulley and rotation details are listed?

It has a 6 groove pulley, a 65mm pulley outside diameter, and clockwise rotation.

What should I check before buying?

Confirm part number BXA1201N, the 12V 95A rating, single leg mount, and the listed mounting measurements: 76mm mount leg thickness, 11mm pivot hole diameter, and M8 x 1.25 adjusting hole diameter.
