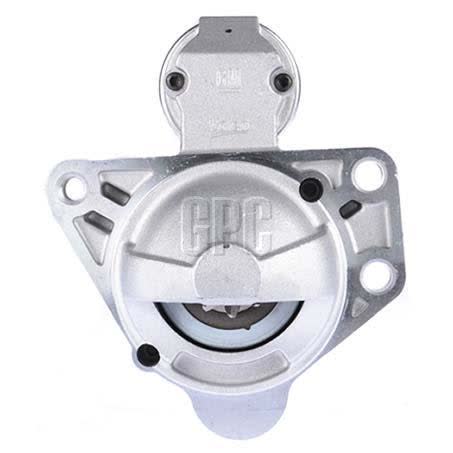

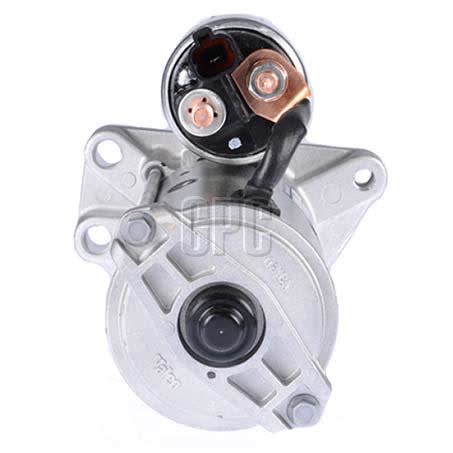

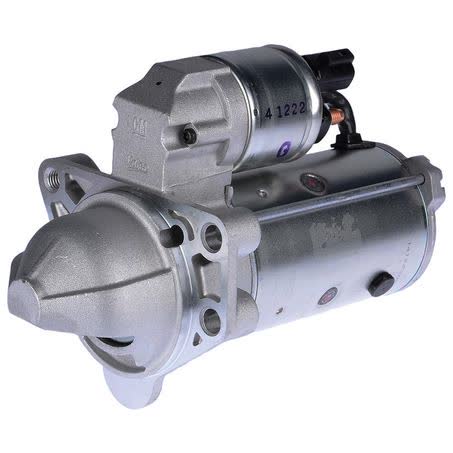

OEX Starter Motor 12V 9 Tooth CW Valeo Style VXS915

The OEX VXS915 is a new 12V starter motor with clockwise rotation and a 9 tooth pinion, built in a Valeo style configuration. It is listed as a 3 hole starter mount type with 115mm mount centres A and B, 37mm mount centres C, and an 82mm flange diameter.

Key sizing details for checking against your existing unit include an overall length of 239mm, nose cone length of 71mm, pinion diameter of 29mm, and pinion at rest of 22.3mm. The mounting thread is M10x1.5 / 10.5, which is useful when comparing physical fit before ordering.

This starter motor is rated at 2kW and weighs 4kg. It suits Valeo unit make applications, and the listed OEM number is 25183761. The part number is VXS915, which should be matched carefully when confirming replacement compatibility.

Key Features

• 12V starter motor
• Clockwise rotation
• 9 tooth pinion
• 2kW power rating
• New unit, not remanufactured
• 3 hole starter mount type

Specifications

• Part No.: VXS915
• OEM Number: 25183761
• Voltage: 12V
• Power Rating: 2kW
• Rotation: CW
• Number of Teeth: 9
• Starter Mount Type: 3 Hole
• Flange Diameter: 82mm

Fitment guidance

• No vehicle fitment list has been verified here, so use the part number, OEM number, and physical measurements to confirm application before purchase.
• Suits Valeo unit make applications only where the original starter matches the listed configuration, including 12V, CW rotation, 9 tooth pinion, and 3 hole mount type.

Application and Buying Notes

For replacement starters, matching the part number and physical dimensions is just as important as matching voltage. The OEX VXS915 is a 12V unit with clockwise rotation, 9 teeth, a 2kW power rating, and a 3 hole mount pattern, so it should only be considered where those details line up with the existing starter and the vehicle application.

The measurements are there to help avoid trial-and-error fitting. Check the 115mm mount centres A and B, 37mm mount centres C, 82mm flange diameter, 71mm nose cone length, 239mm overall length, and M10x1.5 / 10.5 mount hole diameter against the removed unit before ordering.

This starter is listed as suited to Valeo unit make applications, which is helpful when the original part is Valeo style or cross-referenced to Valeo numbering. The OEM number shown is 25183761, and the OEX part number is VXS915, so either identifier can be used as a comparison point during parts matching.

The warranty listed is 3 years for passenger use and 1 year for commercial use. That warranty detail does not replace fitment checking, but it does give a useful reference when deciding whether the unit suits the vehicle’s duty cycle and the owner’s expectations.

Because starter motors vary by rotation, tooth count, nose length, and mounting arrangement, it is wise to compare the old unit side by side before installation. The listed dry clutch type, pinion diameter of 29mm, and pinion at rest of 22.3mm are all relevant checkpoints when confirming the replacement is the same style.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number VXS915 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Mount Centres A 115mm, Mount Centres C 37mm, Nose Cone Length 71mm, Overall Length 239mm, Pinion Diameter 29mm, Rotation CW, Voltage 12.

Additional published details for cross-checking include New / Reman. New, Wet / Dry Clutch Dry, Weight 4kg, Product Group 1 ROTATING ELECTRICAL, Part No. VXS915, Brand OEX, Description OEX Starter Motor 12V 9Th CW Valeo Style, Flange Diameter 82mm, Mount Centres B 115mm, Mount Hole Diameter M10x1.5 / 10.5.

OEX Starter Motor 12V 9Th CW Valeo Style. Part number VXS915 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number VXS915, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include HOLDEN CAPTIVA 5, HOLDEN CAPTIVA 5 2011, HOLDEN CAPTIVA 5 2012, HOLDEN CAPTIVA 5 2013. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

Compatibility note: Confirm fitment using the VXS915 part number, OEM number 25183761, and the listed physical measurements before purchase. Do not rely on visual similarity alone, as starter rotation, tooth count, mount type, and dimensions must all match the original unit.

FAQ

What type of starter motor is this?

It is an OEX starter motor, new, 12V, clockwise rotation, with a 9 tooth pinion and a 2kW power rating.

What part number should I match?

The listed OEX part number is VXS915. The OEM number shown is 25183761.

What mounting details are listed?

It is a 3 hole starter mount type with 115mm mount centres A, 115mm mount centres B, and 37mm mount centres C. The flange diameter is 82mm.

What dimensions should I check before buying?

Check the overall length of 239mm, nose cone length of 71mm, pinion diameter of 29mm, pinion at rest of 22.3mm, and mount hole diameter of M10x1.5 / 10.5.

What warranty is listed?

The warranty is listed as 3 years for passenger use and 1 year for commercial use.

Does this listing confirm exact vehicle fitment?

No vehicle fitment list is verified in the product details here. Fitment should be confirmed using the part number, OEM number, and the listed dimensions and mount details.
