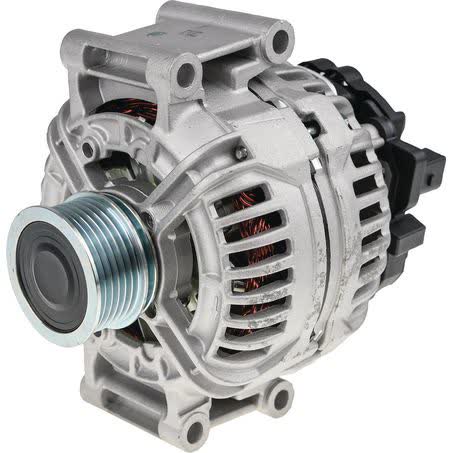

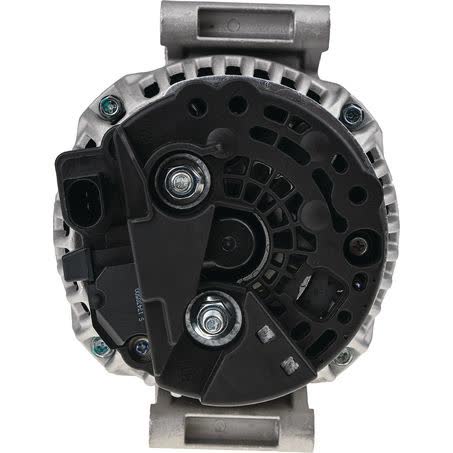

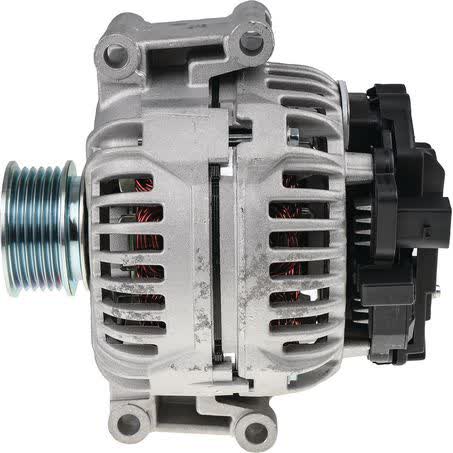

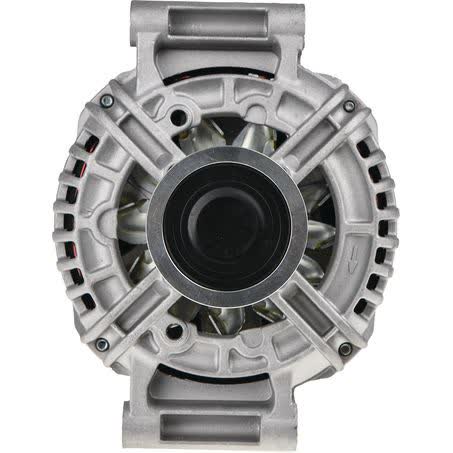

OEX Alternator 12V 140A Bosch Style BXA047

The OEX Alternator BXA047 is a 12V, 140A unit built in Bosch style with a pad mount arrangement. It is a new alternator, not remanufactured, and it uses an internal regulator for applications that call for that configuration.

Key physical details matter with this unit: it has a 56mm pulley outside diameter, a 6 groove pulley section, a 70mm mount leg thickness, and 9.5mm pivot and adjusting holes. Those measurements are the sort of details that need to line up before ordering.

This alternator sits in the rotating electrical category and is listed with a weight of 6.6kg. The unit is identified by Part No. BXA047 and Pin Code IR161, which are the best reference points when matching against the vehicle or the removed original alternator.

Key Features

• 12V alternator with 140A power rating
• Bosch style unit
• Internal regulator
• New unit, not remanufactured
• Pad mount alternator
• 6 groove pulley section

Specifications

• Voltage: 12V
• Power rating: 140A
• Regulator type: Internal
• Suits unit make: Bosch
• Alternator mount: Pad
• Pulley outside diameter: 56mm
• Pulley section: 6 groove
• Mount leg thickness: 70mm

Fitment guidance

• Fitment is listed against multiple Audi applications, including A3, A4, A4 Allroad, A5, A6, Q3, Q5 and TT.
• Sample applications supplied include Audi A3 model years 2013, 2014 and 2015.
• Match the alternator by part number, mount style, pulley specification and hole diameters before ordering.

Application and Buying Notes

Before buying, compare the removed alternator with BXA047 and check the Bosch style, pad mount design, internal regulator and 12V 140A rating. Those points are the main indicators that the replacement will suit the vehicle’s charging system and mounting arrangement.

The physical dimensions are just as important as the electrical rating. This unit has a 56mm pulley outside diameter, a 6 groove pulley section, 70mm mount leg thickness, and 9.5mm pivot and adjusting holes. If any of those details differ on the original unit, the alternator may not bolt up or line up correctly.

If you are replacing a Bosch unit, use the part number, pin code IR161, and the mounting and pulley details together. Alternators can look similar from the outside but differ in regulator type, pulley configuration, or bracket spacing, so it is worth confirming the original unit carefully before purchase.

The warranty is listed as 3yr Passenger and 1yr Commercial. That gives a useful reference for expected use, but the correct application match still depends on the vehicle setup and the alternator specification. Commercial vehicles and passenger vehicles are covered differently, so keep that in mind when choosing the part.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number BXA047 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type ALTERNATOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Mount Leg Thickness 70mm, Pivot Hole Diameter 9.5, Pulley Outside Diameter 56mm, Regulator Type Internal, Voltage 12, New / Reman. New.

Additional published details for cross-checking include Product Group 2 ALTERNATORS, Part No. BXA047, Brand OEX, Description OEX Alternator 12V 140A Bosch Style, Adjusting Hole Diameter 9.5, Pin Code IR161, Power Rating (Amp) 140, Pulley Section 6 Groove, Suits Unit Make Bosch, Alternator Mount Pad.

OEX Alternator 12V 140A Bosch Style. Part number BXA047 should be checked first. Listed voltage is 12. Listed output rating is 140. These details form the core reference points used by parts interpreters when confirming the correct replacement.

Mount style is Pad. Regulator type is Internal. Pulley configuration is 6 Groove. Those physical and electrical details should line up with the original unit before the replacement is approved for fitment.

For part number BXA047, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a alternator in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 and output 140 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Compatibility note: Confirm compatibility using Part No. BXA047, Bosch style, 12V 140A rating, internal regulator, pad mount design, 6 groove pulley, and the 9.5mm pivot and adjusting holes before ordering. Fitment should always be checked against the vehicle and the original alternator details.

FAQ

What is the part number for this alternator?

The part number is BXA047. The pin code is IR161. For this listing, part number BXA047 is the main reference point. Listed voltage is 12. Listed output rating is 140. Published fitment references include AUDI A3, AUDI A3 2013, AUDI A3 2014. These details should still be checked against the original unit before ordering.

Is this alternator new or remanufactured?

This is a new alternator. For this listing, part number BXA047 is the main reference point. Listed voltage is 12. Listed output rating is 140. Published fitment references include AUDI A3, AUDI A3 2013, AUDI A3 2014. These details should still be checked against the original unit before ordering.

What electrical specification does it have?

It is a 12V alternator with a 140A power rating and an internal regulator. For this listing, part number BXA047 is the main reference point. Listed voltage is 12. Listed output rating is 140. Published fitment references include AUDI A3, AUDI A3 2013, AUDI A3 2014. These details should still be checked against the original unit before ordering.

What mounting and pulley details should I check?

Check the pad mount arrangement, 70mm mount leg thickness, 9.5mm pivot hole diameter, 9.5mm adjusting hole diameter, 56mm pulley outside diameter and 6 groove pulley section. For this listing, part number BXA047 is the main reference point. Listed voltage is 12. Listed output rating is 140. Published fitment references include AUDI A3, AUDI A3 2013, AUDI A3 2014. These details should still be checked against the original unit before ordering.

What vehicles is it listed against?

Fitment is listed against Audi applications, including A3, A4, A4 Allroad, A5, A6, Q3, Q5 and TT, with sample A3 applications including 2013, 2014 and 2015. For this listing, part number BXA047 is the main reference point. Listed voltage is 12. Listed output rating is 140. Published fitment references include AUDI A3, AUDI A3 2013, AUDI A3 2014. These details should still be checked against the original unit before ordering.

What warranty is supplied?

The listed warranty is 3 years for passenger use and 1 year for commercial use. For this listing, part number BXA047 is the main reference point. Listed voltage is 12. Listed output rating is 140. Published fitment references include AUDI A3, AUDI A3 2013, AUDI A3 2014. These details should still be checked against the original unit before ordering.
