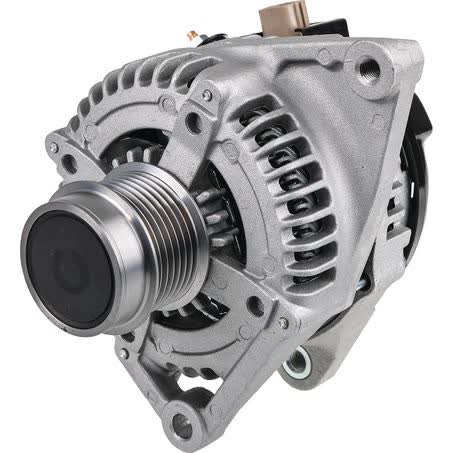

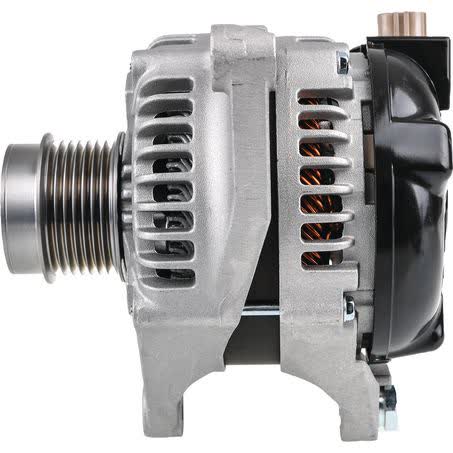

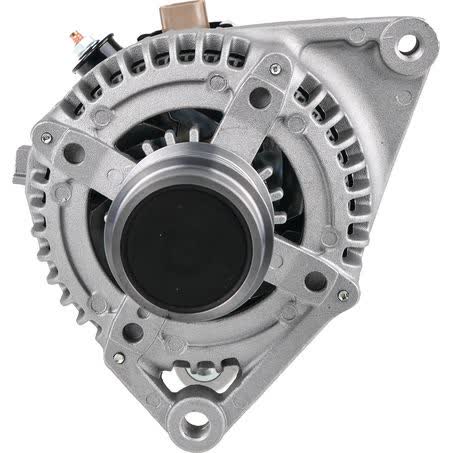

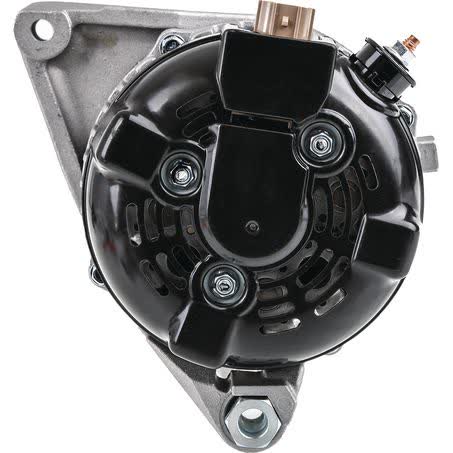

OEX Alternator 12V 100A Denso Style DXA4037

The OEX Alternator DXA4037 is a 12V, 100A unit in Denso style, supplied new and fitted with an internal regulator. It is listed as an alternator for the rotating electrical system, with a twin leg mount, 65mm inside mounting legs, and a 169mm centre-to-centre mounting dimension.

This unit is specified with a 7 groove pulley measuring 55mm outside diameter. The note supplied with the part states it is fitted with a 7 groove clutch pulley and will replace a 6 groove clutch pulley original, with the 6 grooves to be used closest to the fan. That pulley detail is important when checking pulley alignment and belt compatibility before purchase.

The part number is DXA4037, with pin code IR115 and suitability for Denso units. OEX states its products are sourced from original equipment manufacturers and aftermarket suppliers, and from ISO9001 certified factories, with a comprehensive nationwide warranty stated for the brand. Warranty listed for this alternator is 3 years passenger and 1 year commercial.

Key Features

• 12V alternator with 100A output
• New unit, not remanufactured
• Internal regulator
• Denso style, suits Denso unit make
• 7 groove pulley, 55mm outside diameter
• Twin leg alternator mount

Specifications

• Voltage: 12V
• Power rating: 100A
• Type: Alternator
• Brand: OEX
• Part No.: DXA4037
• Regulator type: Internal
• New / remanufactured: New
• Alternator mount: Twin leg

Fitment guidance

• Toyota Camry applications are listed for 2011, 2012, 2013, 2014, 2015, 2016 and 2017
• Toyota RAV4 applications are listed for 2012, 2013 and 2014
• Fitment information was supplied as grouped vehicle applications and should still be checked against the part number and pulley/mount details before ordering

Application and Buying Notes

Before you order, check that your vehicle uses a Denso-style alternator and compare the mounting dimensions on your original unit with this part. The key identifiers here are DXA4037, IR115, 12V, 100A, twin leg mount, 65mm inside mounting legs, and 169mm centre-to-centre. Those measurements are the practical checks that matter when matching the replacement.

Pulley detail should be confirmed carefully. This alternator is listed with a 7 groove clutch pulley, 55mm outside diameter, and a note that it will replace a 6 groove clutch pulley original using the 6 grooves closest to the fan. If your original alternator or belt setup differs, do not rely on appearance alone; compare the groove count, pulley offset, and mounting arrangement.

The unit is new and uses an internal regulator, so there is no need to match an external regulator setup on this part. That said, electrical compatibility still depends on the exact application and connector arrangement in the vehicle, so the pin code IR115 and the Denso unit make should be checked with the existing alternator or parts record before purchase.

If you are buying for a Toyota Camry or Toyota RAV4 application, use the model years listed alongside this part as a guide only, then confirm the physical unit on the vehicle. Alternators can vary by build specification, so the safest approach is to match part number, pulley section, mount type, and dimensions rather than relying on the vehicle badge alone.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number DXA4037 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type ALTERNATOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Inside Mounting Legs 65mm, Pivot Hole Diameter M10 x 1.5 / 11, Pulley Outside Diameter 55mm, Regulator Type Internal, Voltage 12, Alternator Mount Twin Leg, New / Reman. New.

Additional published details for cross-checking include Product Group 2 ALTERNATORS, Part No. DXA4037, Brand OEX, Description OEX Alternator 12V 100A Denso Style, Adjusting Hole Diameter M10 x 1.25, Pin Code IR115, Power Rating (Amp) 100, Pulley Section 7 Groove, Suits Unit Make Denso.

OEX Alternator 12V 100A Denso Style. Part number DXA4037 should be checked first. Listed voltage is 12. Listed output rating is 100. These details form the core reference points used by parts interpreters when confirming the correct replacement.

Mount style is Twin Leg. Regulator type is Internal. Pulley configuration is 7 Groove. Those physical and electrical details should line up with the original unit before the replacement is approved for fitment.

For part number DXA4037, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a alternator in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 and output 100 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include TOYOTA CAMRY, TOYOTA CAMRY 2011, TOYOTA CAMRY 2012, TOYOTA CAMRY 2013. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

Compatibility note: Please confirm fitment by matching the part number DXA4037, pin code IR115, Denso unit make, pulley details, and all mounting measurements against the original alternator before ordering.

FAQ

What is the part number for this alternator?

The part number is DXA4037.

Is this alternator new or remanufactured?

It is listed as new.

What voltage and output does it have?

It is a 12V alternator with a 100A power rating.

Does this unit use an internal or external regulator?

It uses an internal regulator.

What pulley setup does it have?

It has a 7 groove pulley with a 55mm outside diameter, and the note states it will replace a 6 groove clutch pulley original using the 6 grooves closest to the fan.

Which vehicles are listed in the fitment information?

The supplied fitment includes Toyota Camry applications for 2011 to 2017 and Toyota RAV4 applications for 2012 to 2014. Always confirm the part number and measurements before ordering.
