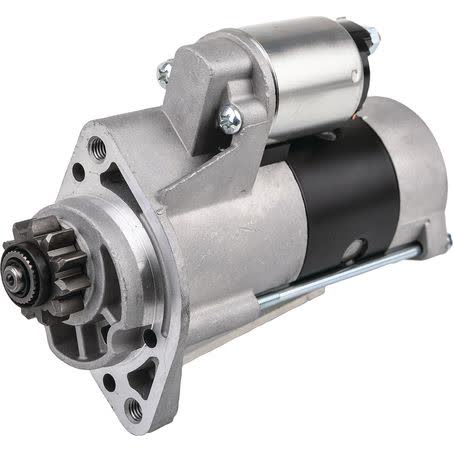

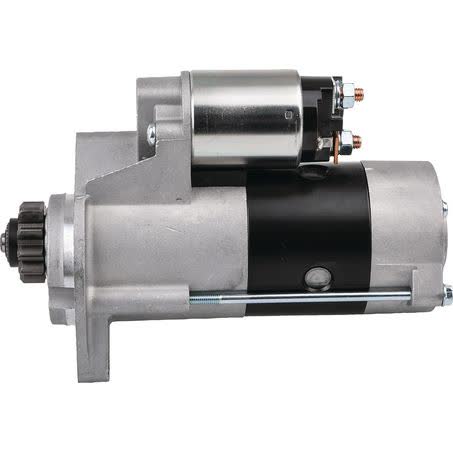

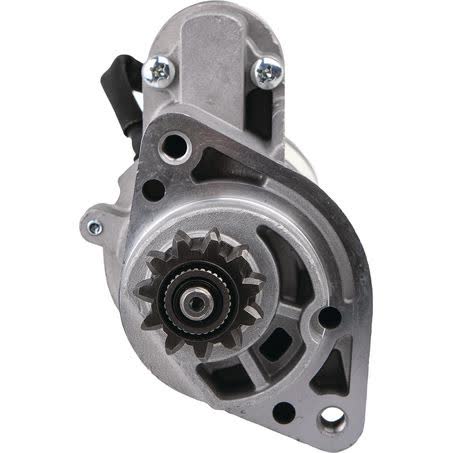

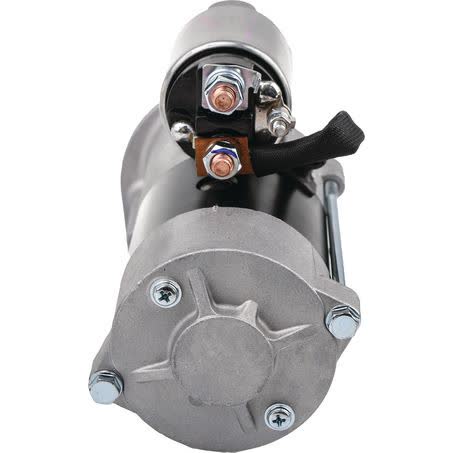

OEX Starter Motor 12V 11 Tooth CW Mitsubishi Style MXS2034

The OEX Starter Motor MXS2034 is a new 12V starter motor with 11 teeth, clockwise rotation and a 2.0kW power rating. It is listed as a Mitsubishi style unit, with a 2 hole starter mount and an inline planetary reduction geared design.

Key dimensions recorded for this unit include 108mm mount centres, a 70mm flange diameter, 234mm overall length, 43mm pinion diameter and 31mm pinion at rest. The mount hole diameter is M10x1.5, and the unit weighs 4.66kg.

This starter is described as interchangeable with 10 and 11 tooth units, but the note also says the motor assembly location in relation to the drive end housing must be confirmed against the original unit. That makes the part number MXS2034 and the physical measurements important checks before purchase.

Key Features

• 12V starter motor
• 11 tooth pinion
• Clockwise rotation
• 2.0kW power rating
• New unit
• 2 hole starter mount

Specifications

• Brand: OEX
• Part No.: MXS2034
• Type: Starter Motor
• Suits unit make: Mitsubishi
• Voltage: 12
• Rotation: CW
• Power rating: 2.0kW
• Number of teeth: 11

Confirmed fitment guidance

• NISSAN: NAVARA, NAVARA 2002, NAVARA 2003, NAVARA 2004, NAVARA 2005, plus other listed applications

Application and Buying Notes

When comparing this starter motor, start with the part number MXS2034, then check the 12V system, 11 tooth pinion, clockwise rotation and 2 hole mounting pattern against the original unit. The listed 108mm mount centres, M10x1.5 mount hole diameter and 70mm flange diameter are the most useful physical checks for matching the existing starter.

The unit is described as a Mitsubishi style starter motor and as suited to Mitsubishi. No specific vehicle models are supplied here, so the safest way to buy is to compare the original starter, the part number MXS2034, and the dimensions shown. The 234mm overall length, 43mm pinion diameter and 31mm pinion at rest are all practical reference points.

This starter is a new rotating electrical component with a 2.0kW rating and a dry clutch note. If you are replacing an older unit, it is worth checking for any differences in connector position, mounting ear layout and drive end housing orientation before fitting, particularly where previous repairs or substitutions have been made.

Warranty coverage is listed as 3 years for passenger use and 1 year for commercial use. That gives a clear benchmark for typical application, but it does not replace fitment checking. As with any starter, the safest result comes from matching the original unit’s dimensions, tooth count and rotation before installation.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number MXS2034 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Mount Centres A 108mm, Number of Teeth 11, Pinion at Rest 31mm, Power Rating 2.0kW, Suits Unit Make Mitsubishi, Note 11 tooth. Interchangeable with 10 & 11 tooth units. Inline planetary reduction geared unit, motor assembly location in relation to the drive end housing is to be confirmed against original unit., Starter Mount Type 2 Hole.

Additional published details for cross-checking include Weight 4.66kg, Product Group 1 ROTATING ELECTRICAL, Part No. MXS2034, Brand OEX, Description OEX Starter Motor 12V 11Th CW Mitsubishi Style, Flange Diameter 70mm, Mount Hole Diameter M10x1.5, Overall Length 234mm, Pinion Diameter 43mm, Rotation CW.

OEX Starter Motor 12V 11Th CW Mitsubishi Style. Part number MXS2034 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number MXS2034, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include NISSAN NAVARA, NISSAN NAVARA 2002, NISSAN NAVARA 2003, NISSAN NAVARA 2004. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

Compatibility note: Please confirm fitment with the part number MXS2034, the 12V 11 tooth CW specification and the original starter’s mounting and housing orientation before ordering.

FAQ

What is the part number for this starter motor?

The part number listed is MXS2034. For this listing, part number MXS2034 is the main reference point. Listed voltage is 12. Published fitment references include NISSAN NAVARA, NISSAN NAVARA 2002, NISSAN NAVARA 2003. These details should still be checked against the original unit before ordering.

Is this starter motor new or remanufactured?

It is listed as a new unit. For this listing, part number MXS2034 is the main reference point. Listed voltage is 12. Published fitment references include NISSAN NAVARA, NISSAN NAVARA 2002, NISSAN NAVARA 2003. These details should still be checked against the original unit before ordering.

What voltage and rotation does it have?

It is a 12V starter motor with clockwise rotation. For this listing, part number MXS2034 is the main reference point. Listed voltage is 12. Published fitment references include NISSAN NAVARA, NISSAN NAVARA 2002, NISSAN NAVARA 2003. These details should still be checked against the original unit before ordering.

How many teeth does the pinion have?

The pinion has 11 teeth, and the note says it is interchangeable with 10 and 11 tooth units. For this listing, part number MXS2034 is the main reference point. Listed voltage is 12. Published fitment references include NISSAN NAVARA, NISSAN NAVARA 2002, NISSAN NAVARA 2003. These details should still be checked against the original unit before ordering.

What mounting details are listed?

It has a 2 hole starter mount, 108mm mount centres, a 70mm flange diameter and M10x1.5 mount hole diameter. For this listing, part number MXS2034 is the main reference point. Listed voltage is 12. Published fitment references include NISSAN NAVARA, NISSAN NAVARA 2002, NISSAN NAVARA 2003. These details should still be checked against the original unit before ordering.

What should be checked before buying?

Check the part number MXS2034, the 12V CW 11 tooth specification, and the original unit’s motor assembly location in relation to the drive end housing. For this listing, part number MXS2034 is the main reference point. Listed voltage is 12. Published fitment references include NISSAN NAVARA, NISSAN NAVARA 2002, NISSAN NAVARA 2003. These details should still be checked against the original unit before ordering.
