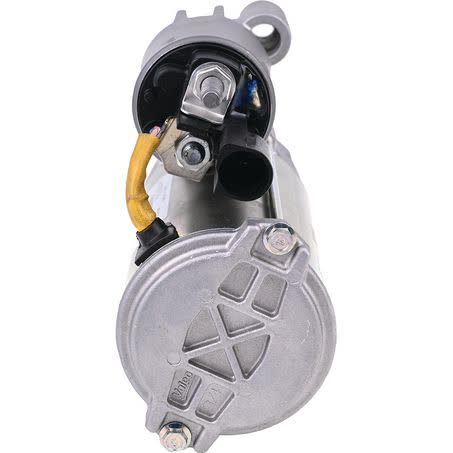

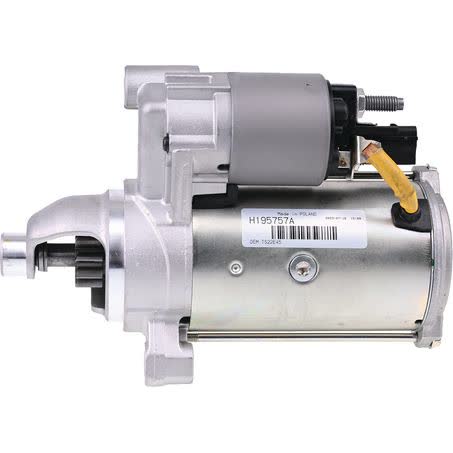

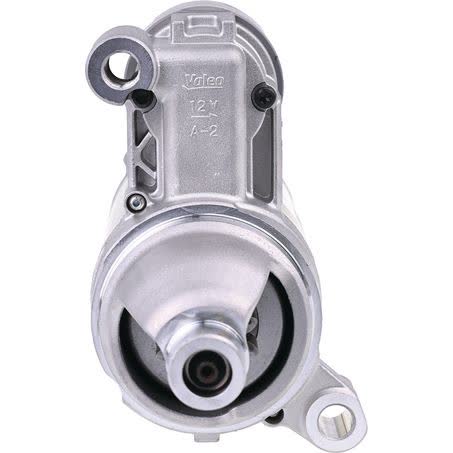

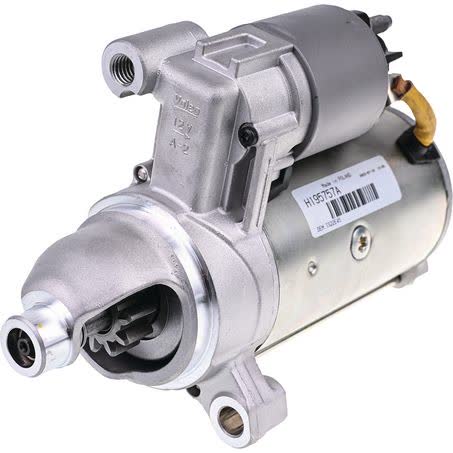

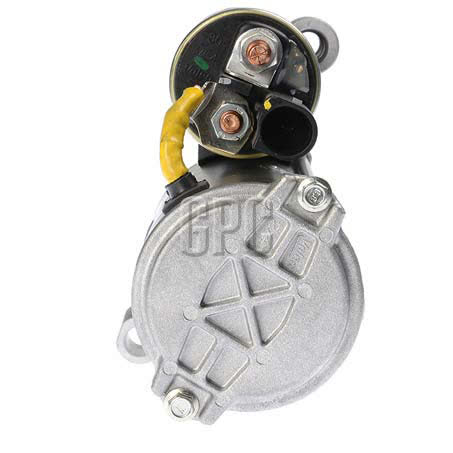

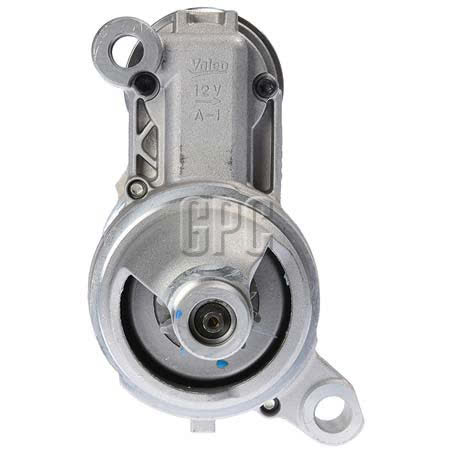

Valeo Starter Motor 12V 10T CW Part No. 438232

This Valeo starter motor is a new 12V unit with 10 teeth, clockwise rotation and a 2.2kW power rating. It is identified as part number 438232 and is listed with a 66mm flange diameter, 218mm overall length and a 3.5kg weight.

The mounting details are specific: 134mm mount centres, a 2 hole starter mount type, M12x1.5 / 10.5 mount hole diameter, one threaded bore and a left-hand 18 position / degree listing. The pinion measures 32mm in diameter and sits 23mm at rest.

Application guidance is limited to the supplied vehicle note, which states suitability for Audi A4, A5 and A6 with CAMA or CANA engine. It is also listed against Audi A4, A5, A6, A6 Allroad, A7, A8, Q5 and Porsche Macan in the fitment data provided, but the exact match still needs to be checked against the part number and engine details before purchase.

Key Features

• 12V starter motor
• 10-tooth pinion
• Clockwise rotation
• 2.2kW power rating
• New unit
• Part number 438232

Specifications

• Brand: Valeo
• Product type: Starter motor
• Voltage: 12V
• Rotation: CW
• Number of teeth: 10
• Power rating: 2.2kW
• Mount centres A: 134mm
• Starter mount type: 2 hole

Fitment guidance

• Listed vehicle groups include Audi A4, Audi A5, Audi A6, Audi A6 Allroad, Audi A7, Audi A8 and Audi Q5.
• Listed vehicle groups also include Porsche Macan.
• The supplied product note specifically mentions Audi A4, A5 and A6 with CAMA or CANA engine.
• Fitment is not fully confirmed by model name alone and should be checked against part number 438232 and the engine/application details before ordering.

Application and Buying Notes

The most useful identifiers on this starter are the part number 438232, 12V voltage, 10 teeth, clockwise rotation and the 2.2kW rating. Those details need to line up with the vehicle’s existing starter or the catalogue application before fitting, especially where the model range includes multiple engine variants.

Mounting dimensions matter just as much as the electrical rating. This unit is listed with 134mm mount centres, a 2 hole mount pattern, a 66mm flange diameter and M12x1.5 / 10.5 mount hole diameter. If any of those physical measurements differ from the removed part, it may not install correctly even if the vehicle model appears in the application list.

The note ‘Not Suitable For Start - Stop Applications’ is important. If the vehicle uses a start-stop system, this part should not be assumed to be correct. The listing also says the unit is new and carries a one year warranty, which may be useful when comparing replacement options, but it does not replace proper fitment checking.

For the vehicle groups shown, the safest approach is to compare the existing starter details, engine code and mounting layout against this Valeo unit. The supplied application note for Audi A4, A5 and A6 with CAMA or CANA engine is the clearest compatibility pointer, while the broader model listing should be treated as guidance only until verified against the actual vehicle.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number 438232 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty One Year, Mount Centres A 134mm, Number of Teeth 10, Pinion at Rest 23mm, Power Rating 2.2kW, Suits Unit Make Valeo, Note Not Suitable For Start - Stop Applications, Starter Mount Type 2 Hole.

Additional published details for cross-checking include Position / Degree L 18, Number of Thread Bores 1, Product Group 2 STARTER MOTORS, Part No. 438232, Brand VALEO, Description Valeo Starter Motor 12V 10Th CW, Flange Diameter 66mm, Mount Hole Diameter M12x1.5 / 10.5, Overall Length 218mm.

Valeo Starter Motor 12V 10Th CW. Part number 438232 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number 438232, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include AUDI A4, AUDI A4 2007, AUDI A4 2008, AUDI A4 2009, PORSCHE MACAN, PORSCHE MACAN 2014. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

Compatibility note: Please confirm fitment using part number 438232, the 12V 10-tooth clockwise specification, the 134mm mount centres and the stated engine/application details before ordering.

FAQ

What is the part number for this starter motor?

The part number listed is 438232. For this listing, part number 438232 is the main reference point. Listed voltage is 12. Published fitment references include AUDI A4, AUDI A4 2007, AUDI A4 2008. These details should still be checked against the original unit before ordering.

What voltage is this starter motor?

It is a 12V starter motor. For this listing, part number 438232 is the main reference point. Listed voltage is 12. Published fitment references include AUDI A4, AUDI A4 2007, AUDI A4 2008. These details should still be checked against the original unit before ordering.

How many teeth does the pinion have?

The pinion has 10 teeth. For this listing, part number 438232 is the main reference point. Listed voltage is 12. Published fitment references include AUDI A4, AUDI A4 2007, AUDI A4 2008. These details should still be checked against the original unit before ordering.

What rotation does it use?

It is listed as clockwise rotation, or CW. For this listing, part number 438232 is the main reference point. Listed voltage is 12. Published fitment references include AUDI A4, AUDI A4 2007, AUDI A4 2008. These details should still be checked against the original unit before ordering.

Is this starter suitable for start-stop vehicles?

No. The listing states that it is not suitable for start-stop applications. For this listing, part number 438232 is the main reference point. Listed voltage is 12. Published fitment references include AUDI A4, AUDI A4 2007, AUDI A4 2008. These details should still be checked against the original unit before ordering.

Which vehicles are specifically mentioned in the product note?

The product note states Audi A4, Audi A5 and Audi A6 with CAMA or CANA engine. For this listing, part number 438232 is the main reference point. Listed voltage is 12. Published fitment references include AUDI A4, AUDI A4 2007, AUDI A4 2008. These details should still be checked against the original unit before ordering.
