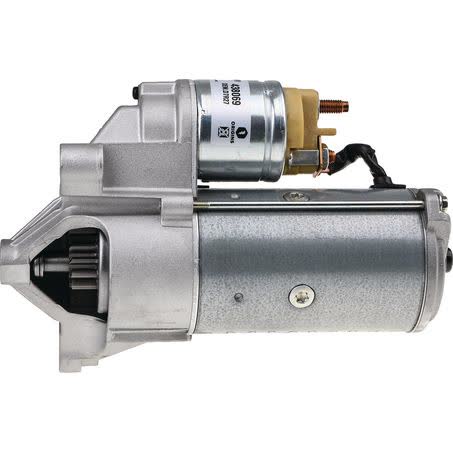

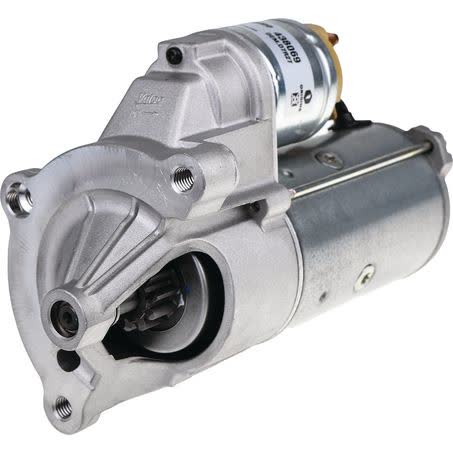

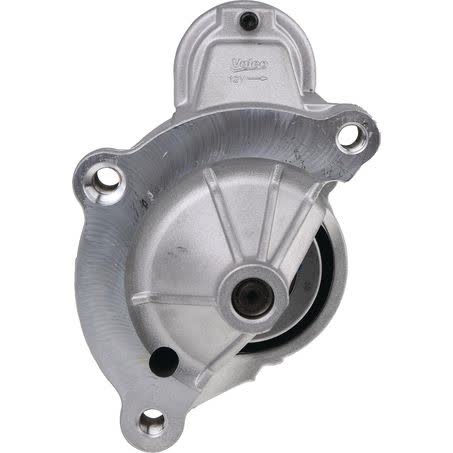

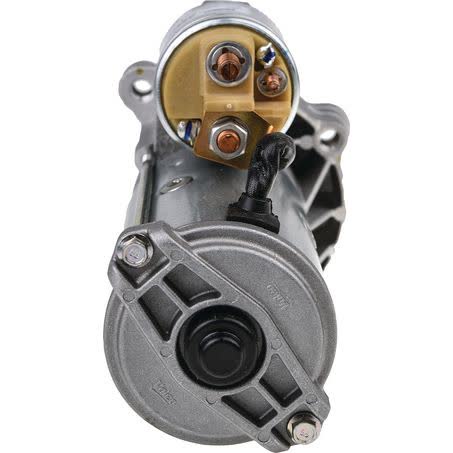

Valeo Starter Motor 12V 11 Tooth CW 1.7KW Part No. 438069

The Valeo starter motor listed here is a new 12V unit with 11 teeth, clockwise rotation and a 1.7kW power rating. It is identified by part number 438069 and is supplied as a single unit, with a one year warranty noted.

Physical dimensions matter on starter replacements, and this unit has a 3 hole starter mount type, 120mm mount centres A, 84mm mount centres C, a 66mm flange diameter and an overall length of 237mm. The pinion diameter is 29mm, the pinion at rest is -6mm, and the mount hole diameter is M10x1.5.

Valeo is listed as both the brand and the unit make, and the product is described as a dry clutch starter with no clamp. Weight is listed at 4.04kg. For buyers matching an existing starter, the critical checks are the 12V system, 11 tooth count, CW rotation, and the mounting dimensions tied to part number 438069.

Key Features

• New starter motor
• 12V unit
• 11 tooth pinion
• Clockwise rotation
• 1.7kW power rating
• 3 hole starter mount type

Specifications

• Brand: Valeo
• Part number: 438069
• Voltage: 12V
• Power rating: 1.7kW
• Rotation: CW
• Number of teeth: 11
• Starter mount type: 3 hole
• Mount centres A: 120mm

Known applications supplied for this starter motor

• Citroen C5
• Citroen Dispatch
• Citroen Xantia
• Citroen Xsara
• Peugeot 306
• Peugeot 307
• Peugeot 405
• Peugeot 406

Application and Buying Notes

Starter motor replacement should be checked against the existing unit, not only the vehicle badge. The key identifiers here are Valeo part number 438069, 12V voltage, 11 teeth, clockwise rotation and the 3 hole mount layout with 120mm and 84mm mount centres. If any of those details differ from the old starter, the replacement may not suit.

The listed dimensions are important because starters can look similar while differing in flange size, mount hole pattern or pinion position. This unit has a 66mm flange diameter, 237mm overall length, M10x1.5 mount hole diameter and a pinion at rest measurement of -6mm. Those measurements should be compared carefully before ordering.

This starter is described as a dry clutch unit with no clamp, and it weighs 4.04kg. For vehicles that appear in the known applications list, it is still sensible to confirm the fit against the original part number and physical layout before purchase, especially if the vehicle has had prior repairs or a non-original starter fitted.

The one year warranty applies to the unit supplied, but warranty coverage does not replace the need to confirm application. For a reliable match, use the part number 438069 together with the voltage, tooth count, rotation direction and mounting measurements shown above.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number 438069 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty One Year, Mount Centres A 120mm, Mount Centres C 84mm, Number of Teeth 11, Pinion at Rest -6mm, Power Rating 1.7kW, Suits Unit Make Valeo, New / Reman. New.

Additional published details for cross-checking include Wet / Dry Clutch Dry, Clamp NO, Weight 4.04kg, Product Group 1 ROTATING ELECTRICAL, Part No. 438069, Brand VALEO, Description Valeo Starter Motor 12V 11Th CW, Flange Diameter 66mm, Mount Centres B 84mm, Mount Hole Diameter M10x1.5.

Valeo Starter Motor 12V 11Th CW. Part number 438069 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number 438069, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include CITROEN C5, CITROEN C5 2001, CITROEN C5 2002, CITROEN C5 2003, PEUGEOT 306, PEUGEOT 306 1993. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

Compatibility note: Confirm fitment with the existing starter part number and all listed application details, including 12V, 11 tooth CW rotation, 3 hole mounting and the stated dimensions, before purchasing.

FAQ

What voltage is this Valeo starter motor?

It is a 12V starter motor. For this listing, part number 438069 is the main reference point. Listed voltage is 12. Published fitment references include CITROEN C5, CITROEN C5 2001, CITROEN C5 2002. These details should still be checked against the original unit before ordering.

How many teeth does the pinion have?

The pinion has 11 teeth. For this listing, part number 438069 is the main reference point. Listed voltage is 12. Published fitment references include CITROEN C5, CITROEN C5 2001, CITROEN C5 2002. These details should still be checked against the original unit before ordering.

What rotation does this starter use?

It is clockwise rotation, listed as CW. For this listing, part number 438069 is the main reference point. Listed voltage is 12. Published fitment references include CITROEN C5, CITROEN C5 2001, CITROEN C5 2002. These details should still be checked against the original unit before ordering.

What is the part number?

The part number listed is 438069. For this listing, part number 438069 is the main reference point. Listed voltage is 12. Published fitment references include CITROEN C5, CITROEN C5 2001, CITROEN C5 2002. These details should still be checked against the original unit before ordering.

Is this starter new or remanufactured?

It is listed as new. For this listing, part number 438069 is the main reference point. Listed voltage is 12. Published fitment references include CITROEN C5, CITROEN C5 2001, CITROEN C5 2002. These details should still be checked against the original unit before ordering.

Which vehicles are listed as known applications?

The supplied applications include Citroen C5, Citroen Dispatch, Citroen Xantia, Citroen Xsara, Peugeot 306, Peugeot 307, Peugeot 405, Peugeot 406 and Peugeot Expert. For this listing, part number 438069 is the main reference point. Listed voltage is 12. Published fitment references include CITROEN C5, CITROEN C5 2001, CITROEN C5 2002. These details should still be checked against the original unit before ordering.
