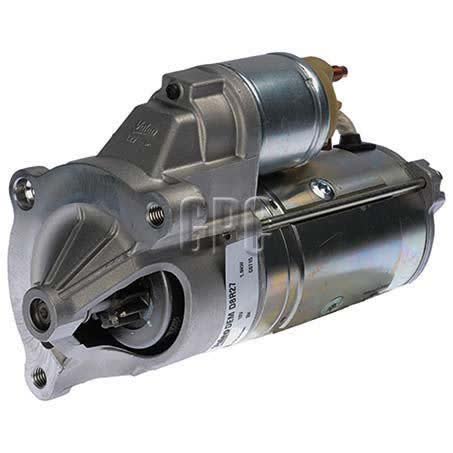

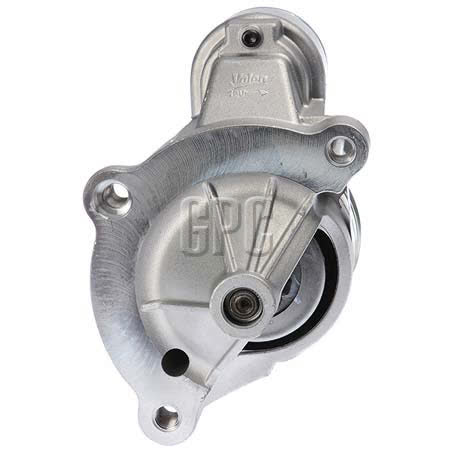

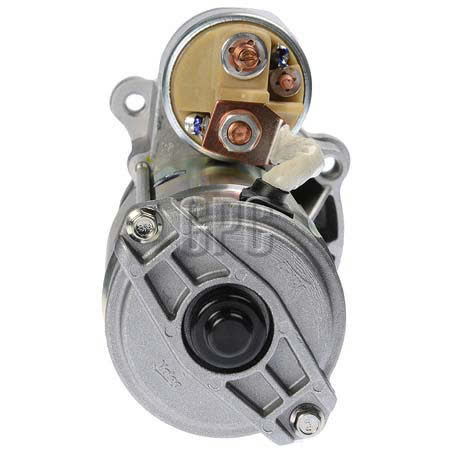

Valeo Starter Motor 12V 1.9KW 11 Tooth CW Part No. 438165

Valeo starter motor, 12V, 1.9kW, clockwise rotation, part no. 438165. This is a new starter motor with an 11-tooth pinion and a 72mm flange diameter, supplied as a single unit for replacement use where the application matches the listed specifications.

The mounting details matter on this unit: 3-hole starter mount type, 3 thread bores, and position / degree L 56. The pinion diameter is 24mm, and the starter is listed as dry clutch compatible, with no clamp fitted.

For buyers matching a starter motor on a Citroën or Peugeot application, the safest approach is to check the part number 438165 first, then compare the electrical rating, rotation direction, tooth count, mount type, and flange size against the original unit before ordering.

Key Features

• Valeo starter motor
• 12V electrical system
• 1.9kW power rating
• 11-tooth pinion
• Clockwise rotation (CW)
• 3-hole starter mount

Specifications

• Brand: Valeo
• Part No.: 438165
• Item type: Starter Motor
• Voltage: 12V
• Power rating: 1.9kW
• Rotation: CW
• Number of teeth: 11
• Starter mount type: 3 hole

Fitment information

• CITROEN: C4, C4 Grand Picasso, C4 Picasso, C5, Dispatch, DS4, DS5
• PEUGEOT: 3008, 307, 308, 308 CC, 308 SW, 406, 407, 508, 508 SW, Expert, RCZ
• Fitment samples supplied include Citroën C4 (2004, 2005, 2006) and Peugeot 3008 (2009, 2010, 2011)
• The fitment list supplied is broad and should still be checked against the vehicle’s original starter details before purchase

Application and Buying Notes

This starter motor is identified by Valeo part no. 438165, so that number is the first thing to compare when replacing an existing unit. The listed 12V system, 1.9kW rating, 11 teeth, and clockwise rotation are all important checks because a starter can look similar while still differing in electrical output or drive direction.

Mounting and physical dimensions also need attention. The unit has a 3-hole starter mount, 3 thread bores, a 72mm flange diameter, and a 24mm pinion diameter. Those dimensions help confirm whether the starter will physically suit the vehicle application and the original mounting setup.

The fitment information supplied covers several Citroën and Peugeot models, including C4, C5, Dispatch, DS4, DS5, 3008, 307, 308, 406, 407, 508, Expert, and RCZ variants. Even so, model names alone are not enough to confirm compatibility, because starter motors can vary by engine and build specification within the same model range.

If you are replacing a failed starter, compare the old unit’s tag, mounting face, tooth count, rotation, and connector or bracket layout before ordering. The product is listed as new and dry-clutch compatible, and it carries a one-year warranty, but the correct application still needs to be matched carefully to the vehicle already in front of you.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number 438165 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty One Year, Number of Teeth 11, Power Rating 1.9kW, Suits Unit Make Valeo, Item Type Starter Motor, Starter Mount Type 3 Hole, Position / Degree L 56, Number of Teeth 1 11.

Additional published details for cross-checking include Number of Thread Bores 3, Product Group 2 STARTER MOTORS, Part No. 438165, Brand VALEO, Description Valeo Starter Motor 12V 11Th CW, Flange Diameter 72mm, Pinion Diameter 24mm, Rotation CW, Voltage 12.

Valeo Starter Motor 12V 11Th CW. Part number 438165 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number 438165, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include CITROEN C4, CITROEN C4 2004, CITROEN C4 2005, CITROEN C4 2006, PEUGEOT 3008, PEUGEOT 3008 2009. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

Compatibility note: Please confirm compatibility using Valeo part no. 438165 and the listed details: 12V, 1.9kW, 11 teeth, CW rotation, 3-hole mount, 72mm flange diameter, and 24mm pinion diameter. Vehicle model names are only a guide and should be checked against the original starter and application details.

FAQ

What is the part number for this starter motor?

The part number is 438165. For this listing, part number 438165 is the main reference point. Listed voltage is 12. Published fitment references include CITROEN C4, CITROEN C4 2004, CITROEN C4 2005. These details should still be checked against the original unit before ordering.

Is this starter motor 12V?

Yes. The listed voltage is 12V. For this listing, part number 438165 is the main reference point. Listed voltage is 12. Published fitment references include CITROEN C4, CITROEN C4 2004, CITROEN C4 2005. These details should still be checked against the original unit before ordering.

What is the power rating?

The power rating is 1.9kW. For this listing, part number 438165 is the main reference point. Listed voltage is 12. Published fitment references include CITROEN C4, CITROEN C4 2004, CITROEN C4 2005. These details should still be checked against the original unit before ordering.

How many teeth does the pinion have?

It has 11 teeth. For this listing, part number 438165 is the main reference point. Listed voltage is 12. Published fitment references include CITROEN C4, CITROEN C4 2004, CITROEN C4 2005. These details should still be checked against the original unit before ordering.

What rotation direction does it use?

It is listed as clockwise rotation, or CW. For this listing, part number 438165 is the main reference point. Listed voltage is 12. Published fitment references include CITROEN C4, CITROEN C4 2004, CITROEN C4 2005. These details should still be checked against the original unit before ordering.

What vehicles are listed in the fitment information?

The supplied fitment information includes Citroën C4, C4 Grand Picasso, C4 Picasso, C5, Dispatch, DS4 and DS5, plus Peugeot 3008, 307, 308, 308 CC, 308 SW, 406, 407, 508, 508 SW, Expert and RCZ variants. Final compatibility still needs to be checked against the original starter details.
