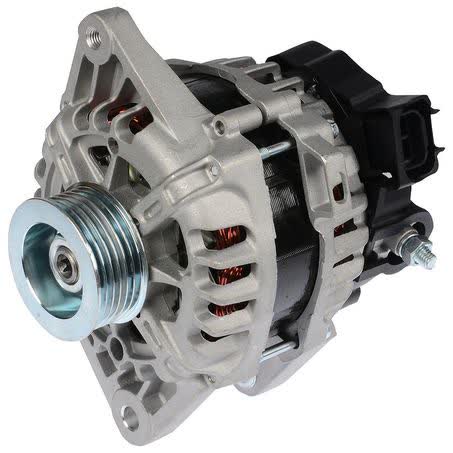

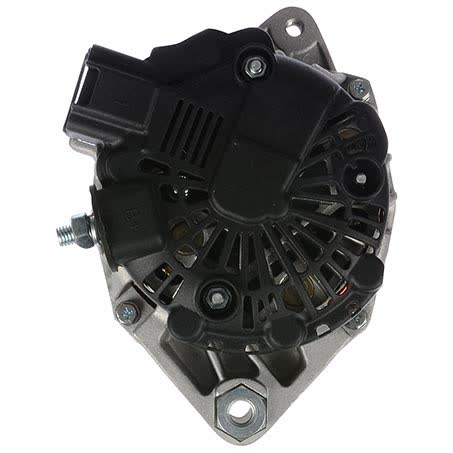

OEX Alternator 12V 90A Valeo Style VXA019

The OEX Alternator VXA019 is a new 12V, 90A unit designed in a Valeo style layout and supplied as an each item. It uses an internal regulator, a twin leg alternator mount, and a 6 groove pulley with a 58mm outside diameter, so the physical mounting and drive details can be checked against the existing unit before purchase.

This alternator has an inside mounting leg width of 50mm, a mount centre to centre measurement of 171mm, an M10x1.25 pivot hole diameter, and an M8x1.25 adjusting hole diameter. Those dimensions matter because alternators can look similar while differing in bracket spacing, pivot size, or pulley setup.

OEX notes that this unit should be confirmed by OE number due to different regulator functions. That is the key compatibility checkpoint on this part, especially where the vehicle may use more than one alternator control arrangement within the same model range.

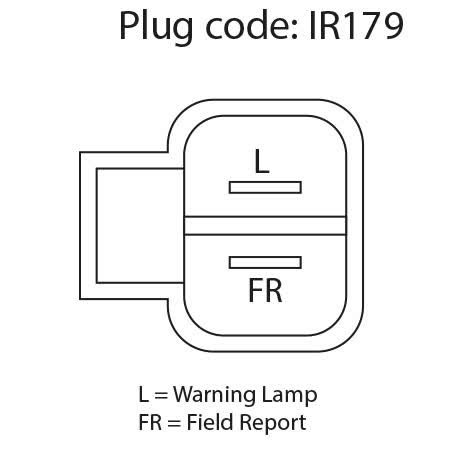

It is backed by a 3 year passenger / 1 year commercial warranty and weighs 4.72kg. The part number is VXA019 and the pin code is IR179.

Key Features

• New alternator, not remanufactured
• 12V output with 90A power rating
• Internal regulator
• Twin leg alternator mount
• 6 groove pulley, 58mm outside diameter
• Valeo style replacement unit

Specifications

• Brand: OEX
• Part number: VXA019
• Type: Alternator
• Voltage: 12V
• Amperage: 90A
• Unit of measure: Each
• Suits unit make: Valeo
• Regulator type: Internal

Fitment guidance

• Fitment is not listed by specific vehicle model here.
• The supplied fitment data references FIAT Punto, Hyundai Accent, Hyundai i20, Hyundai i30, Hyundai Veloster, Kia cee'd, Kia Cerato, Kia Rio, Kia Soul, Mercedes-Benz Sprinter 5-T, and Saab 9-3 applications.
• Because regulator function differences are noted, confirm the OE number and compare all mounting and pulley details before ordering.
• Check the 50mm inside mounting legs, 171mm mount centre to centre, M10x1.25 pivot hole, M8x1.25 adjusting hole, and 6 groove pulley layout against the removed alternator.

Application and Buying Notes

When comparing this OEX VXA019 alternator to the one already in the vehicle, the most important checks are the OE number, regulator function, and the physical mounting measurements. The alternator is a 12V, 90A Valeo style unit with an internal regulator, but similar looking units can differ in control arrangement even when the case and pulley appear close.

The mounting points on this unit are specific: 50mm inside mounting legs, 171mm centre to centre, M10x1.25 pivot hole diameter, and M8x1.25 adjusting hole diameter. If any of those measurements do not match the existing alternator or bracket, the part should not be assumed to fit.

The pulley is a 6 groove design with a 58mm outside diameter. That needs to be checked against the existing belt system, because belt groove count and pulley size are both practical fitment points on rotating electrical parts.

This alternator is supplied new and weighs 4.72kg. New construction can be useful where a direct replacement is needed, but it still should be matched carefully to the vehicle application and the removed unit rather than selected by appearance alone.

The listed application groups include FIAT Punto, Hyundai Accent, Hyundai i20, Hyundai i30, Hyundai Veloster, Kia cee'd, Kia Cerato, Kia Rio, Kia Soul, Mercedes-Benz Sprinter 5-T, and Saab 9-3. Use that as a broad application guide only, then verify the OE number and regulator details before proceeding.

Warranty coverage is listed as 3 years for passenger use and 1 year for commercial use. Commercial vehicles often see higher electrical load and duty cycle, so matching the correct OE number and mounting details is especially important before installation.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number VXA019 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type ALTERNATOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Inside Mounting Legs 50mm, Pivot Hole Diameter M10x1.25 / 10, Pulley Outside Diameter 58mm, Regulator Type Internal, Voltage 12, Alternator Mount Twin Leg, New / Reman. New.

Additional published details for cross-checking include Product Group 2 ALTERNATORS, Part No. VXA019, Brand OEX, Description OEX Alternator 12V 90A Valeo Style - See Note, Adjusting Hole Diameter M8x1.25, Pin Code IR179, Power Rating (Amp) 90, Pulley Section 6 Groove, Suits Unit Make Valeo.

OEX Alternator 12V 90A Valeo Style - See Note. Part number VXA019 should be checked first. Listed voltage is 12. Listed output rating is 90. These details form the core reference points used by parts interpreters when confirming the correct replacement.

Mount style is Twin Leg. Regulator type is Internal. Pulley configuration is 6 Groove. Those physical and electrical details should line up with the original unit before the replacement is approved for fitment.

For part number VXA019, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

Compatibility note: Confirm fitment by OE number and application details before ordering, as regulator functions can differ between vehicles that use a similar Valeo style alternator.

FAQ

What is the part number for this alternator?

The part number is VXA019.

Is this alternator new or remanufactured?

It is listed as new.

What voltage and output does it have?

It is a 12V alternator with a 90A power rating.

What type of regulator does it use?

It uses an internal regulator.

What pulley setup does it have?

It has a 6 groove pulley with a 58mm outside diameter.

What should I check before ordering?

Confirm the OE number, regulator function, and mounting details including the 50mm inside mounting legs, 171mm mount centre to centre, M10x1.25 pivot hole, and M8x1.25 adjusting hole.
