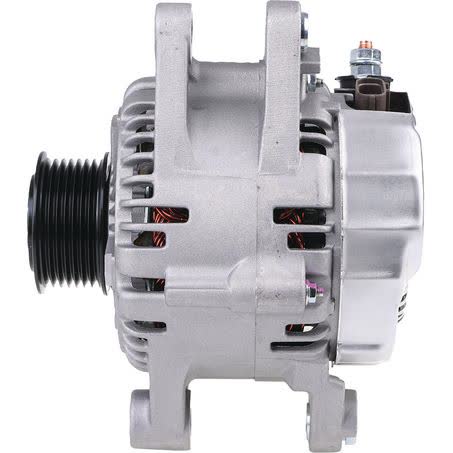

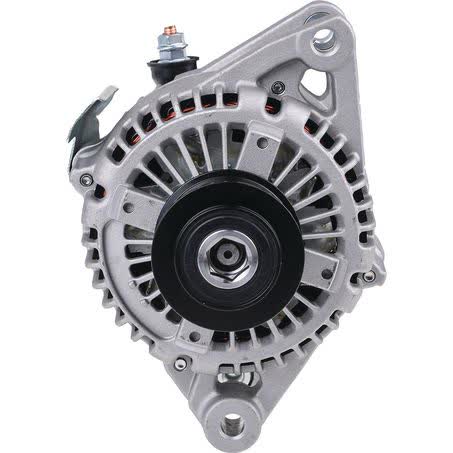

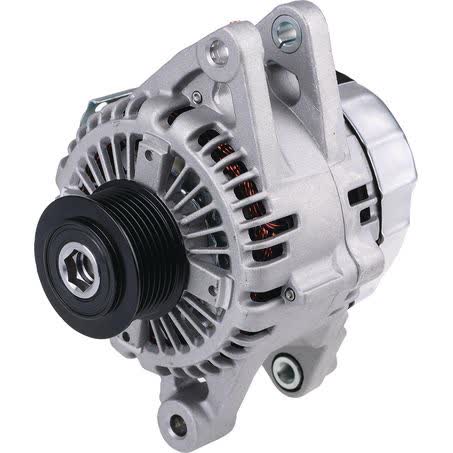

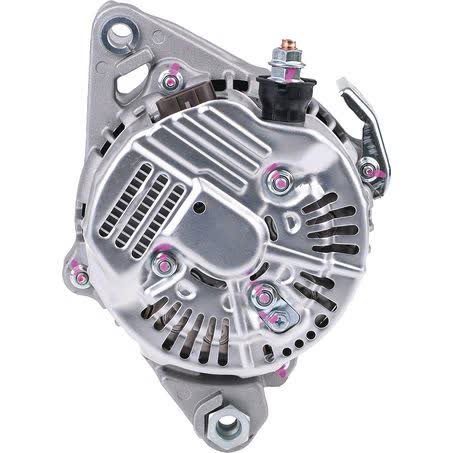

OEX Alternator 12V 110A Denso Style DXA4043

The OEX Alternator DXA4043 is a 12V, 110A rotating electrical unit built as a Denso style alternator and supplied new, not remanufactured. It uses an internal regulator, a 7 groove pulley, and a quad leg alternator mount, so the physical mounting and drive configuration need to line up with the vehicle before purchase.

This alternator is listed with a 60mm pulley outside diameter, 54mm inside mounting legs, a 182mm mount centre-to-centre measurement, and M10x1.25 / 11 pivot hole diameter. Those dimensions are the practical checks that matter when you are matching a replacement alternator to the existing unit or comparing against installation space.

OEX positions this product in its rotating electrical range and lists a 3 year passenger / 1 year commercial warranty. The unit is identified by part number DXA4043 and pin code IR186, with a stated weight of 6.16kg. For buyers and workshops alike, the part number, unit style, and mounting measurements should be confirmed alongside the vehicle application before ordering.

Key Features

• 12V alternator with 110A power rating
• Denso style unit
• Internal regulator
• 7 groove pulley
• Quad leg alternator mount
• New unit

Specifications

• Voltage: 12V
• Amperage: 110A
• Part No.: DXA4043
• Brand: OEX
• Unit of Measure: Each
• Warranty: 3yr Passenger / 1yr Commercial
• Suits unit make: Denso
• Alternator mount: Quad Leg

Verified fitment guidance

• Hyundai iLoad / H-1
• Hyundai iMax / H-1
• Fitment data is shown against Hyundai applications in the supplied vehicle information
• Model years appear in the application data for some listings, including 2008, 2012 and 2013 to 2018

Application and Buying Notes

Before ordering, match the part number DXA4043 and confirm the alternator is a Denso style unit with a quad leg mount. The listed physical checks — 12V, 110A, 60mm pulley outside diameter, 7 groove pulley, 54mm inside mounting legs, and 182mm mount centre-to-centre — are the key points that determine whether the unit will fit and line up correctly.

The vehicle application data points to Hyundai iLoad / H-1 and Hyundai iMax / H-1. Even where the model name looks familiar, alternator fitment can still vary with mounting arrangement, pulley configuration, and regulator type, so the existing unit should be compared carefully against the measurements above before a purchase is made.

This alternator is new and carries an internal regulator, which matters when replacing a unit that may have a different external or internal control arrangement. The weight is listed at 6.16kg, and the mounting holes are specified as M10x1.25 / 11 pivot and 10mm adjusting hole diameter, so those dimensions should be checked if the old alternator has worn or non-standard fittings.

For workshop use, the warranty is listed as 3 years for passenger use and 1 year for commercial use. That warranty detail does not remove the need to verify fitment, but it does give a clear usage-based reference when the vehicle is being used privately or in commercial service. Keep the pin code IR186 and part number DXA4043 on hand when comparing catalogues or speaking with a parts interpreter.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number DXA4043 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type ALTERNATOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Inside Mounting Legs 54mm, Pivot Hole Diameter M10x1.25 / 11, Pulley Outside Diameter 60mm, Regulator Type Internal, Voltage 12, Mount Cnt to Cnt 182mm, Weight 6.16kg.

Additional published details for cross-checking include Product Group 1 ROTATING ELECTRICAL, Part No. DXA4043, Brand OEX, Description OEX Alternator 12V 110A Denso Style, Adjusting Hole Diameter 10, Pin Code IR186, Power Rating (Amp) 110, Pulley Section 7 Groove, Suits Unit Make Denso, Alternator Mount Quad Leg.

OEX Alternator 12V 110A Denso Style. Part number DXA4043 should be checked first. Listed voltage is 12. Listed output rating is 110. These details form the core reference points used by parts interpreters when confirming the correct replacement.

Mount style is Quad Leg. Regulator type is Internal. Pulley configuration is 7 Groove. Those physical and electrical details should line up with the original unit before the replacement is approved for fitment.

For part number DXA4043, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a alternator in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 and output 110 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include HYUNDAI ILOAD / H-1, HYUNDAI ILOAD / H-1 2008, HYUNDAI ILOAD / H-1 2012, HYUNDAI IMAX / H-1. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

Compatibility note: Confirm compatibility using part number DXA4043, the Denso style specification, the quad leg mount, and the measured details listed here. Vehicle application should be checked against the actual alternator removed from the vehicle before fitting.

FAQ

What is the part number for this alternator?

The part number is DXA4043.

Is this alternator new or remanufactured?

It is listed as new.

What voltage and amperage does it have?

It is a 12V alternator with a 110A power rating.

What type of regulator does it use?

It has an internal regulator.

Which vehicles are shown in the fitment data?

The supplied fitment information shows Hyundai iLoad / H-1 and Hyundai iMax / H-1 applications.

What should be checked before buying?

Confirm the part number DXA4043, the Denso style unit make, the quad leg mount, pulley section, and the mounting measurements including 54mm inside mounting legs and 182mm mount centre-to-centre.
