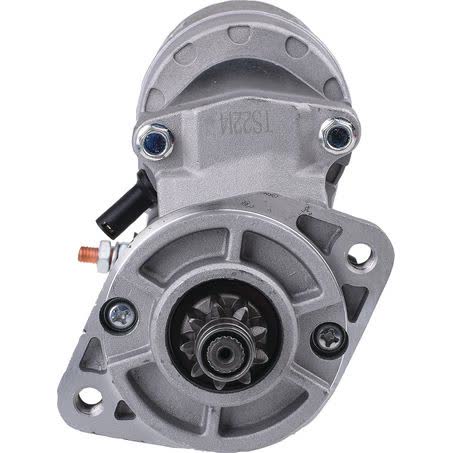

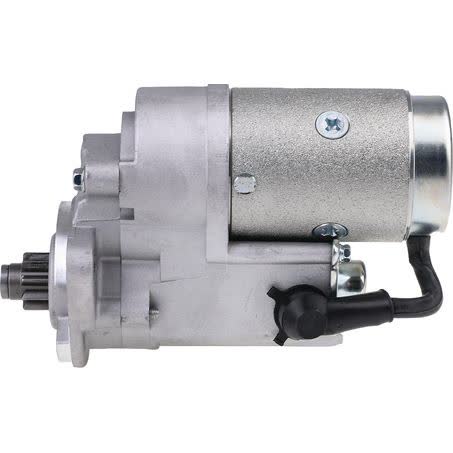

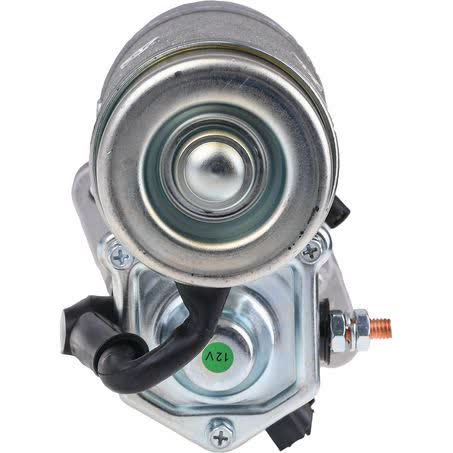

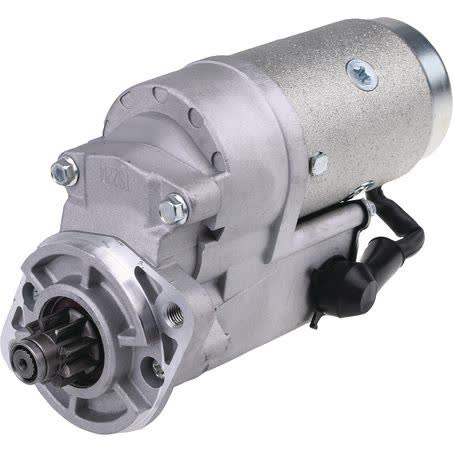

OEX Starter Motor 12V 9TH CW Denso Style DXS4024

The OEX Starter Motor DXS4024 is a 12V replacement starter motor with a 9 tooth pinion, clockwise rotation and a 2.0kW power rating. It is listed as a Denso style unit and suits Denso applications, so the key checks are the part number, mounting style and core dimensions before purchase.

This starter motor is supplied new, not remanufactured, and uses a 2 hole starter mount. Important physical measurements include 105mm mount centres, an 82mm flange diameter, M10x1.25 mount holes, a 225mm overall length, a 29mm pinion diameter and a 27mm pinion at rest. Those dimensions are the practical checks that help confirm whether the unit matches the existing starter position and mounting pattern.

OEX states its products are sourced from market leading original equipment manufacturers and aftermarket suppliers, with production from ISO certified factories. The unit is backed by a 3 year passenger / 1 year commercial warranty, which is a useful reference point for vehicle owners and workshops comparing long-term coverage on a replacement starter motor.

Key Features

• 12V starter motor
• 9 tooth pinion
• Clockwise rotation
• 2.0kW power rating
• Denso style unit
• New starter motor

Specifications

• Part No.: DXS4024
• Brand: OEX
• Product Type: Starter Motor
• Unit of Measure: Each
• Voltage: 12V
• Power Rating: 2.0kW
• Rotation: CW
• Number of Teeth: 9

Verified application groups

• Hyundai Grandeur
• Hyundai Santa Fe
• Hyundai Tucson
• Kia Sportage

Application and Buying Notes

Before ordering, compare the part number DXS4024 with the starter already fitted to the vehicle, then check the mounting layout and dimensions against the old unit. The important physical points here are the 2 hole starter mount, 105mm mount centres, M10x1.25 mount holes and 82mm flange diameter, because a starter can share a similar appearance while still mounting differently.

The electrical and drive details also matter. This unit is 12V, rated at 2.0kW, has 9 teeth and clockwise rotation. If the original starter differs in voltage, rotation direction, tooth count or pinion dimensions, it may not be the correct match even where the vehicle family appears similar.

Because the fitment list includes Hyundai Grandeur, Hyundai Santa Fe, Hyundai Tucson and Kia Sportage applications, it is still worth checking the exact vehicle build against the part number and the existing starter. Model names alone are not enough for a reliable match, especially when there are year ranges within the same model family and different starter configurations can exist.

If you are replacing a starter on a vehicle that has already had repairs, modification or previous parts substitution, confirm the starter style before fitting. The overall length of 225mm, pinion diameter of 29mm and pinion at rest of 27mm are practical measurements that can help when comparing against the removed unit in the workshop or at the counter.

The listed warranty is 3 years for passenger use and 1 year for commercial use, so it is sensible to keep the invoice and note the installation details. As with any electrical rotating part, correct identification at the outset saves time, avoids unnecessary returns and reduces the risk of fitment issues after installation.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number DXS4024 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Mount Centres A 105mm, Number of Teeth 9, Pinion at Rest 27mm, Power Rating 2.0kW, Suits Unit Make Denso, New / Reman. New, Wet / Dry Clutch Dry.

Additional published details for cross-checking include Product Group 2 STARTER MOTORS, Part No. DXS4024, Brand OEX, Description OEX Starter Motor 12V 9Th CW Denso Style, Flange Diameter 82mm, Mount Hole Diameter M10x1.25, Overall Length 225mm, Pinion Diameter 29mm, Rotation CW.

OEX Starter Motor 12V 9Th CW Denso Style. Part number DXS4024 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number DXS4024, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include HYUNDAI GRANDEUR, HYUNDAI GRANDEUR 2006, HYUNDAI GRANDEUR 2007, HYUNDAI GRANDEUR 2008, KIA SPORTAGE, KIA SPORTAGE 2006. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

Compatibility note: Please confirm fitment by matching part number DXS4024, the Denso style application, and the physical measurements and mounting details before ordering. Vehicle model names should be used as a guide only; the final check should always be against the existing starter and vehicle application details.

FAQ

What is the part number for this starter motor?

The part number is DXS4024.

What voltage is the starter motor?

It is a 12V starter motor.

Is this a new or remanufactured unit?

It is listed as new, not remanufactured.

What rotation does this starter motor have?

It is clockwise rotation, noted as CW.

What applications are listed for this starter motor?

Verified application groups include Hyundai Grandeur, Hyundai Santa Fe, Hyundai Tucson and Kia Sportage.

What should I check before buying?

Confirm the part number DXS4024, the Denso style application, 12V rating, clockwise rotation, 9 tooth pinion, 2 hole mount and the listed measurements including 105mm mount centres and 82mm flange diameter.
