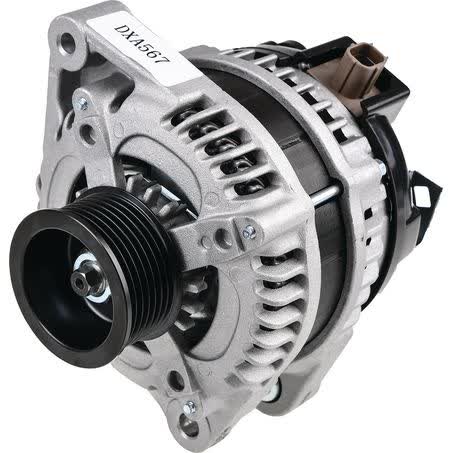

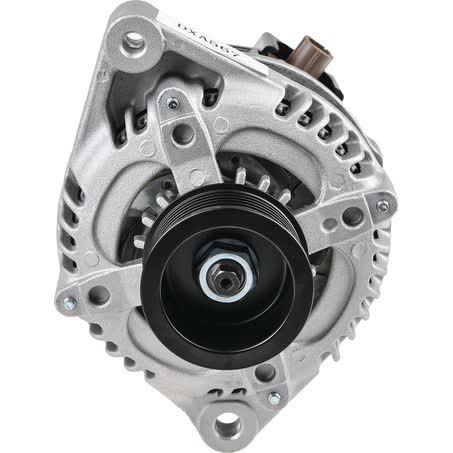

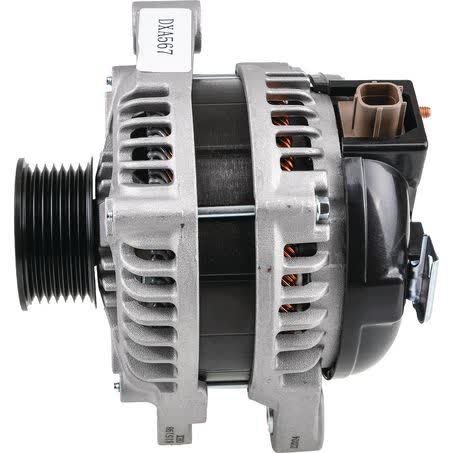

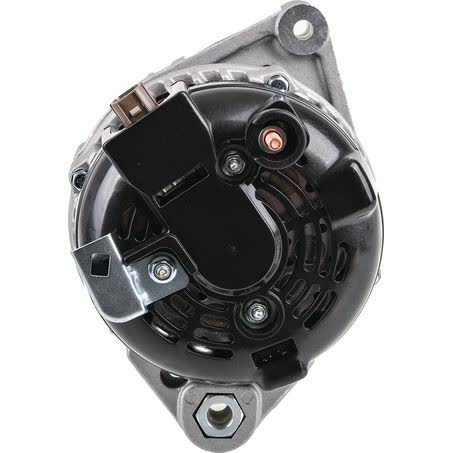

OEX Alternator 12V 130A Denso Style DXA567

The OEX Alternator DXA567 is a new 12V unit rated at 130 amps, built in a Denso style configuration for vehicles that require this alternator format. It uses an internal regulator and a 7 groove pulley, with a 60mm pulley outside diameter and twin leg alternator mounting.

For fitting reference, the unit measures 169mm mounting centre to centre, has 34mm inside mounting legs, an M10x1.25 / 11 pivot hole diameter, and an 8mm adjusting hole diameter. Weight is listed at 5.9kg, which can be useful when comparing against the existing part before ordering.

OEX positions this alternator within its rotating electrical range, and the listed warranty is 3 years for passenger use and 1 year for commercial use. As with any charging system component, the best result comes from matching the physical mount, pulley style, and electrical specification to the vehicle already in service.

Key Features

• 12V alternator rated at 130A
• Denso style application
• Internal regulator
• 7 groove pulley
• Twin leg mount
• New unit

Specifications

• Voltage: 12V
• Power rating: 130 amps
• Part No.: DXA567
• Brand: OEX
• Unit of measure: each
• New / remanufactured: New
• Regulator type: Internal
• Alternator mount: Twin leg

Known fitment references

• Honda Accord
• Honda Accord Euro
• Honda Odyssey
• Fitment references include model years such as 2008, 2009, 2010, 2011, 2012 and 2013 in the supplied application data

Application and Buying Notes

Before ordering, compare the part number DXA567 with the alternator already fitted to the vehicle, then check the mount style, pulley type, and key dimensions. This unit is a Denso style alternator with a twin leg mount, 169mm mount centre to centre, 34mm inside mounting legs, and a 7 groove pulley, so those details should be matched carefully against the existing unit.

The electrical rating is 12V and 130A, so it is important to confirm that the vehicle’s charging system requirement matches that specification. The internal regulator is another useful checkpoint, because regulator type needs to suit the vehicle application rather than being assumed from the outside shape alone.

The pulley size and section are also worth checking before purchase. This alternator uses a 60mm pulley with a 7 groove belt section, so if the existing unit has a different pulley arrangement it may not be a direct replacement. The listed weight of 5.9kg can also help when comparing the new unit with the removed part.

If you are working from vehicle fitment data, use it as a starting point only and still confirm the physical alternator details on the car. Honda Accord, Accord Euro and Odyssey applications are referenced in the supplied fitment information, but the safest approach is to verify the actual part number, mounting arrangement, and pulley configuration already on the vehicle.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number DXA567 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type ALTERNATOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Inside Mounting Legs 34mm, Pivot Hole Diameter M10x1.25 / 11, Pulley Outside Diameter 60mm, Regulator Type Internal, Voltage 12, Mount Cnt to Cnt 169mm, Weight 5.9kg.

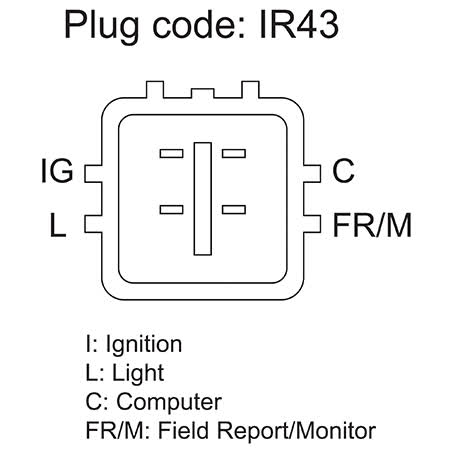

Additional published details for cross-checking include Product Group 1 ROTATING ELECTRICAL, Part No. DXA567, Brand OEX, Description OEX Alternator 12V 130A Denso Style, Adjusting Hole Diameter 8, Pin Code IR43, Power Rating (Amp) 130, Pulley Section 7 Groove, Suits Unit Make Denso, Alternator Mount Twin Leg.

OEX Alternator 12V 130A Denso Style. Part number DXA567 should be checked first. Listed voltage is 12. Listed output rating is 130. These details form the core reference points used by parts interpreters when confirming the correct replacement.

Mount style is Twin Leg. Regulator type is Internal. Pulley configuration is 7 Groove. Those physical and electrical details should line up with the original unit before the replacement is approved for fitment.

For part number DXA567, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a alternator in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 and output 130 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Compatibility note: Confirm fitment using part number DXA567, the Denso style application, and the physical mounting and pulley details on the vehicle before purchase.

FAQ

Is this alternator new or remanufactured?

This alternator is listed as new. For this listing, part number DXA567 is the main reference point. Listed voltage is 12. Listed output rating is 130. Published fitment references include HONDA ACCORD, HONDA ACCORD 2008, HONDA ACCORD 2009. These details should still be checked against the original unit before ordering.

What is the voltage and amperage rating?

It is a 12V alternator rated at 130A. For this listing, part number DXA567 is the main reference point. Listed voltage is 12. Listed output rating is 130. Published fitment references include HONDA ACCORD, HONDA ACCORD 2008, HONDA ACCORD 2009. These details should still be checked against the original unit before ordering.

What regulator type does it use?

It uses an internal regulator. For this listing, part number DXA567 is the main reference point. Listed voltage is 12. Listed output rating is 130. Published fitment references include HONDA ACCORD, HONDA ACCORD 2008, HONDA ACCORD 2009. These details should still be checked against the original unit before ordering.

What pulley setup is listed?

The alternator has a 7 groove pulley with a 60mm pulley outside diameter. For this listing, part number DXA567 is the main reference point. Listed voltage is 12. Listed output rating is 130. Published fitment references include HONDA ACCORD, HONDA ACCORD 2008, HONDA ACCORD 2009. These details should still be checked against the original unit before ordering.

What mounting details are supplied?

The listed mounting details are twin leg alternator mount, 169mm mount centre to centre, 34mm inside mounting legs, M10x1.25 / 11 pivot hole diameter, and 8mm adjusting hole diameter. For this listing, part number DXA567 is the main reference point. Listed voltage is 12. Listed output rating is 130. Published fitment references include HONDA ACCORD, HONDA ACCORD 2008, HONDA ACCORD 2009. These details should still be checked against the original unit before ordering.

Which vehicles are referenced in the fitment data?

The supplied fitment references include Honda Accord, Honda Accord Euro, and Honda Odyssey, with model years such as 2008 through 2013 appearing in the application data. For this listing, part number DXA567 is the main reference point. Listed voltage is 12. Listed output rating is 130. Published fitment references include HONDA ACCORD, HONDA ACCORD 2008, HONDA ACCORD 2009. These details should still be checked against the original unit before ordering.
