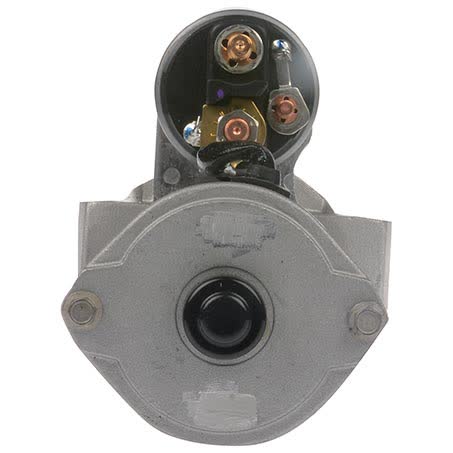

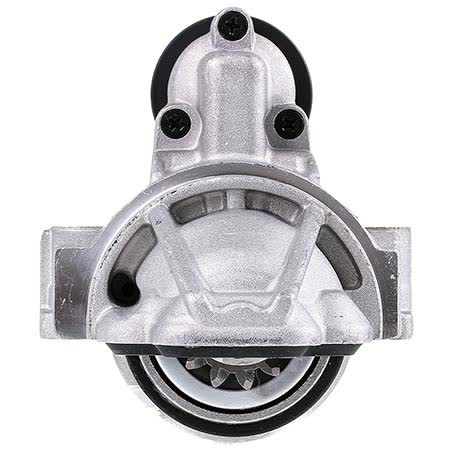

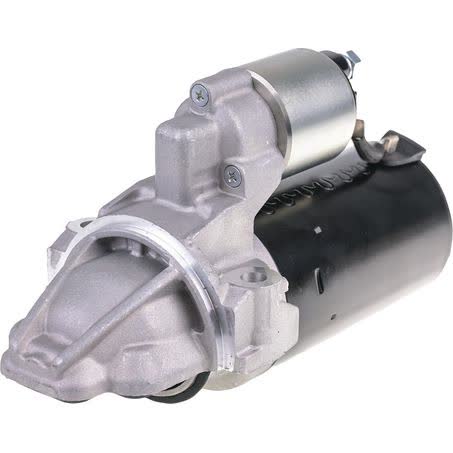

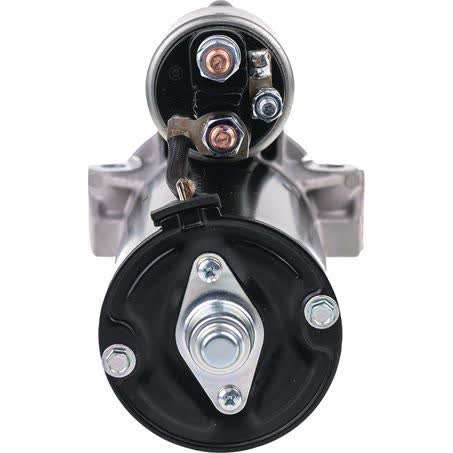

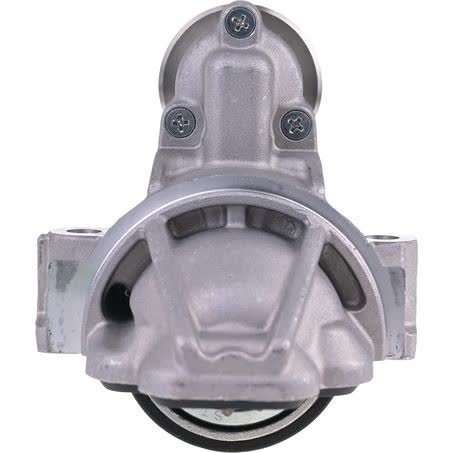

OEX Starter Motor 12V 12-TOOTH CW Autolite Style AXS979

The OEX Starter Motor AXS979 is a 12V, 12-tooth clockwise rotating starter motor built in an Autolite style configuration. It is a new unit with a pad mount starter design, 2kW power rating, and a 12-tooth pinion arrangement, so the key physical and electrical details are already defined before you compare it to the vehicle.

This starter motor suits Autolite units and carries a note that it is not interchangeable with MXS2001 or MXS2002. Important dimensions include a 10mm mount hole diameter, 90mm mount centres A, 77mm nose cone length, 255mm overall length, 39mm pinion diameter, and a 43mm pinion at rest measurement.

OEX lists this unit as part of its rotating electrical range, supplied new and backed by a 3yr passenger / 1yr commercial warranty. It is a 3.94kg starter motor sold each, which helps when checking handling, mounting style, and replacement parity against the original unit.

Because starter motors are often selected by multiple matching points rather than one visual check, the safest approach is to compare the part number AXS979, the 12V electrical specification, the 12-tooth CW configuration, and the Autolite style against the vehicle application before ordering.

Key Features

• 12V starter motor
• 12-tooth pinion
• Clockwise rotation
• Autolite style
• Pad mount starter type
• New unit

Specifications

• Brand: OEX
• Part number: AXS979
• Product type: Starter motor
• Voltage: 12V
• Rotation: CW
• Number of teeth: 12
• Power rating: 2kW
• Starter mount type: Pad

Known application groups

• Ford Transit
• Ford Transit 2000 to 2010
• Land Rover Defender
• Land Rover Defender 1990 to 1999 and 2006
• Land Rover Freelander 2
• Land Rover Range Rover Evoque

Application and Buying Notes

Before fitting, confirm the part number AXS979 and compare the mounting arrangement to the original starter motor. The critical checks here are the pad mount design, 10mm mount hole diameter, 90mm mount centres A, 77mm nose cone length, and the 255mm overall length, because starter motors can look similar while differing in mounting and body dimensions.

The electrical specification is equally important. This unit is 12V, clockwise rotation, and rated at 2kW, with 12 teeth and a 39mm pinion diameter. If the vehicle’s original starter uses a different rotation direction, tooth count, or mounting pattern, it should not be treated as a direct match.

There is also a clear interchange warning: this starter motor is not interchangeable with MXS2001 or MXS2002. That makes the application details and the original part reference especially useful when ordering for Ford Transit or the listed Land Rover applications.

For workshop or fleet use, the warranty is 3yr passenger / 1yr commercial, which is helpful context when selecting the right replacement for different duty cycles. As with any starter, make sure the battery condition, cable integrity, and engine earths are in good order before blaming the replacement unit for a starting problem.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number AXS979 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Mount Hole Diameter 10, Number of Teeth 12, Pinion at Rest 43mm, Power Rating 2kW, Suits Unit Make Autolite, Note Not interchangeable with MXS2001 or MXS2002, Starter Mount Type Pad.

Additional published details for cross-checking include Weight 3.94kg, Product Group 1 ROTATING ELECTRICAL, Part No. AXS979, Brand OEX, Description OEX Starter Motor 12V 12Th CW Autolite Style, Mount Centres A 90mm, Nose Cone Length 77mm, Overall Length 255mm, Pinion Diameter 39mm, Rotation CW.

OEX Starter Motor 12V 12Th CW Autolite Style. Part number AXS979 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number AXS979, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include FORD TRANSIT, FORD TRANSIT 2000, FORD TRANSIT 2001, FORD TRANSIT 2002, LAND ROVER DEFENDER, LAND ROVER DEFENDER 1990. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

Compatibility note: Confirm fitment by matching the part number AXS979, the 12V 12-tooth clockwise Autolite style configuration, and the listed mounting dimensions against the vehicle application before purchase. If the original unit differs in mount type, tooth count, rotation, or body length, do not assume interchangeability.

FAQ

What type of starter motor is this?

It is an OEX starter motor, part number AXS979, in 12V Autolite style with 12 teeth and clockwise rotation. It is a new unit with a pad mount design and a 2kW power rating.

What vehicles is it listed against?

The supplied application groups include Ford Transit, Ford Transit 2000 to 2010, Land Rover Defender, Land Rover Defender 1990 to 1999 and 2006, Land Rover Freelander 2, and Land Rover Range Rover Evoque.

Is this starter motor interchangeable with other OEX units?

No. It is specifically noted as not interchangeable with MXS2001 or MXS2002.

What measurements should be checked before ordering?

Check the 10mm mount hole diameter, 90mm mount centres A, 77mm nose cone length, 255mm overall length, 39mm pinion diameter, and 43mm pinion at rest. These measurements are important for physical matching.

What warranty is provided?

OEX lists a 3yr passenger / 1yr commercial warranty for this starter motor.

Is this a new or remanufactured part?

This starter motor is listed as new.
