OEX Alternator 12V 110A Denso Style DXA433U

The OEX Alternator DXA433U is a new 12V, 110A unit built in a Denso style layout for rotating electrical applications. It is listed with a single leg mount, internal regulator, AA pulley section, and a 72mm pulley outside diameter, so the physical setup can be checked against the existing unit before purchase.

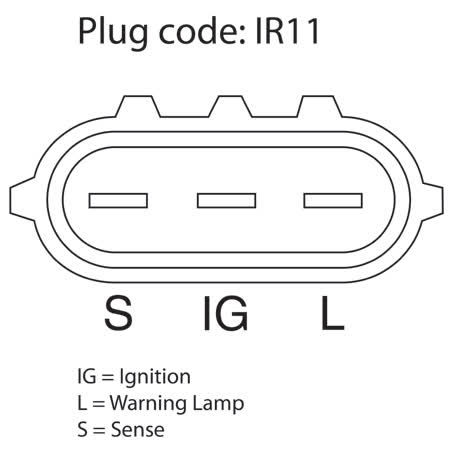

This alternator is identified with part number DXA433U and a pin code of IR11. The mounting details shown include a 58mm mount leg thickness, 165mm mount centre-to-centre, 10mm pivot hole diameter, and M8 adjusting hole diameter, which are the key measurements to compare when confirming interchange.

OEX notes that this product is sourced from market leading original equipment manufacturers and aftermarket suppliers, with ISO9001-certified factory sourcing to support engineering, testing, and quality control procedures. The unit is backed by a 3 year passenger / 1 year commercial warranty, and it is listed as new rather than remanufactured.

Key Features

• 12V, 110A alternator
• Denso style unit
• New alternator, not remanufactured
• Internal regulator
• Single leg mount
• AA pulley section

Specifications

• Brand: OEX
• Part No.: DXA433U
• Product type: Alternator
• Power rating: 110A
• Voltage: 12V
• Unit of measure: Each
• Regulator type: Internal
• Alternator mount: Single leg

Fitment guidance

• TOYOTA: LAND CRUISER, LAND CRUISER 1990, LAND CRUISER 1991, LAND CRUISER 1992, LAND CRUISER 1993, plus other listed applications

Application and Buying Notes

Before ordering, match the part number DXA433U and compare the mounting measurements on the vehicle’s existing alternator. The key points here are the single leg mount, 58mm mount leg thickness, 165mm mount centre-to-centre, 10mm pivot hole diameter, and M8 adjusting hole diameter.

This unit is described as Denso style and suits Denso as the unit make, so the safest way to confirm suitability is to compare the old alternator side-by-side, including pulley size and section. The listed pulley outside diameter is 72mm with an AA section, and the shaft dimension is 17.

The note supplied with this alternator says the regulator is specially designed to work on active and inactive warning light circuits. It also mentions an adaptor to suit HXK-30, HXK-22, and HXK-17, which may help with installation on the correct application, but it should still be checked against the vehicle and the existing wiring setup.

The fitment preview supplied includes Toyota Land Cruiser applications across multiple model years, but the exact engine, build date, and wiring variation still need to be confirmed before purchase. Alternators can look similar while using different mounts, pulleys, and regulator arrangements, so the matching points above matter as much as the vehicle name.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number DXA433U helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type ALTERNATOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Mount Leg Thickness 58mm, Pivot Hole Diameter 10, Pulley Outside Diameter 72mm, Regulator Type Internal, Voltage 12, Alternator Mount Single Leg, New / Reman. New.

Additional published details for cross-checking include Shaft Dimension 17, Product Group 2 ALTERNATORS, Part No. DXA433U, Brand OEX, Description OEX Alternator 12V 110A Denso Style, Adjusting Hole Diameter M8, Pin Code IR11, Power Rating (Amp) 110, Pulley Section AA.

OEX Alternator 12V 110A Denso Style. Part number DXA433U should be checked first. Listed voltage is 12. Listed output rating is 110. These details form the core reference points used by parts interpreters when confirming the correct replacement.

Mount style is Single Leg. Regulator type is Internal. Pulley configuration is AA. Those physical and electrical details should line up with the original unit before the replacement is approved for fitment.

For part number DXA433U, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a alternator in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 and output 110 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Compatibility note: Confirm fitment by checking part number DXA433U, the Denso style unit type, and the listed mounting and pulley measurements against the vehicle’s existing alternator before ordering.

FAQ

What is the part number for this alternator?

The part number listed is DXA433U. For this listing, part number DXA433U is the main reference point. Listed voltage is 12. Listed output rating is 110. Published fitment references include TOYOTA LAND CRUISER, TOYOTA LAND CRUISER 1990, TOYOTA LAND CRUISER 1991. These details should still be checked against the original unit before ordering.

Is this alternator new or remanufactured?

It is listed as new. For this listing, part number DXA433U is the main reference point. Listed voltage is 12. Listed output rating is 110. Published fitment references include TOYOTA LAND CRUISER, TOYOTA LAND CRUISER 1990, TOYOTA LAND CRUISER 1991. These details should still be checked against the original unit before ordering.

What voltage and output does it have?

It is a 12V alternator with a 110A power rating. For this listing, part number DXA433U is the main reference point. Listed voltage is 12. Listed output rating is 110. Published fitment references include TOYOTA LAND CRUISER, TOYOTA LAND CRUISER 1990, TOYOTA LAND CRUISER 1991. These details should still be checked against the original unit before ordering.

What type of regulator does it use?

It uses an internal regulator. The note also says the regulator is specially designed to work on active and inactive warning light circuits. For this listing, part number DXA433U is the main reference point. Listed voltage is 12. Listed output rating is 110. Published fitment references include TOYOTA LAND CRUISER, TOYOTA LAND CRUISER 1990, TOYOTA LAND CRUISER 1991. These details should still be checked against the original unit before ordering.

What mounting details should be checked before buying?

Check the single leg mount, 58mm mount leg thickness, 165mm mount centre-to-centre, 10mm pivot hole diameter, and M8 adjusting hole diameter. For this listing, part number DXA433U is the main reference point. Listed voltage is 12. Listed output rating is 110. Published fitment references include TOYOTA LAND CRUISER, TOYOTA LAND CRUISER 1990, TOYOTA LAND CRUISER 1991. These details should still be checked against the original unit before ordering.

Does the listing mention any adaptor information?

Yes. The note says an adaptor is included to suit HXK-30, HXK-22, and HXK-17. For this listing, part number DXA433U is the main reference point. Listed voltage is 12. Listed output rating is 110. Published fitment references include TOYOTA LAND CRUISER, TOYOTA LAND CRUISER 1990, TOYOTA LAND CRUISER 1991. These details should still be checked against the original unit before ordering.
