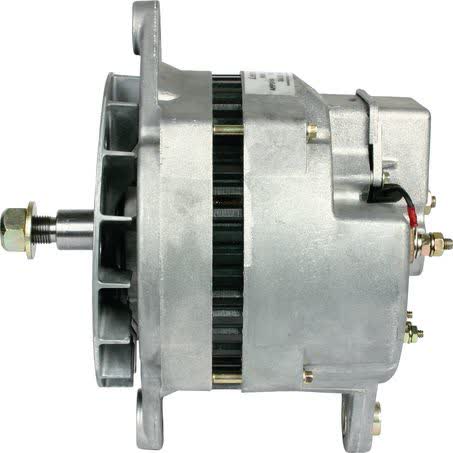

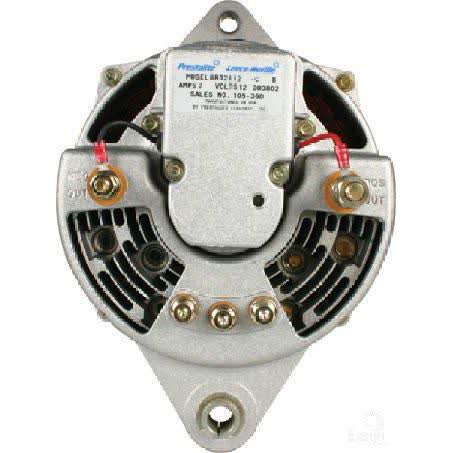

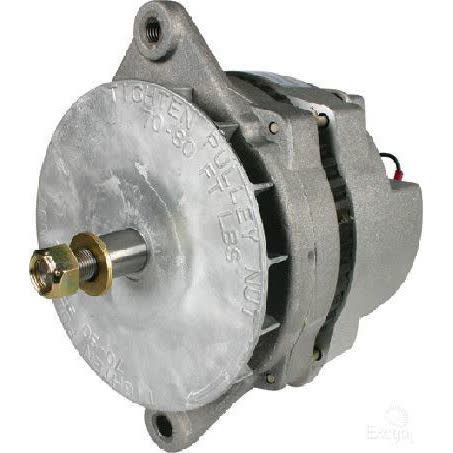

Prestolite Alternator 12V 160A 8LHA 110-555JHO

The Prestolite alternator listed here is a 12V, 160A unit from the 8LHA series, new and sold each under part number 110-555JHO. It is an above ground, self-exciting alternator with an internal regulator, designed for J180 transport and industrial applications.

Key mounting and dimensional details are important with this unit: twin leg alternator mount, 101mm inside mounting legs, 216mm centre-to-centre mounting, 1/2 UNC adjusting hole diameter, 13mm pivot hole diameter, and a 22mm shaft diameter. The pulley section is not applicable, and rotation is clockwise.

This alternator has insulated return set to yes, carries a one year warranty, and is temperature rated to 105deg. C. At 8.82kg, it is a substantial rotating electrical component, so matching the mounting style and electrical setup is just as important as matching the 12V and 160A ratings.

Key Features

• 12V alternator with 160A output
• Prestolite 8LHA series
• Internal regulator
• Self-exciting
• Above ground design
• Twin leg alternator mount

Specifications

• Part No.: 110-555JHO
• Brand: Prestolite
• Product type: Alternator
• New / Reman.: New
• Voltage: 12V
• Power rating: 160A
• Series: 8LHA
• Unit of measure: Each

Fitment and application guide

• To suit J180 transport and industrial applications
• Application families listed include Atlas Copco, BCI, Case, Case IH, Caterpillar, Cummins, DRA Crane, Ford, Freightliner, International, Iveco, John Deere, Kenworth, Mack, Morooka, New Holland, Sterling Trucks, Tigercat, Titan, Vermeer, and Western Star
• Sample listed applications include Atlas Copco ROC D7-RRC, BCI Explorer, Case 9150, Caterpillar 120K, Cummins ISC 8.3, Ford Cargo, Freightliner Century, Iveco Acco, John Deere 644E, Kenworth T-Series, Mack CH, New Holland 8770, Tigercat 630D, Vermeer T755, and Western Star 4900

Application and Buying Notes

Before ordering, confirm the part number 110-555JHO, the 12V electrical system, and the 160A output match the machine or truck you are working on. Mounting details matter on alternators, so check the twin leg mount, 101mm inside mounting legs, and 216mm centre-to-centre measurement against the original unit.

The regulator is internal and the unit is self-exciting, which is relevant when replacing like for like equipment. The alternator is also listed with insulated return, clockwise rotation, and a 22mm shaft diameter, so those details should be compared carefully with the removed part or equipment specification before purchase.

If you are fitting into an industrial, transport, or heavy equipment application, use the application list as a guide only and still verify the actual machine configuration. Even within the same model family, alternator mounts and electrical arrangements can vary, so the safest check is the existing part number plus the physical measurements provided here.

The note against this alternator states it is temperature rated to 105deg. C and intended for J180 transport / industrial applications. That makes it important to confirm the duty cycle and operating environment on the vehicle or machine, especially where heat, load, and accessory equipment place extra demand on the charging system.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number 110-555JHO helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type ALTERNATOR, Unit of Measure EACH, Warranty One Year, Inside Mounting Legs 101mm, Power Rating (Amp) 160, Regulator Type Internal, Series 8LHA, Suits Unit Make Prestolite, Note Temp rated to 105deg. C. Small Frame Loadhandler Self Exciting AC terminal, Mount Cnt to Cnt 216mm.

Additional published details for cross-checking include Insulated Return Yes, Weight 8.82kg, Product Group 1 ROTATING ELECTRICAL, Part No. 110-555JHO, Brand PRESTOLITE, Description Prestolite Alternator 12V 160A, Adjusting Hole Diameter 1/2 UNC, Pivot Hole Diameter 13, Pulley Section Not Applicable, Rotation CW.

Prestolite Alternator 12V 160A. Part number 110-555JHO should be checked first. Listed voltage is 12. Listed output rating is 160. These details form the core reference points used by parts interpreters when confirming the correct replacement.

Mount style is Twin Leg. Regulator type is Internal. Pulley configuration is Not Applicable. Those physical and electrical details should line up with the original unit before the replacement is approved for fitment.

For part number 110-555JHO, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a alternator in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 and output 160 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include ATLAS COPCO ROC D7-RRC, ATLAS COPCO ROC D7-RRC 2018, BCI EXPLORER, CASE 9150, CASE IH, CASE IH 2044. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

The listed warranty is One Year. Warranty terms should be considered alongside correct application and part identification, as warranty does not replace fitment confirmation.

Compatibility note: Confirm compatibility using the part number 110-555JHO, the 12V 160A specification, and the listed mounting and electrical details before ordering. Application references are provided as a guide and should be checked against the existing alternator and machine configuration.

FAQ

What is the part number for this Prestolite alternator?

The part number is 110-555JHO.

Is this alternator new or remanufactured?

It is listed as new.

What voltage and output does it have?

It is a 12V alternator with a 160A power rating.

Does it have an internal regulator?

Yes. The regulator type is internal.

What mounting style does it use?

It uses a twin leg alternator mount, with 101mm inside mounting legs and 216mm centre-to-centre mounting.

What should I check before buying?

Confirm the part number 110-555JHO, the 12V and 160A ratings, the twin leg mount dimensions, clockwise rotation, and the 22mm shaft diameter against the unit being replaced.
