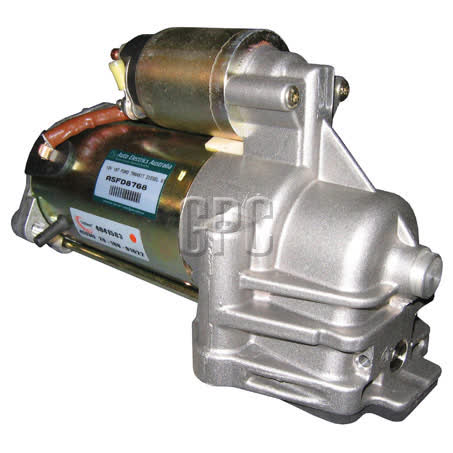

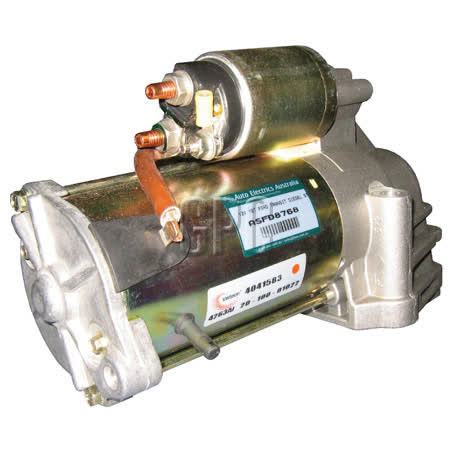

Auto Electrics Aust Starter Motor 12V 19 Tooth CW Autolite Style ASFD8768

This Auto Electrics Aust starter motor is a new 12V unit with a 19 tooth pinion, clockwise rotation, and a 1.8kW power rating. It is listed as Autolite style and suits Autolite applications, with part number ASFD8768 for identification when matching against an existing starter or parts catalogue reference.

Key physical details include an overall length of 256mm, a 55mm pinion diameter, 10mm mount hole diameter, and 89mm mount centres A. The starter uses a 2 hole mount type and weighs 5.14kg, which gives a useful reference point when checking the unit against the replacement part already fitted to the vehicle.

This is a dry clutch starter motor and is noted as a PMGR starter. The product is covered by a one year warranty, however the warranty will be void if the starter is found to be contaminated with metal dust from a worn flywheel or clutch mechanism, so the condition of the mating components matters when diagnosing the failure.

Key Features

• New starter motor
• 12V electrical system
• 19 tooth pinion
• Clockwise rotation
• 1.8kW power rating
• Autolite style

Specifications

• Brand: Auto Electrics Aust
• Product type: Starter Motor
• Part No.: ASFD8768
• Voltage: 12V
• Rotation: CW
• Number of teeth: 19
• Power rating: 1.8kW
• Overall length: 256mm

Fitment guidance

• Supported fitment references include Ford Mondeo and Ford Transit applications.
• Sample application references supplied include Ford Mondeo 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, and 2015.
• A Ford Transit 1994 reference is also listed in the grouped fitment preview.
• Use the part number, tooth count, rotation, and mounting dimensions to confirm the match before ordering.

Application and Buying Notes

When matching this starter motor, the most important checks are the part number ASFD8768, 12V voltage, 19 tooth pinion, clockwise rotation, and 2 hole mount layout. The physical dimensions also matter: 256mm overall length, 55mm pinion diameter, 10mm mount hole diameter, and 89mm mount centres A give a practical comparison point against the starter being replaced.

Because this is listed as an Autolite style starter and suits Autolite unit make, it is best treated as a specification-matched replacement rather than a universal fit part. The listed fitment references point to Ford Mondeo and Ford Transit applications, but the safest approach is to verify the original starter details and mounting arrangement on the vehicle before purchase.

The product is a new dry clutch starter with a 1 year warranty, but the warranty note makes one point very clear: metal dust contamination can void cover if it comes from a worn flywheel or clutch mechanism. If the old starter has failed after a clutch or flywheel issue, inspect and correct the cause before fitting the replacement so the new unit is not exposed to the same problem.

Weight can also be a useful cross-check during replacement work. At 5.14kg, this unit is not a lightweight compact starter, so handling and alignment should be done carefully during installation. Confirm that the pinion diameter of 55mm and the pinion at rest measurement of 44mm suit the application and any surrounding clearance limits.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number ASFD8768 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty One Year, Mount Hole Diameter 10, Overall Length 256mm, Pinion Diameter 55mm, Rotation CW, Voltage 12, Item Type Starter Motor, Starter Mount Type 2 Hole.

Additional published details for cross-checking include Weight 5.14kg, Product Group 2 STARTER MOTORS, Part No. ASFD8768, Brand AUTO ELECTRICS AUST, Description Starter Motor 12V 19Th CW Autolite Style, Mount Centres A 89mm, Number of Teeth 19, Pinion at Rest 44mm, Power Rating 1.8kW, Suits Unit Make Autolite.

Starter Motor 12V 19Th CW Autolite Style. Part number ASFD8768 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number ASFD8768, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include FORD MONDEO, FORD MONDEO 2007, FORD MONDEO 2008, FORD MONDEO 2009. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

Compatibility note: Please confirm fitment by checking part number ASFD8768, the 12V 19 tooth clockwise specification, the 2 hole mount type, and the listed dimensions against the original starter before ordering. The Ford Mondeo and Ford Transit references should be treated as guides only until the exact application details are verified on the vehicle.

FAQ

What part number identifies this starter motor?

The listed part number is ASFD8768.

What electrical specification does this starter use?

It is a 12V starter motor with a 1.8kW power rating.

What rotation and tooth count are listed?

The starter is clockwise rotation and has 19 teeth.

What mounting details are provided?

It has a 2 hole mount type, 10mm mount hole diameter, and 89mm mount centres A.

Which vehicle references are supplied?

The supplied fitment references include Ford Mondeo and Ford Transit, with sample Mondeo years from 2007 to 2015 and a Ford Transit 1994 reference in the grouped preview.

What warranty and condition warning apply?

The starter carries a one year warranty. The warranty is void if the unit is found to be contaminated with metal dust from a worn flywheel or clutch mechanism.
