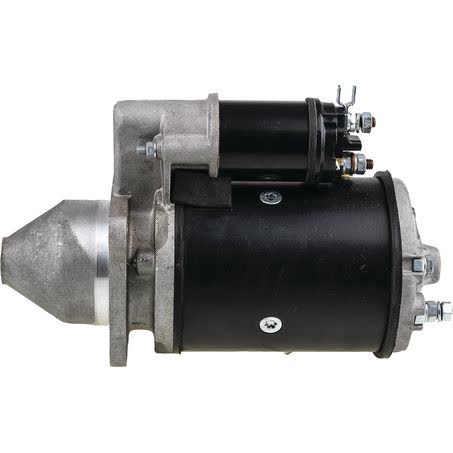

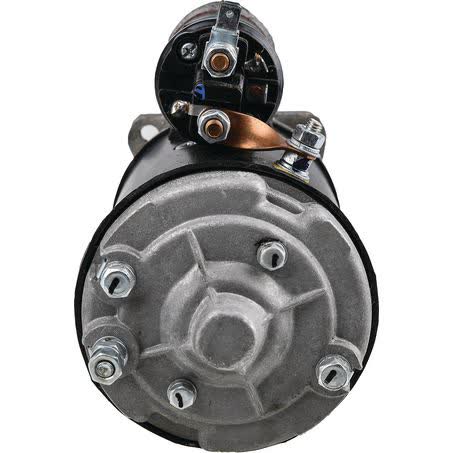

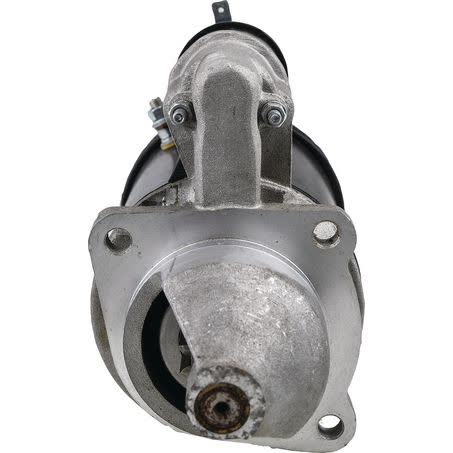

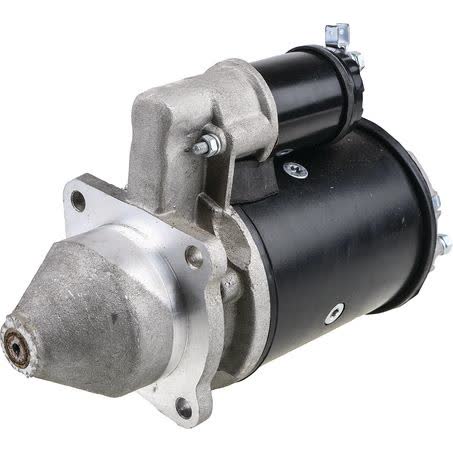

OEX Starter Motor 12V 10T CW Lucas Style LXS9301

The OEX Starter Motor LXS9301 is a new 12V starter motor with clockwise rotation and 10 teeth, specified in a Lucas style with a Perkins mount note. It is rated at 2.8kW and uses a 3 hole starter mount, so it suits applications where those dimensions and mounting details match the existing unit.

Key dimensions include 127mm mount centres A, 90mm mount centres B and 90mm mount centres C, with an 89mm flange diameter and an overall length of 307mm. The pinion measures 40mm in diameter and sits 30mm from rest, which gives useful reference points when comparing against a removed starter before ordering.

This unit is listed as new, weighs 12.26kg, and is backed by a 3yr passenger / 1yr commercial warranty. OEX states its products are sourced from market leading original equipment manufacturers and aftermarket suppliers, and made in ISO certified factories.

Key Features

• 12V starter motor
• 10 tooth pinion
• Clockwise rotation
• 2.8kW power rating
• Lucas style unit
• 3 hole starter mount

Specifications

• Brand: OEX
• Part No.: LXS9301
• Type: Starter motor
• Voltage: 12V
• Rotation: CW
• Number of teeth: 10
• Power rating: 2.8kW
• New / remanufactured: New

Fitment guidance

• Verified fitment families include BITELLI, CARRARO, CASE IH, CATERPILLAR, JCB, KOMATSU, MASSEY FERGUSON, MOSA, MUSTANG, PERKINS, TEREX, TYM, VERMEER and WACKER NEUSON.
• Sample applications listed include BITELLI BB740, CARRARO AGRICUBE, CASE IH CX, CASE IH JX-SERIES, CASE IH MAXXUM, JCB 3CX, KOMATSU WB93R-5, MASSEY FERGUSON 3050, PERKINS 1006-6T-PHASER160T, TEREX PT-110/F, TYM T723, VERMEER BC1250 and WACKER NEUSON DW60.
• CATERPILLAR coverage in the supplied applications includes models such as 236B2, 236B3, 242B3, 246C, 272D, 277D, 279D, 287D, 297, 297D2, 299D, 299D2, 311, 311FLRR, 312F GC, 313FLGC, 422F, 428F, 428F2, 432F2, 434F, 434F2, 444F, 444F2, 906K, 908, 914, CB44, CP44B, CS44B and CW16.
• JCB applications listed include 112, 212S, 215, 3CX, 3CX 2012, 3CX 2013, 426HT, 436, 436HT, 436ZX, 817/820 and 881.
• KOMATSU applications listed include WB91R-5, WB93R-5, WB93R-5 2013, WB93S-5, WB97R-5 and WB97S-5.
• MASSEY FERGUSON applications listed include 3050, 3125, MF 30 D, MF 3655, MF 3680, MF 6170, MF 6180, MF 6270, MF 6280, MF 6290, MF 6480 and MF 685.
• WACKER NEUSON applications listed include DW60, DW60 2014, DW90, DW90 2018, EW100, EW100 2016, ST28, ST28 2018, ST31, ST31 2018, SW28 and SW28 2018.

Application and Buying Notes

Before ordering, compare the part number LXS9301, the 12V electrical setup, and the 10 tooth clockwise pinion arrangement against the starter removed from the machine. The mount pattern is also important here, with 3 hole mounting, 127mm mount centres A, and 90mm centres B and C all needing to line up with the existing application.

The Lucas style and Perkins mount note are useful clues, but they are not a substitute for checking the actual starter fitted to the machine. Overall length is 307mm, flange diameter is 89mm, mount hole diameter is 12mm, and the pinion at rest is 30mm, so these dimensions should be checked where access allows.

This starter is rated at 2.8kW and weighs 12.26kg, which can help when comparing it with the old unit or confirming handling requirements during installation. The warranty is 3yr Passenger and 1yr Commercial, so it is still sensible to confirm compatibility carefully before fitting, especially on older equipment or units that may have had prior replacements.

Where fitment is listed across multiple makes and models, the safest approach is to verify the application details on the machine itself rather than rely on make alone. Matching the supplied measurements, rotation, tooth count and the LXS9301 part number will usually be the most reliable way to confirm the correct starter motor.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number LXS9301 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Mount Centres A 127mm, Mount Centres C 90mm, Number of Teeth 10, Pinion at Rest 30mm, Power Rating 2.8kW, Suits Unit Make Lucas, Note Perkins mount.

Additional published details for cross-checking include Starter Mount Type 3 Hole, Weight 12.26kg, Product Group 1 ROTATING ELECTRICAL, Part No. LXS9301, Brand OEX, Description OEX Starter Motor 12V 10Th CW Lucas Style, Flange Diameter 89mm, Mount Centres B 90mm, Mount Hole Diameter 12, Overall Length 307mm.

OEX Starter Motor 12V 10Th CW Lucas Style. Part number LXS9301 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number LXS9301, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

Compatibility note: Confirm fitment by matching the OEX part number LXS9301, 12V voltage, 10 tooth CW rotation, 3 hole mount, and the listed dimensions against the existing starter and machine application before purchase.

FAQ

Is this starter motor new or remanufactured?

It is listed as new, not remanufactured.

What voltage is the OEX LXS9301 starter motor?

It is a 12V starter motor.

How many teeth does the pinion have?

The pinion has 10 teeth.

What rotation does this starter use?

The starter is clockwise rotation, shown as CW.

What warranty is listed for this product?

The listed warranty is 3yr Passenger and 1yr Commercial.

What should I check before ordering?

Check the LXS9301 part number, 12V rating, 10 tooth CW rotation, 3 hole mount, and the listed dimensions including 127mm mount centres A, 90mm B and C, 89mm flange diameter and 307mm overall length.
