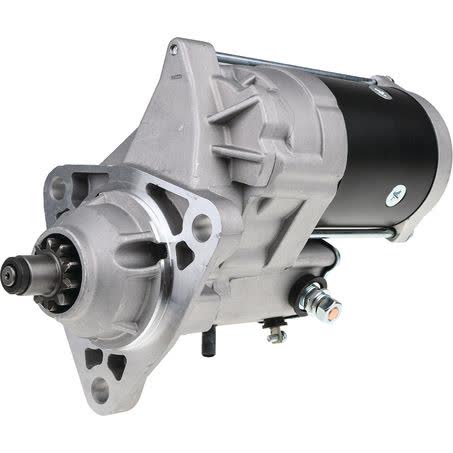

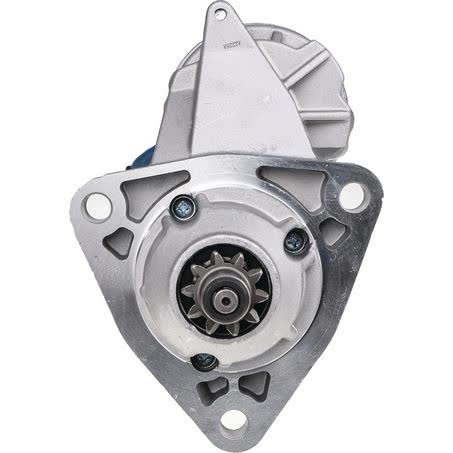

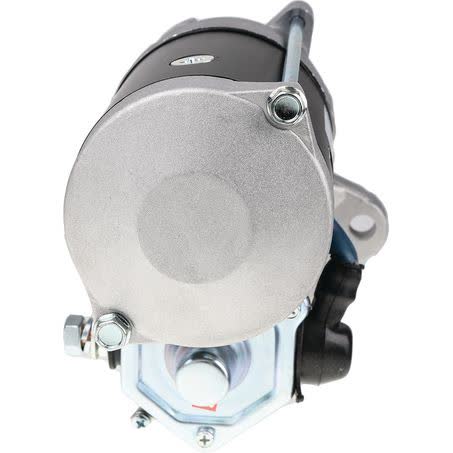

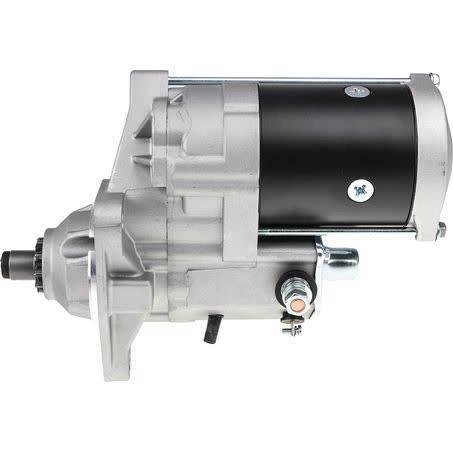

OEX Starter Motor 24V 10TH CW Denso Style DXS568

The OEX Starter Motor DXS568 is a 24V starter motor with 10 teeth, clockwise rotation and a Denso suit unit make. It is a new unit, not remanufactured, and is specified with a 7.5kW power rating for applications that match the listed dimensions and mounting layout.

Key measurements include 127mm mount centres A, B and C, a 92mm flange diameter, 13mm mount hole diameter, 330mm overall length, 39mm pinion diameter and 48mm pinion at rest. The starter mount type is 3 hole, so the physical mounting pattern should be checked carefully against the existing starter before ordering.

OEX lists this unit under part number DXS568 and describes it as a Denso style starter motor. It suits wet or dry clutch applications, and the product carries a 3 year passenger / 1 year commercial warranty. As with any starter, matching the voltage, rotation, teeth count and mounting dimensions is essential before installation.

Key Features

• 24V starter motor
• 10 tooth pinion
• Clockwise rotation
• 7.5kW power rating
• Denso suit unit make
• New unit

Specifications

• Brand: OEX
• Part No.: DXS568
• Type: Starter motor
• Voltage: 24V
• Number of teeth: 10
• Rotation: CW
• Power rating: 7.5kW
• Mount centres A/B/C: 127mm

Known application guidance

• CASE applications are listed, including 1187C, 1688 1994, 2155, 2155 1997, 2166, 2166 1997, 2188, 2188 1997, 2366 and 2388.
• CASE IH applications are listed, including 2555, 2588, 7210, 7220, 7230, 7240, 7250, 8910, 8920, 8930, 8940, 8950, 9210, 9330 and AFX8010.
• Other listed applications include CHAMPION 720-VHP and 720A SERIES, DENNIS EAGLE ELITE 2, DYNAPAC CC501/C, HYUNDAI CONSTRUCTION HL770 and HL770-7 series, SAMSUNG SE240LC-3 and SE280 series, and VOLVO CONSTRUCTION EC240, EC290LC and G720 series.
• Fitment details are provided across multiple makes and models, but the exact application should still be confirmed against the part number and starter dimensions before purchase.

Application and Buying Notes

For a starter motor, the most important checks are voltage, rotation, tooth count and mounting pattern. This unit is 24V, clockwise, 10 tooth, and uses a 3 hole mount with 127mm centres and a 92mm flange diameter, so it is only suitable where those details match the existing component or the vehicle application record.

The 7.5kW rating, 39mm pinion diameter and 48mm pinion at rest give useful reference points when comparing against the removed starter. If the old unit differs in any of those dimensions, or if the wiring or mounting arrangement is different, stop and compare before fitting.

This starter is described as Denso style and suits a Denso unit make. That makes the part number and the physical measurements especially important, because style descriptions alone are not enough to confirm interchangeability on heavy vehicle, construction or agricultural equipment.

The unit is listed as new and carries a 3 year passenger / 1 year commercial warranty. Warranty terms are useful, but they do not replace fitment confirmation, so it is still wise to compare DXS568, the 24V specification, and the mounting dimensions with the existing starter or parts reference for the machine.

If the application is being matched from a machine list, use the exact model designation and, where available, year details as a cross-check only. The product information provided here supports multiple CASE, CASE IH, CHAMPION, DENNIS EAGLE, DYNAPAC, HYUNDAI CONSTRUCTION, SAMSUNG and VOLVO CONSTRUCTION applications, but the final check should always be the part number and measured dimensions.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number DXS568 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Mount Centres A 127mm, Mount Centres C 127mm, Number of Teeth 10, Pinion at Rest 48mm, Power Rating 7.5kW, Suits Unit Make Denso, New / Reman. New.

Additional published details for cross-checking include Wet / Dry Clutch Wet or Dry, Product Group 2 STARTER MOTORS, Part No. DXS568, Brand OEX, Description OEX Starter Motor 24V 10Th CW Denso Style, Flange Diameter 92mm, Mount Centres B 127mm, Mount Hole Diameter 13, Overall Length 330mm.

OEX Starter Motor 24V 10Th CW Denso Style. Part number DXS568 should be checked first. Listed voltage is 24. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number DXS568, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 24 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include CASE 1187C, CASE 1688 1994, CASE 2155, CASE 2155 1997, CHAMPION 720-VHP, CHAMPION 720-VHP 1995. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

Compatibility note: Confirm compatibility by matching part number DXS568, 24V voltage, clockwise rotation, 10 teeth, 3 hole mounting, 127mm mount centres, 92mm flange diameter and the 330mm overall length against the existing starter and vehicle application details before ordering.

FAQ

What is the part number for this starter motor?

The part number is DXS568.

Is this starter motor 12V or 24V?

It is a 24V starter motor.

What rotation does this starter have?

It has clockwise rotation, shown as CW.

How many teeth does the pinion have?

The pinion has 10 teeth.

Is this a new or remanufactured starter?

It is listed as new.

What warranty is listed for this starter motor?

The listed warranty is 3 years for passenger use and 1 year for commercial use.
