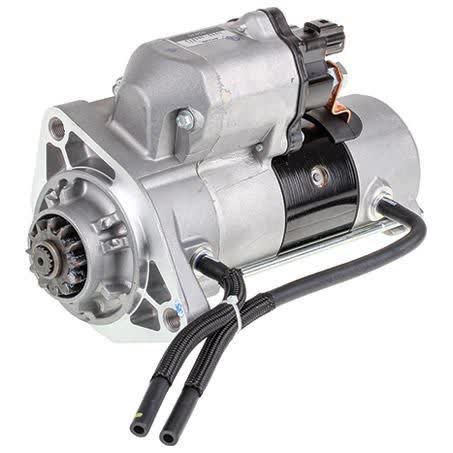

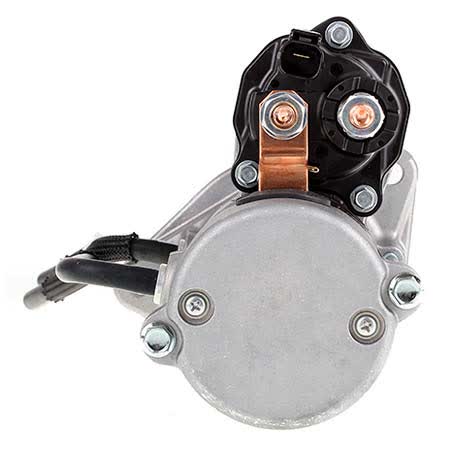

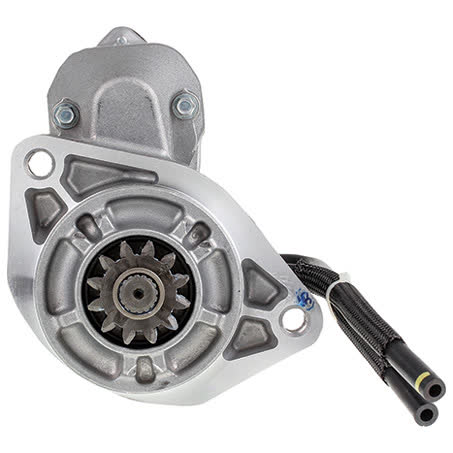

Denso Starter Motor 12V 12 Tooth CW DXS605

The Denso starter motor DXS605 is a new 12V unit with 12 teeth and clockwise rotation. It is listed as a 2.7kW starter motor with a 2-hole mount type, 131mm mount centres, and a 91mm flange diameter, so matching the physical mounting details is just as important as matching the part number.

This starter motor is supplied as a new unit for dry clutch applications and carries a one year warranty. Key dimensions include an overall length of 278mm, a 44mm pinion diameter, a 32mm pinion at rest, and M12x1.25 mount holes, all of which are useful checkpoints when confirming suitability before purchase.

The unit is identified as Denso brand, part number DXS605, with a note for a new vent tube position. Those details matter when comparing replacements, especially where the original starter has the same tooth count, rotation, voltage, and mounting pattern but may differ in small hardware or housing details.

Key Features

• 12V starter motor
• 12 tooth pinion
• Clockwise rotation
• 2.7kW power rating
• New unit with one year warranty
• New vent tube position

Specifications

• Brand: Denso
• Part number: DXS605
• Type: Starter motor
• Voltage: 12V
• Number of teeth: 12
• Rotation: CW
• Power rating: 2.7kW
• Starter mount type: 2 hole

Fitment guidance

• Fitment data supplied includes Toyota Land Cruiser applications.
• Toyota Land Cruiser applications are listed across model years 2007 through 2017 in the provided fitment preview.
• Confirm the part number DXS605, the 12V specification, 12 tooth count, clockwise rotation, and mounting measurements before ordering.

Application and Buying Notes

Before buying, check the old starter against the listed physical measurements: 131mm mount centres, 91mm flange diameter, M12x1.25 mount holes, 278mm overall length, and a 44mm pinion diameter. These dimensions are often the quickest way to avoid ordering the wrong unit when the vehicle application is close but not identical.

The 12V rating, 12 tooth pinion, and clockwise rotation need to line up with the replacement unit you are removing. The starter is also listed as 2.7kW and for dry clutch use, so those details should be compared carefully with the original part and vehicle requirements.

This unit is sold as a new Denso starter motor and the listed part number is DXS605. When the vehicle is already known to take a Denso starter, the part number and mounting details remain the safest checks because similar-looking starters can differ in tooth count, rotation, or flange geometry.

If you are matching a Toyota Land Cruiser application, use the fitment information as a guide only and confirm the exact vehicle details against the starter currently fitted. Year, engine combination, and transmission or clutch arrangement can all matter when selecting a starter motor, so verify the replacement carefully before purchase.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number DXS605 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty One Year, Mount Centres A 131mm, Number of Teeth 12, Pinion at Rest 32mm, Power Rating 2.7kW, Suits Unit Make Denso, Note New vent tube position, New / Reman. New.

Additional published details for cross-checking include Wet / Dry Clutch Dry, Product Group 2 STARTER MOTORS, Part No. DXS605, Brand DENSO, Description Denso Starter Motor 12V 12Th CW, Flange Diameter 91mm, Mount Hole Diameter M12x1.25, Overall Length 278mm, Pinion Diameter 44mm.

Denso Starter Motor 12V 12Th CW. Part number DXS605 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number DXS605, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include TOYOTA LAND CRUISER, TOYOTA LAND CRUISER 2007, TOYOTA LAND CRUISER 2008, TOYOTA LAND CRUISER 2009. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

Compatibility note: Please confirm fitment using part number DXS605, the 12V 12 tooth clockwise specification, and the listed mounting dimensions before ordering. Vehicle fitment should always be checked against the application details and the starter currently fitted to the vehicle.

FAQ

What is the part number for this starter motor?

The part number listed is DXS605. For this listing, part number DXS605 is the main reference point. Listed voltage is 12. Published fitment references include TOYOTA LAND CRUISER, TOYOTA LAND CRUISER 2007, TOYOTA LAND CRUISER 2008. These details should still be checked against the original unit before ordering.

What voltage and rotation does it have?

It is a 12V starter motor with clockwise rotation. For this listing, part number DXS605 is the main reference point. Listed voltage is 12. Published fitment references include TOYOTA LAND CRUISER, TOYOTA LAND CRUISER 2007, TOYOTA LAND CRUISER 2008. These details should still be checked against the original unit before ordering.

How many teeth does the pinion have?

The starter motor has 12 teeth. For this listing, part number DXS605 is the main reference point. Listed voltage is 12. Published fitment references include TOYOTA LAND CRUISER, TOYOTA LAND CRUISER 2007, TOYOTA LAND CRUISER 2008. These details should still be checked against the original unit before ordering.

Is this a new or remanufactured unit?

It is listed as a new starter motor. For this listing, part number DXS605 is the main reference point. Listed voltage is 12. Published fitment references include TOYOTA LAND CRUISER, TOYOTA LAND CRUISER 2007, TOYOTA LAND CRUISER 2008. These details should still be checked against the original unit before ordering.

What mounting details are provided?

The listed mounting details are 2 hole starter mount type, 131mm mount centres, 91mm flange diameter, and M12x1.25 mount holes. For this listing, part number DXS605 is the main reference point. Listed voltage is 12. Published fitment references include TOYOTA LAND CRUISER, TOYOTA LAND CRUISER 2007, TOYOTA LAND CRUISER 2008. These details should still be checked against the original unit before ordering.

What vehicle fitment is shown?

The provided fitment preview includes Toyota Land Cruiser applications across model years 2007 to 2017, but the exact match should still be confirmed against the part number and measurements. For this listing, part number DXS605 is the main reference point. Listed voltage is 12. Published fitment references include TOYOTA LAND CRUISER, TOYOTA LAND CRUISER 2007, TOYOTA LAND CRUISER 2008. These details should still be checked against the original unit before ordering.
