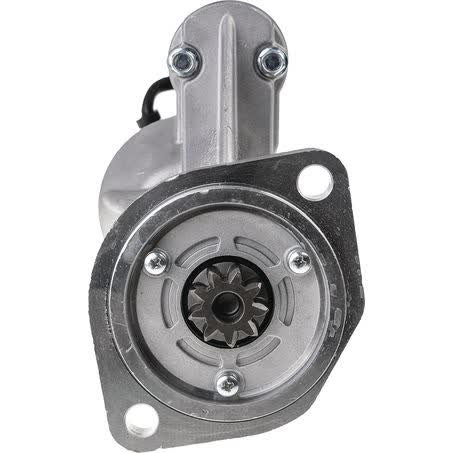

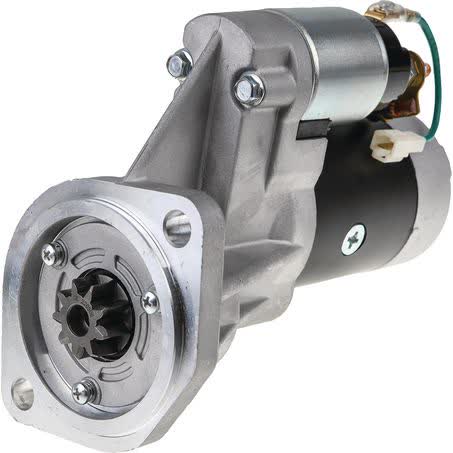

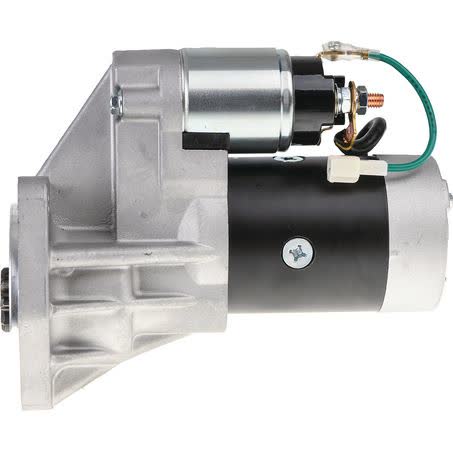

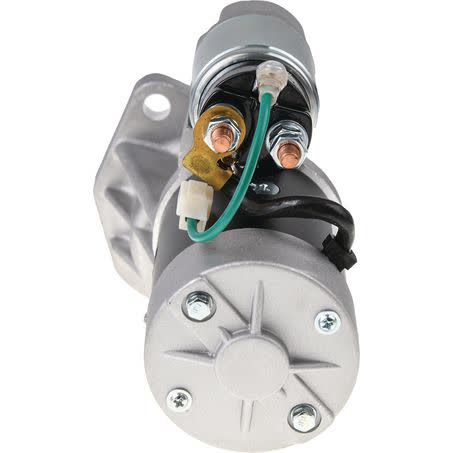

OEX Starter Motor 12V 9 Tooth CW Hitachi Style HXS053

The OEX starter motor listed here is a 12V, clockwise rotation unit with 9 teeth and part number HXS053. It is described as a Hitachi style starter motor and is supplied new, not remanufactured, with a 2 hole starter mount and a 95mm flange diameter.

Key physical details include 120mm mount centres, 13mm mount hole diameter, 230mm overall length, 32mm pinion diameter and a 10mm pinion at rest. The unit weighs 5.3kg and is rated at 2.3kW, so it is important to compare both the electrical and mounting dimensions before ordering.

This starter motor is listed for dry clutch applications and suits a Hitachi unit make. The part information also notes that HXS053 has a flat section on the flange mount and cannot be replaced with HXS023, so the exact flange and part number should be checked carefully before purchase.

Key Features

• 12V starter motor
• 9 tooth pinion
• Clockwise rotation
• 2.3kW power rating
• New unit
• 2 hole starter mount

Specifications

• Brand: OEX
• Part No.: HXS053
• Product type: Starter motor
• Voltage: 12V
• Rotation: CW
• Number of teeth: 9
• Power rating: 2.3kW
• Starter mount type: 2 hole

Verified fitment applications

• Holden Colorado
• Holden Jackaroo
• Holden Jackaroo / Monterey
• Holden Rodeo
• Isuzu D-Max
• Isuzu Elf
• Isuzu MU
• Isuzu MU-X

Application and Buying Notes

When matching a starter motor, the safest checks are the part number, mounting pattern and rotation. For this unit, the key identifiers are HXS053, 12V, 9 teeth, CW rotation, 2 hole mounting and 120mm mount centres. Those details need to line up with the existing starter or the vehicle application before anything is fitted.

The physical dimensions matter just as much as the electrical rating. This starter is 230mm overall, with a 95mm flange diameter, 13mm mount holes, a 32mm pinion diameter and 10mm pinion at rest. If the flange shape differs, fitment can change even when the starter looks similar, and the note against HXS023 should be taken seriously.

This unit is listed for dry clutch use and weighs 5.3kg. It is supplied new and carries a 3 year passenger / 1 year commercial warranty, but warranty cover does not replace the need to confirm the correct application. If the existing starter is a Hitachi style unit, compare the mounting face, flange profile and tooth count before ordering.

Fitment data provided with this part includes Holden Colorado, Holden Jackaroo, Holden Jackaroo / Monterey, Holden Rodeo, Isuzu D-Max, Isuzu Elf, Isuzu MU, Isuzu MU-X, Isuzu N, Isuzu Wizard, Mustang 2060, Mustang 552 and Mustang 960. Where there are multiple model names and year ranges in the vehicle listing, the exact engine and starter arrangement still need to be checked against the existing unit and the part number.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number HXS053 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Mount Centres A 120mm, Number of Teeth 9, Pinion at Rest 10mm, Power Rating 2.3kW, Suits Unit Make Hitachi, Note HXS053 has flat section on flange mount and cannot be replaced with HXS023, Starter Mount Type 2 Hole.

Additional published details for cross-checking include Weight 5.3kg, Product Group 1 ROTATING ELECTRICAL, Part No. HXS053, Brand OEX, Description OEX Starter Motor 12V 9Th CW Hitachi Style, Flange Diameter 95mm, Mount Hole Diameter 13, Overall Length 230mm, Pinion Diameter 32mm, Rotation CW.

OEX Starter Motor 12V 9Th CW Hitachi Style. Part number HXS053 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number HXS053, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include HOLDEN COLORADO, HOLDEN COLORADO 2008, HOLDEN COLORADO 2009, HOLDEN COLORADO 2010, ISUZU D-MAX, ISUZU D-MAX 2007. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

Compatibility note: Confirm compatibility by checking the existing part number HXS053, the 12V CW 9 tooth configuration, the 2 hole mounting pattern, and the flange details including the flat section noted for HXS053. Do not rely on appearance alone; compare the mounting dimensions and vehicle application before purchase.

FAQ

What is the part number for this starter motor?

The part number is HXS053. For this listing, part number HXS053 is the main reference point. Listed voltage is 12. Published fitment references include HOLDEN COLORADO, HOLDEN COLORADO 2008, HOLDEN COLORADO 2009. These details should still be checked against the original unit before ordering.

Is this starter motor 12 volt?

Yes. The listed voltage is 12V. For this listing, part number HXS053 is the main reference point. Listed voltage is 12. Published fitment references include HOLDEN COLORADO, HOLDEN COLORADO 2008, HOLDEN COLORADO 2009. These details should still be checked against the original unit before ordering.

What rotation does this starter have?

It is clockwise rotation, shown as CW. For this listing, part number HXS053 is the main reference point. Listed voltage is 12. Published fitment references include HOLDEN COLORADO, HOLDEN COLORADO 2008, HOLDEN COLORADO 2009. These details should still be checked against the original unit before ordering.

How many teeth does the pinion have?

The starter is listed with 9 teeth. For this listing, part number HXS053 is the main reference point. Listed voltage is 12. Published fitment references include HOLDEN COLORADO, HOLDEN COLORADO 2008, HOLDEN COLORADO 2009. These details should still be checked against the original unit before ordering.

Is this a new or remanufactured unit?

It is listed as a new starter motor. For this listing, part number HXS053 is the main reference point. Listed voltage is 12. Published fitment references include HOLDEN COLORADO, HOLDEN COLORADO 2008, HOLDEN COLORADO 2009. These details should still be checked against the original unit before ordering.

What vehicles are listed in the fitment information?

The fitment information includes Holden Colorado, Holden Jackaroo, Holden Jackaroo / Monterey, Holden Rodeo, Isuzu D-Max, Isuzu Elf, Isuzu MU, Isuzu MU-X, Isuzu N, Isuzu Wizard, Mustang 2060, Mustang 552 and Mustang 960. Final confirmation should still be made against the part number and mounting details.
