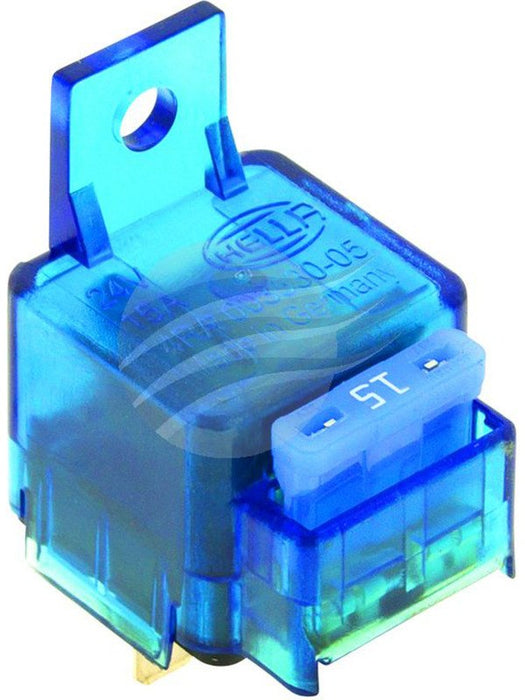

Hella Mini Relay With Fuse 24V 80Ma 4 Pin 15Amp Blade Fuse 3077
Hella Mini Relay With Fuse 24V 80Ma 4 Pin 15Amp Blade Fuse
The Hella Mini Relay With Fuse is a reliable component designed for automotive applications, providing efficient power management for various electrical systems. Featuring a 24V rating and a 15Amp blade fuse, this product is ideal for tradies, DIY enthusiasts, and fleet operators looking for dependable performance in their vehicles. Hella, a trusted name in automotive lighting and electrical solutions, ensures that this relay meets stringent quality standards for safety and reliability.
Key features
- Compact design for easy installation in tight spaces.
- Integrated 15Amp blade fuse for added circuit protection.
- 4-pin configuration suitable for various applications.
- Rated for 24V systems, perfect for heavy-duty vehicles.
- Manufactured by Hella, known for high-quality automotive components.
Technical details
- Voltage: 24V
- Current Rating: 15Amps
- Fuse Type: Blade fuse
- Pin Configuration: 4 pins
- Current Draw: 80mA
Applications / fitment
This mini relay is typically used in various automotive electrical systems to control power to lights, motors, and other accessories.
- Passenger vehicles
- 4x4 vehicles
- Commercial trucks and vans
- Heavy machinery
- Marine applications
Why buy from Mick’s Gone Bush?
- Trusted Australian business focused on reliable power, auto-electrical, and service parts.
- Stock sourced from reputable distributors and brands.
- Practical support for trade, off-grid, and fleet customers.
- Clear shipping, warranty, and customer service.
Frequently asked questions
How do I install the Hella Mini Relay?
Installation involves connecting the relay pins to the appropriate power and accessory wires. Ensure to follow the wiring diagram for your specific application.
Is this relay suitable for 12V systems?
No, this relay is specifically rated for 24V systems and should not be used with 12V applications.
What type of fuse does it use?
The Hella Mini Relay comes with a 15Amp blade fuse that provides circuit protection for your electrical systems.
Can this relay be used in marine applications?
Yes, the Hella Mini Relay is suitable for marine applications, provided it is installed correctly to protect against moisture and corrosion.
What is the current draw of this relay?
The relay has a current draw of 80mA when activated.
