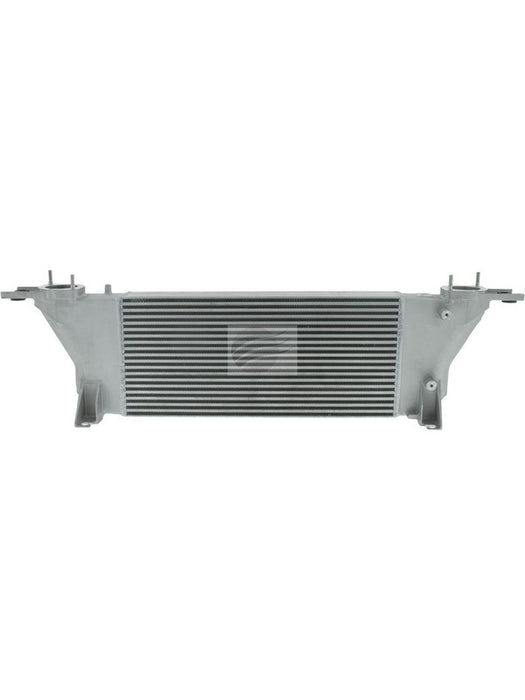

Jayrad Cac Navara Stx 550 V6 Diesel 11-On 16 Pathfinder R51 Plate & IC6014

Overview

The Jayrad Charge Air Cooler (CAC) is a high-performance cooling component designed for diesel engines in heavy-duty vehicles like the Nissan Navara STX 550 V6 Diesel (2011 onwards) and Pathfinder R51. Primarily used in automotive and industrial applications, such as construction, mining, and off-road transport, this equipment ensures optimal engine efficiency by cooling compressed air intake, reducing the risk of overheating in demanding operational environments. As a product from Jayrad, a trusted Australian specialist in engine radiators, it adheres to rigorous quality standards, drawing on decades of expertise to support reliable performance in industrial settings.

Technical Specifications

This CAC features a robust aluminum construction for superior heat dissipation and durability. It measures approximately 600mm x 300mm x 100mm, with a core design that supports airflow rates up to 500 CFM, making it ideal for V6 diesel engines. Operating parameters include a temperature range of -10°C to 100°C and compatibility with standard 12V systems. Engineered for precision, it includes high-efficiency fins and tubes that enhance cooling by up to 20%, ensuring consistent performance under heavy loads in industrial operations.

Safety & Compliance

Built-in safety features include pressure relief valves and corrosion-resistant coatings to prevent leaks and failures. The unit complies with ISO 9001 quality standards and meets Australian automotive regulations, ensuring it withstands rigorous testing for reliability. Additionally, it incorporates thermal protection to safeguard against extreme conditions, promoting safe operation in industrial environments and minimizing risks to operators.

Installation & Maintenance

Installation requires professional mechanics, with a mounting kit included for secure fitting in compatible vehicles. Recommended operating conditions include ambient temperatures between -5°C and 90°C, with regular checks for debris buildup. Maintenance involves inspecting for leaks every 6 months, cleaning the core with a mild detergent, and ensuring proper coolant levels to extend lifespan—typically 5-7 years with routine care.

Warranty & Support

Jayrad offers a 2-year limited warranty covering manufacturing defects, subject to normal usage and proper installation. Service conditions exclude damage from misuse or accidents, but customers can access after-sales support through authorized dealers, including technical advice and replacement parts for seamless assistance.

Frequently Asked Questions

• Q1: Is this Charge Air Cooler compatible with my Nissan Navara?
  A: Yes, it's designed for Nissan Navara STX 550 V6 Diesel models from 2011 onwards and Pathfinder R51, ensuring a perfect fit for enhanced performance.
• Q2: How often should I maintain this unit?
  A: Perform visual inspections every 6 months and clean the core annually to maintain optimal cooling efficiency and prevent potential issues.
• Q3: What does the warranty cover?
  A: The 2-year warranty covers defects in materials and workmanship, but requires proof of proper installation and excludes wear from normal use or accidents.
