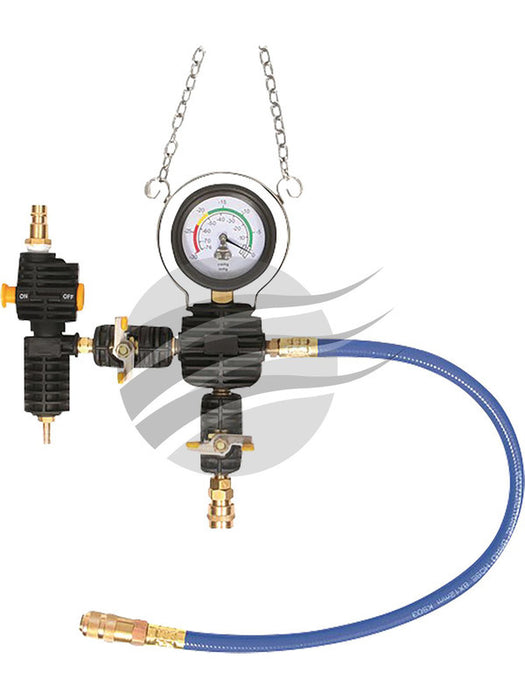

Jayrad Vacuum Filler & Gauge JPTA-VF

Overview

The Jayrad Vacuum Filler & Gauge JPTA-VF is a reliable vacuum filling system designed for automotive air conditioning, refrigeration, and HVAC maintenance. This equipment excels in evacuating air and moisture from systems to ensure optimal performance, commonly used in professional workshops and industrial environments. With its robust design and precise operation, it supports efficient refrigerant charging, adhering to industry best practices for safety and accuracy, drawing from established expertise in automotive tools.

Technical Specifications

This device features a high-capacity vacuum pump delivering up to 5 CFM for rapid evacuation, with a built-in analog gauge offering readings from 0 to 30 inches of mercury. Constructed from durable aluminum alloy, it operates on a 12V DC power source and includes adjustable flow control for precise applications. Engineering highlights include a compact design weighing 4.5 kg, dimensions of 30cm x 20cm x 15cm, and compatibility with standard hoses, making it ideal for tasks requiring consistent vacuum levels up to 29.9 inches Hg.

Safety & Compliance

The Jayrad Vacuum Filler & Gauge JPTA-VF incorporates essential safety features like automatic shut-off to prevent over-vacuuming, thermal overload protection, and a secure hose connection to minimize leaks. It meets rigorous industry standards, including ISO 9001 certification and compliance with RoHS directives, ensuring reliable performance in controlled environments and reducing risks associated with pressure variations.

Installation & Maintenance

Installation is straightforward, requiring only a stable power source and connection to the target system via standard fittings; it should be mounted on a flat surface for stability. Recommended operating conditions include temperatures between 0°C and 40°C with low humidity to maintain efficiency. For maintenance, regularly inspect hoses for wear, clean the gauge with a soft cloth, and perform annual calibration to ensure longevity and optimal function.

Warranty & Support

The manufacturer offers a 1-year limited warranty covering defects in materials and workmanship, with conditions excluding misuse or improper installation. After-sales support includes access to online resources, technical manuals, and responsive customer service for troubleshooting, ensuring users receive prompt assistance for any issues.

Frequently Asked Questions

• What is the primary use of the Jayrad Vacuum Filler & Gauge JPTA-VF?

  It is primarily used for evacuating air and moisture from automotive AC and refrigeration systems before refrigerant charging, ensuring efficient and contaminant-free operation.

• Is this equipment compatible with common refrigerants like R134a?

  Yes, it is designed to work with standard refrigerants such as R134a, but always verify system requirements for best results.

• How often should maintenance be performed on the gauge?

  Regular maintenance, including cleaning and calibration, is recommended every 6 months or after 50 hours of use to maintain accuracy and extend the equipment's lifespan.
