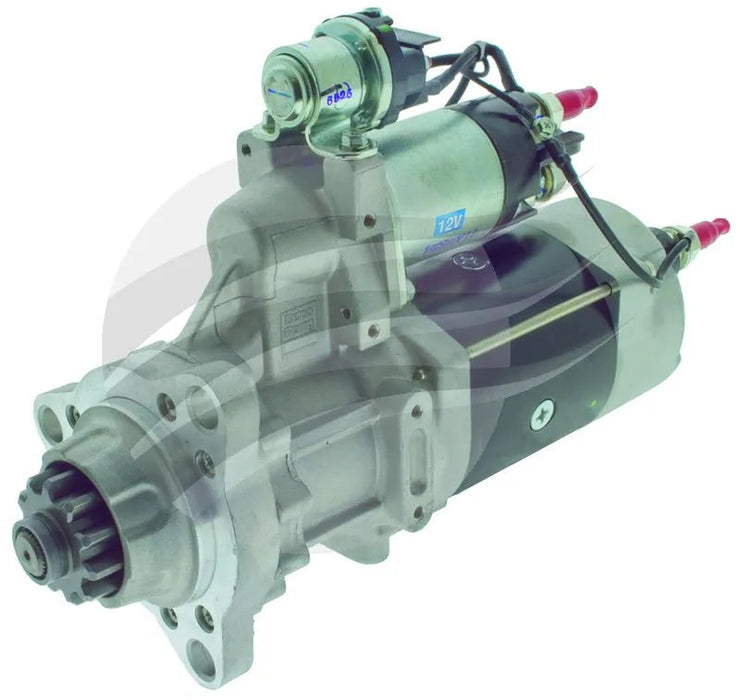

Remy 12V 7.3KW 11T CW 39MT External Index Starter Motor 8200308

This Remy 39MT starter motor is a 12V, 7.3kW unit with an 11-tooth pinion and clockwise rotation. It carries part number 8200308 and is noted as equivalent to Delco Remy 8200750 44MT, so those identifiers are the first points to check against the original starter before ordering.

The physical dimensions are as important as the electrical rating on a unit like this. Key measurements include a 56mm pinion diameter, 48mm pinion at rest, 92mm flange diameter, 17mm mount hole diameter, 127 x 127 x 127mm mount hole centre spacing, and 425mm overall length.

This starter is listed with an insulated ground, wet clutch oil seal arrangement, and an external housing index. For replacement work, the 12V supply, 7.3kW output, 39MT series, 11T pinion, and CW rotation all need to match the application as closely as the mounting pattern and physical clearance.

Key Features

• 12V starter motor
• 7.3kW output
• 11-tooth pinion
• Clockwise rotation
• 39MT series
• External housing index

Specifications

• Part number: 8200308
• Equivalent reference: Delco Remy 8200750 44MT
• Voltage: 12V
• Kilowatt: 7.3kW
• Number of teeth: 11T
• Rotation: CW
• Pinion diameter: 56mm
• Pinion at rest: 48mm

Application and Buying Notes

The safest way to select this starter is to begin with the part number. The listed identifier is 8200308, and the unit is also referenced as equivalent to Delco Remy 8200750 44MT. If the removed starter carries a different number, series, or housing index, it should be checked carefully before assuming interchange.

Match the drive and electrical details against the old unit as well as the vehicle. This starter is 12V with a 7.3kW rating, 11 teeth, clockwise rotation, and an external housing index. Those details are service-critical because a starter can look similar from the outside while still differing in pinion count, rotation, or mounting configuration.

Physical measurements are particularly important where access is tight. The published dimensions are 425mm overall length, 92mm flange diameter, 17mm mount hole diameter, 56mm pinion diameter, 48mm pinion at rest, and 127 x 127 x 127mm mount hole centre spacing. If the bellhousing area, mounting face, or surrounding components leave little room, those figures should be checked before the order is confirmed.

The listed 39MT series and insulated ground help narrow the selection, but they do not replace a direct comparison with the original starter. In workshop and fleet situations, the quickest way to avoid a wrong part is to compare the old unit side by side with the published part number, mounting pattern, ground style, and overall length.

The oil seal arrangement is listed as wet clutch, so it is sensible to confirm that the replacement unit matches the original application and installation environment. Where the starter sits in a confined or exposed location, the housing style, flange size, and pinion position at rest can matter just as much as the voltage rating.

If you are buying for a repair or scheduled replacement, use the verified details as your checklist: 8200308, 12V, 7.3kW, 11T, CW, 39MT, external index, and the published mounting measurements. That approach gives a better match than relying on appearance alone, especially when the original starter has been removed or the vehicle has been altered over time.

Where no application list is available, compare the old starter directly against the listed dimensions and identifiers before fitting. The most useful checkpoints are the part number, series, rotation, tooth count, flange diameter, mount hole diameter, centre spacing, and overall length. These are the details most likely to determine whether the unit will install correctly and operate as intended.

If you are unsure, a parts counter comparison is usually the best next step. Bring the removed starter, record the part number if visible, and verify the 12V rating, 7.3kW output, 11-tooth pinion, and the external housing index before approving supply. That process reduces the chance of delays, extra freight, and workshop downtime.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

Relevant published details for this unit include Voltage 12V, Kilowatt 7.3kW, Number of Teeth 11T, Pinion Diameter 56mm, Rotation CW, Pinion at Rest 48mm, Flange Diameter 92mm, Mount Hole Center to Center 127 x 127 x 127mm, Mount Hole Diameter 17mm, Overall Length 425mm.

Additional published details for cross-checking include Oil Sealed WET CLUTCH, Series 39MT, Ground INSULATED, Housing Index EXTERNAL, Specifications Part number: 8200308 Voltage, 12V Kilowatt, 7.3kW Number of Teeth, 11T Pinion Diameter, 56mm Rotation, CW Pinion at Rest.

Compatibility note: Confirm fitment by matching part number 8200308, the equivalent reference Delco Remy 8200750 44MT, and the listed measurements, rotation, tooth count, series, housing index, and mounting dimensions against the vehicle’s original starter motor.

FAQ

What is the part number for this starter motor?

The listed part number is 8200308. It is also referenced as equivalent to Delco Remy 8200750 44MT. Those identifiers should be checked against the original starter before ordering.

What voltage does this starter use?

It is a 12V starter motor. The 12V rating should be matched to the vehicle’s starting system and to the original unit being replaced.

What are the main drive details?

The starter is listed with a 7.3kW output, an 11-tooth pinion, and clockwise rotation. Those three details are important to confirm against the original starter.

What mounting and size details are provided?

Published measurements include 425mm overall length, 92mm flange diameter, 17mm mount hole diameter, 127 x 127 x 127mm mount hole centre spacing, 56mm pinion diameter, and 48mm pinion at rest.

What series and housing details are listed?

This unit is a 39MT series starter with an external housing index, insulated ground, and wet clutch oil seal arrangement.

What should I check before buying this starter?

Check the part number 8200308, the equivalent reference Delco Remy 8200750 44MT, the 12V and 7.3kW rating, the 11T clockwise drive, and the published mounting dimensions against the original starter motor.
